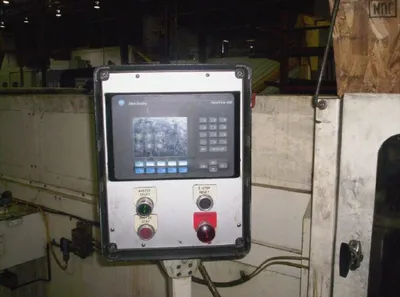

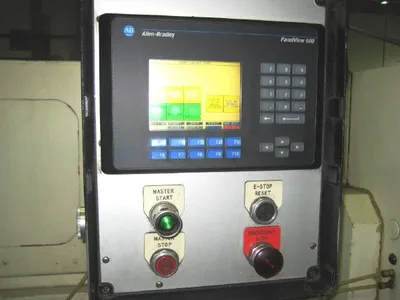

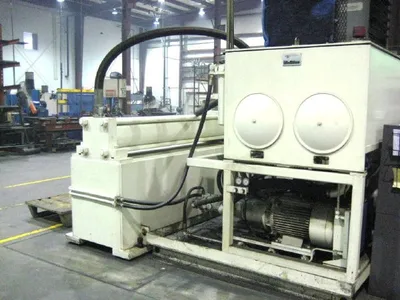

40 TON AMERICAN “H40-90” CNC HYDRAULIC HORIZONTAL BROACH w/ALLEN BRADLE PLC - 90” STROKE - RETREIVER - PULLER - OUTER SUPPORT - 50 HP HYDRAULIC MOTOR

Tonnage Capacity, Normal 40 TON

Tonnage Capacity, Maximum 47 TON

Stroke Length, Maximum 90"

Face Plate Width 28"

Face Plate Bore 12"

Clearance Between Ways 14"

Broaching Speeds Variable, Range 0 to 30 FPM

Broach Return Speed, Maximum 60 FPM

Work Height 37"

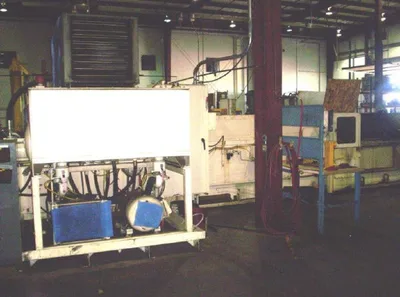

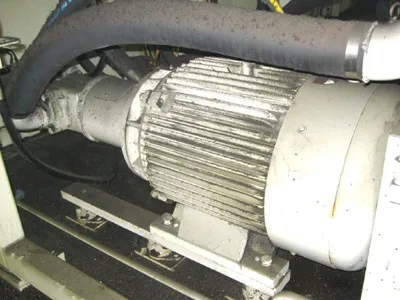

Hydraulic Motor, Horsepower 50 HP

Floor Space Required, L x D 31' x 6'

Overall Height 5'2"

Weight, Approximately 22700 LBS

NOTE: REPLACEMENT PRICE IS OVER $400,000.00 WITH

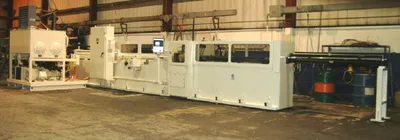

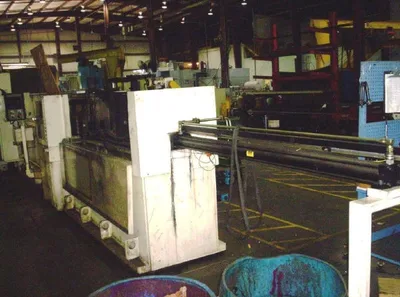

TOOLING. FIRST PHOTO IS ORIGINAL FACTORY
PHOTO OF ACTUAL MACHINE.

PRICE: F.O.B. OUR WAREHOUSE
Tonnage capacity, normal: 40 TON
Tonnage capacity, maximum: 47 TON
Stroke length, maximum: 90"
Face plate width: 28"
Face plate bore: 12"
Clearance between ways: 14"
Broaching speeds variable, range: 0 TO 30 FPM
Broach return speed, maximum: 60 FPM
Work height: 37"
Hydraulic motor, horsepower: 50 HP
Floor space required, l x d: 31' X 6'
Overall height: 5'2"
Weight, approximately: 22700 LBS
