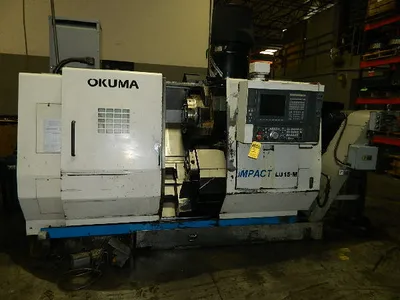

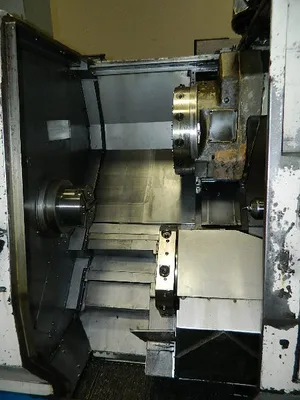

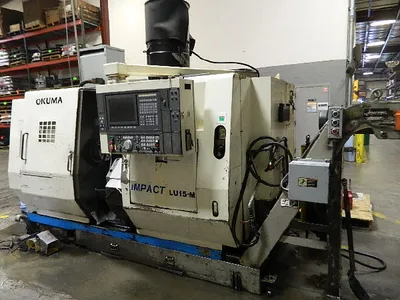

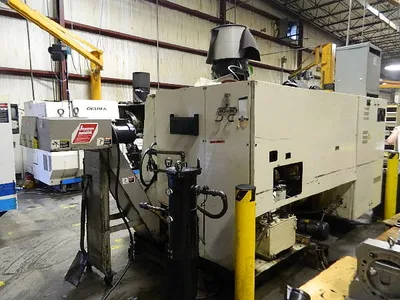

21” X 24” OKUMA "LU-15M IMPACT" 5-AXIS TWIN-TURRET CNC TURNING CENTER w/LIVE MILLING
Have one to sell?
$19,000.00 USD
ConditionUsed
1 available
#LU-15M OKUMA "IMPACT" 5-AXIS TWIN-TURRET CNC TURNING CENTER W/LIVE MILLING
NEW 1997, SERIAL NO. 0152, MODEL LU-15M
8" 3-JAW CHUCK

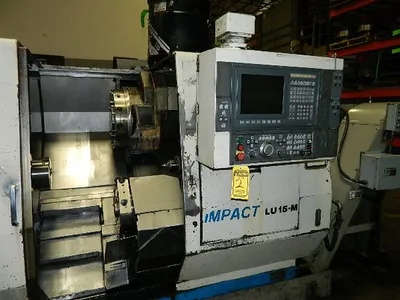

OKUMA OSP7000L CNC CONTROL

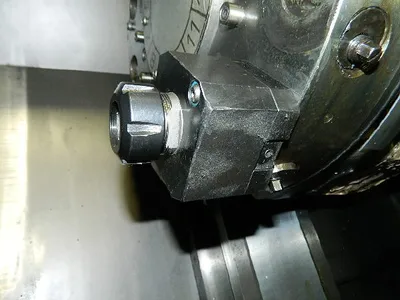

LIVE MILLING CAPABILITIES
12 POSITION UPPER & 8 POSITION LOWER TURRET
(DOES NOT HAVE THE CHIP CONVEYOR) - COOLANT TANK
Tailstock
Swing Over Bed 20.87"
Swing Over Carriage 14.96"
Swing Over Cross Slide 12.99"
Maximum Turning Diameter 10.62"
Maximum Turning Length 23.62"
X-Axis Travel (Upper/Lower) 10.24"/5.51"
Z-Axis Travel (Upper/Lower) 25.20"/24.21"
Headstock & Main Spdl Nose JIS-A2-8
Spindle Bore Diameter 3.15"
Spindle Speed Range to 4500 RPM
X-Axis Rapid Traverse Speed 590 IPM
Z-Axis Rapid Traverse Speed 787 IPM
X-Axis Cut Fdrates (IPR) 0.0001"-40000
Z-Axis Cut Fdrates (IPR) 0.0001"-40000
Motor, Horsepower 29.5 HP
Floor Space Req. 156" x 83" x 76"
Weight Approximately 12000 LBS
PRICE: F.O.B. OUR WAREHOUSE
Swing over bed: 20.87"
Swing over carriage: 14.96"
Swing over cross slide: 12.99"
Maximum turning length: 23.62"
X-axis travel (upper/lower): 10.24"/5.51"
Z-axis travel (upper/lower): 25.20"/24.21"
Headstock & main spdl nose: JIS-A2-8
Spindle bore diameter: 3.15"
Spindle speed range: TO 4500 RPM
X-axis rapid traverse speed: 590 IPM
Z-axis rapid traverse speed: 787 IPM
Motor, horsepower: 29.5 HP
Floor space req.: 156" X 83" X 76"
Weight approximately: 12000 LBS
