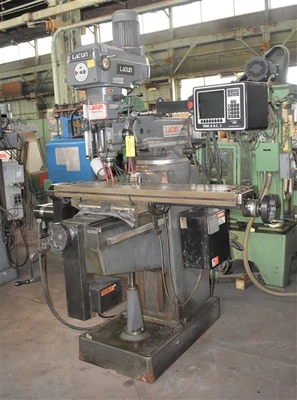

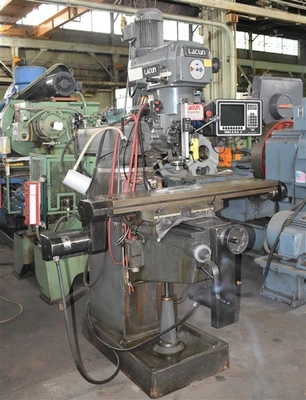

3 HP LAGUN/REPUBLIC "FTV-2 PROTO-TRAK" CNC VERTICAL MILL w/SWI CNC CONTROL - POWER TABLE FEED
Have one to sell?
$6,950.00 USD
ConditionUsed
1 available
#FTV-2 LAGUN/REPUBLIC "PROTO-TRAK" CNC VERTICAL MILL
New 1998, Model FTV-2

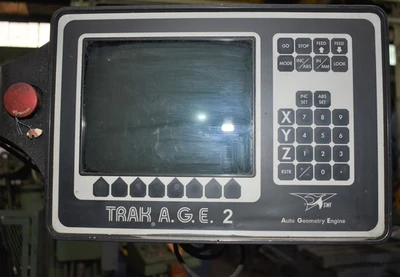

SWI Trak A.G.E. 2 CNC Controls
3 HP Variable Speed Spindle Motor
Power Feed To Table
Power Down-Feed To Quill
One Shot Lube System
Table Dimensions (Overall), W x L 10" x 50"
Table Longitudinal Travel (X-Axis) 30"
Saddle Cross Travel (Y-Axis) 16"
Knee Vertical Travel (Z-Axis) 16"
Quill Travel 5"
Ram Travel 22.19"
Spindle-Center To Body, Minimum 5.31"
Spindle-Center To Body, Maximum 30.5"
Spindle-Nose To Table, Maximum 18.5"
Quill, Diameter 3.375"
Spindle Speeds, Range 55 to 4250 RPM
Spindle Motor, Horsepower/RPM 3 HP/1730 RPM
Electrical System 220-440/3/60
Floor Space Required, W x D 5'3" x 4'11"
Overall Height 5'10"
Weight, Approximately 2850 LBS
PRICE: F.O.B. OUR WAREHOUSE
Table dimensions (overall), w x l: 10" X 50"
Table longitudinal travel (x-axis): 30"
Saddle cross travel (y-axis): 16"
Knee vertical travel (z-axis): 16"
Quill travel: 5"
Ram travel: 22.19"
Spindle-center to body, minimum: 5.31"
Spindle-center to body, maximum: 30.5"
Spindle-nose to table, maximum: 18.5"
Quill, diameter: 3.375"
Spindle speeds, range: 55 TO 4250 RPM
Spindle motor, horsepower/rpm: 3 HP/1730 RPM
Electrical system: 220-440/3/60
Floor space required, w x d: 5'3" X 4'11"
Overall height: 5'10"
Weight, approximately: 2850 LBS
