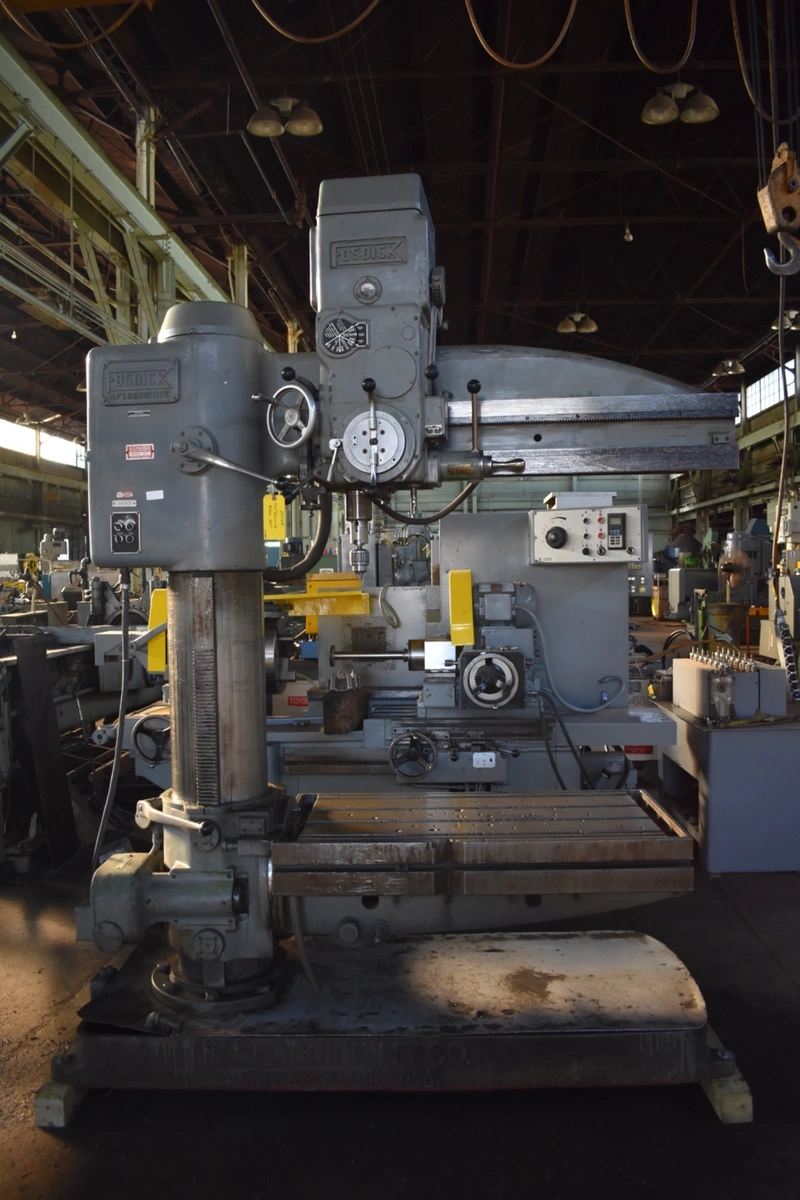

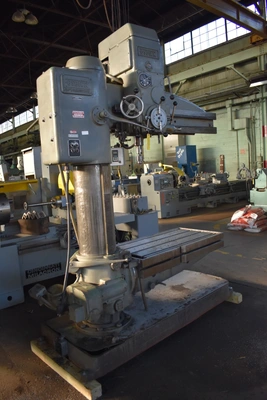

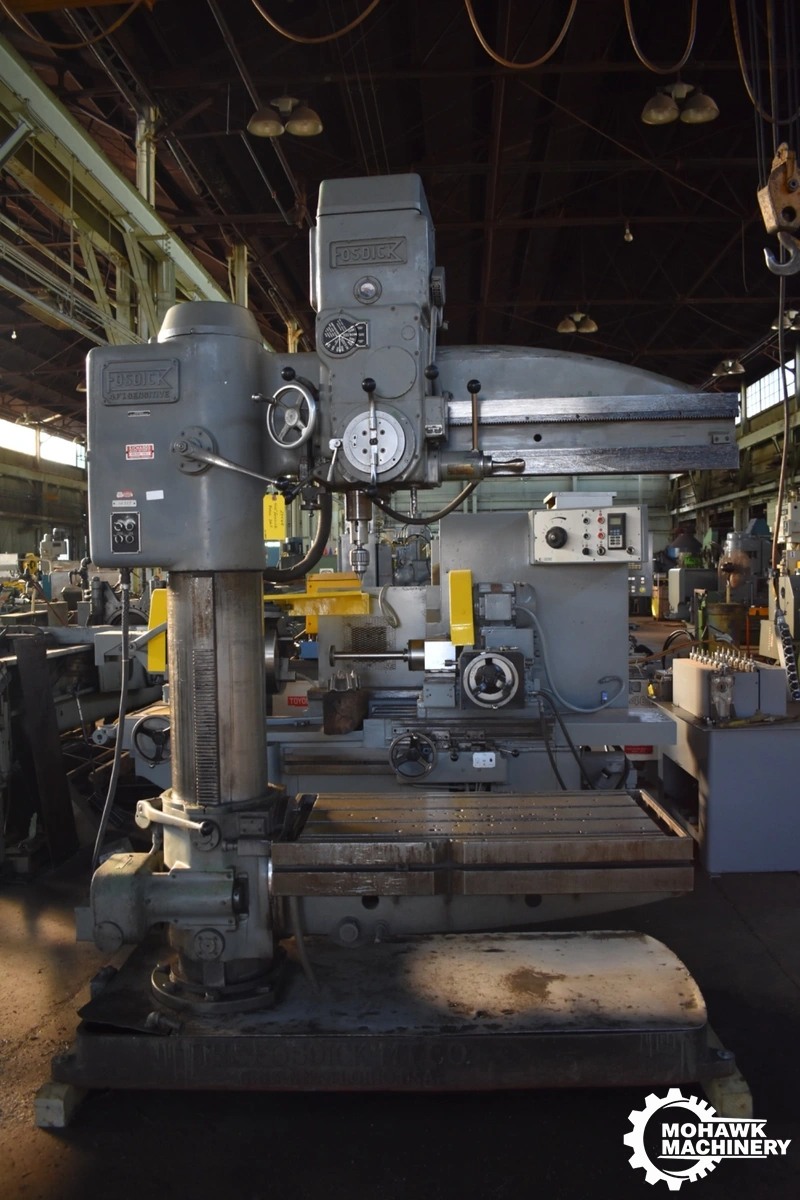

4'12" FOSDICK "SENSITIVE" RADIAL DRIL w/ROTATING TABLE

4'12" FOSDICK "SENSITIVE" RADIAL DRILL
Serial No. 20240, Model "SENSITIVE"

EQUIPPED WITH:
Rectangular Table (Rotating)

CATALOG SPECIFICATIONS:
Arm Length . . . . . . . . .4'
Column Diameter . . . . . . . . .12"
Horizontal Head Travel on Arm . . . . . . . . .39"
Vertical Spindle Travel in Head . . . . . . . . .12"
Vertical Table Travel . . . . . . . . .16.5"
Spindle-Nose to Base, Minimum . . . . . . . . .33"
Spindle-Nose to Base, Maximum . . . . . . . . .45"
Spindle-Nose to Table, Maximum . . . . . . . . .23.25"
Column-Face to Spindle, Minimum . . . . . . . . .9"
Column-Face to Spindle, Maximum . . . . . . . . .48"
Table Working Surface, W x L . . . . . . . . .24" x 48"
Base Working Surface, W x L . . . . . . . . .30" x 53"
Base Height . . . . . . . . .6.25"
Spindle Nose Diameter . . . . . . . . .2"
Spindle Taper . . . . . . . . . #4 MT
(9) Spindle Speeds, Range . . . . . . . . .60 to 1200 RPM
(4) Spindle Feeds, Range . . . . . . . . . .002 to .010 IPR
Motor, Horsepower . . . . . . . . . 3 HP
Electrical System . . . . . . . . . 220-440/3/60
Extreme Height, Head & Arm Extended . . . . . . . . . 8'1"
Weight, Approximately . . . . . . . . . 4950 LBS

F.O.B. OUR WAREHOUSE
