2-SPINDLE BUFFALO “16” MULTIPLE SPINDLE DRILL PRESS w/POWER DOWN FEED - #3 MT - ADJUSTABLE TABLE
Have one to sell?
$500.00 USD
ConditionUsed
1 available

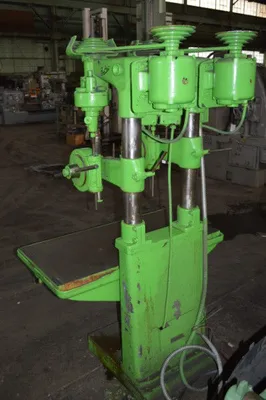

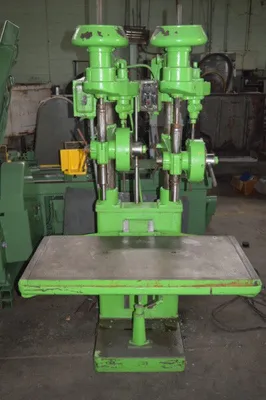

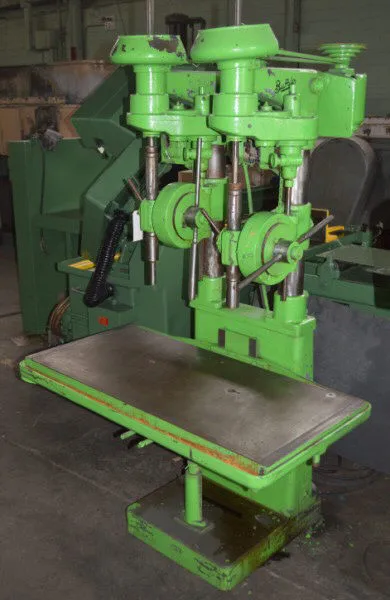

2-SPINDLE BUFFALO MULTIPLE SPINDLE DRILL PRESS
SERIAL NO. 7775, MODEL 16,
(2) BELT DRIVEN ADJUSTABLE SPINDLE HEADS
POWER DOWN FEED TO BOTH SPINDLES
ADJUSTABLE TABLE W/TELESCOPIC RAISING SCREW (HAND
CRANK OPERATED)
ROUND COLUMN DESIGN
SLIDING HEAD TYPE
Drilling Capacity, Mild Steel .875"
Swing Capacity, Maximum 24"
Spindle Center to Column 12"
Table Working Surface, L x W 46" x 23"
Spindle Travel, Power Feed 6"
Spindle Taper #3 MT
Spindle Nose, Diameter 1.875"
Spindle Diameter .937"
Spindle Speeds, Range 400 to 3000 RPM
Spindle Feeds, Range .003 to .012 IPR
PRICE: F.O.B. OUR WAREHOUSE
Drilling capacity, mild steel: .875"
Swing capacity, maximum: 24"
Spindle center to column: 12"
Table working surface, l x w: 46" X 23"
Spindle travel, power feed: 6"
Spindle taper: #3 MT
Spindle nose, diameter: 1.875"
Spindle diameter: .937"
Spindle speeds, range: 400 TO 3000 RPM
Spindle feeds, range: .003 TO .012 IPR
