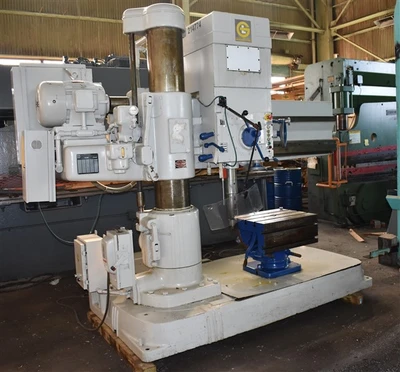

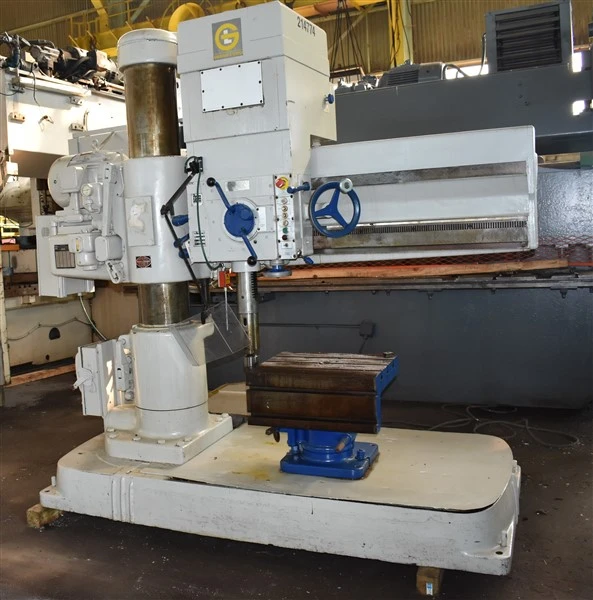

4'11" GIDDINGS & LEWIS-BICKFORD “952 CHIPMASTER” RADIAL DRILL w/L-BASE - UNIVERSAL BOX TABLE - #5 MT

Arm Length 4'

Column Diameter 11"

Vertical Arm Travel on Column 26"

Vertical Spindle Travel in Head 14"

Spindle-Radius, Maximum 57"

Spindle-Radius, Minimum 20"

Spindle-Nose to Base, Minimum 14"

Spindle-Nose to Base, Maximum 54"

Column-Face to Spindle, Minimum 11"

Drills to Center of Circle on Base 96"

Spindle Taper #5 MT

(12) Spindle Speeds, Range 40 to 1600 RPM

(9) Spindle Feeds, Range .002 to .040 IPR

Main Motor, Horsepower 10 HP

PRICE: F.O.B. OUR WAREHOUSE
Arm length: 4'
Column diameter: 11"
Vertical arm travel on column: 26"
Vertical spindle travel in head: 14"
Spindle-radius, maximum: 57"
Spindle-radius, minimum: 20"
Spindle-nose to base, minimum: 14"
Spindle-nose to base, maximum: 54"
Column-face to spindle, minimum: 11"
Drills to center of circle on base: 96"
Spindle taper: #5 MT
(12) spindle speeds, range: 40 TO 1600 RPM
(9) spindle feeds, range: .002 TO .040 IPR
Main motor, horsepower: 10 HP
