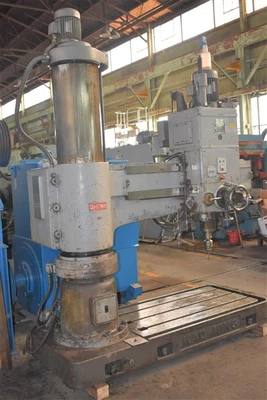

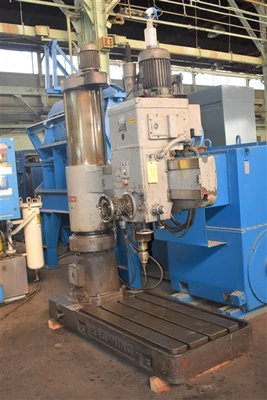

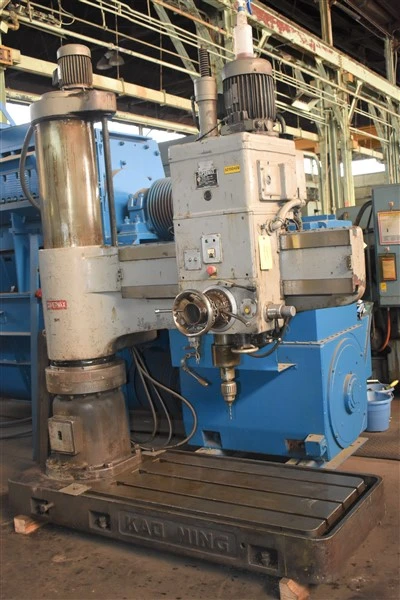

4'13" SUPERMAX ”KMR-1250DH” HYDRAULIC RADIAL DRILL w/TAPPING - HYDRAULIC CLAMPING - #5 MT - 5 HP SPINDLE MOTOR

Arm Length 4'

Column Diameter 13"

Drilling Capacity, Steel 2"

Drilling Capacity, C.I. 2.37"

Tapping Capacity, Steel 2"

Tapping Capacity, C.I. 2.37"

Boring Capacity, Steel 4.75"

Boring Capacity, C.I. 7"

Horizontal Head Travel on Arm 35"

Vertical Arm Travel on Column 27.56"

Vertical Spindle Travel in Head 11.75"

Spindle to Base, Minimum 15.34"

Spindle to Base, Maximum 54.72"

Column-Face to Spindle, Minimum 14.125"

Column-Face to Spindle, Maximum 49.22"

Base Working Surface, W x L 32.28" x 54.66"

Spindle Taper #5 MT

(12) Spindle Speeds, Range 30 to 1580 RPM

Spindle Feeds, Range .0023 to .044 IPR

Motor, Horsepower 5 HP

Feed Motor, Horsepower 2 HP

Weight, Approximately 7626 LBS

PRICE: F.O.B. OUR WAREHOUSE
Arm length: 4'
Column diameter: 13"
Drilling capacity, steel: 2"
Drilling capacity, c.i.: 2.37"
Tapping capacity, steel: 2"
Tapping capacity, c.i.: 2.37"
Boring capacity, steel: 4.75"
Boring capacity, c.i.: 7"
Horizontal head travel on arm: 35"
Vertical arm travel on column: 27.56"
Vertical spindle travel in head: 11.75"
Spindle to base, minimum: 15.34"
Spindle to base, maximum: 54.72"
Column-face to spindle, minimum: 14.125"
Column-face to spindle, maximum: 49.22"
Base working surface, w x l: 32.28" X 54.66"
Spindle taper: #5 MT
(12) spindle speeds, range: 30 TO 1580 RPM
Spindle feeds, range: .0023 TO .044 IPR
Motor, horsepower: 5 HP
Feed motor, horsepower: 2 HP
Weight, approximately: 7626 LBS
