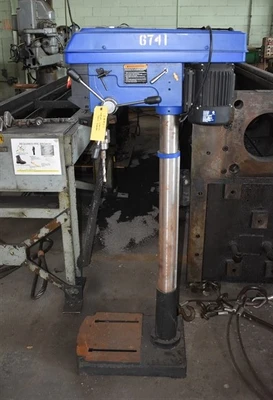

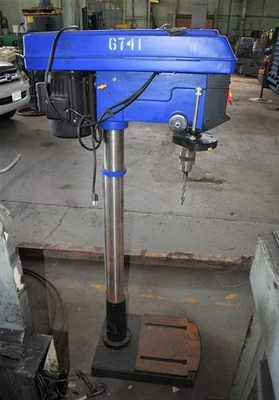

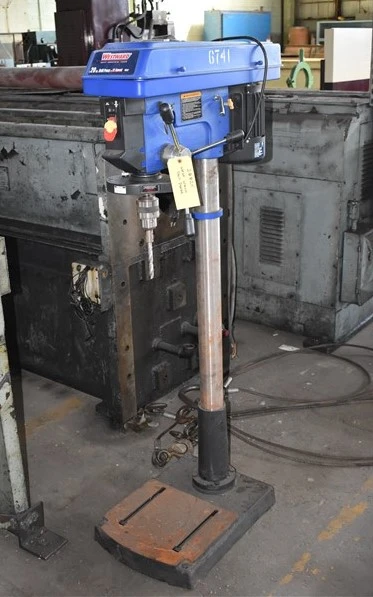

20" WESTWARD “1KEN7” FLOOR TYPE SINGLE-SPINDLE DRILL w/MANUAL DOWN FEED
Have one to sell?
ConditionUsed
1 available
$650.00 USD
20" WESTWARD FLOOR TYPE SINGLE-SPINDLE DRILL
MODEL 1KEN7, SERIES "FLOOR-TYPE"
20" WESTWARD FLOOR TYPE SINGLE-SPINDLE DRILL
MODEL 1KEN7, SERIES "FLOOR-TYPE"
EQUIPPED WITH:
BELT DRIVEN SPINDLE SPEEDS
ROUND-COLUMN DESIGN
MANUAL DOWN-FEED TO SPINDLE
3/4" Chuck
CATALOG SPECIFICATIONS:
Drill Capacity, Steel & Cast 3/4"
Swing Capacity, Maximum 20"
Swing to Center of Circle, Maximum 20"
Spindle Travel, Manual 4-3/4"
Spindle to Base 43-3/8"
Base Working Surface, W x L 17.75" x 24"
(12) Spindle Speeds Range, Variable 150 to 4200 RPM
Spindle Motor, Horsepower/RPM 1 HP
Electrical System 120/1/60
Overall Dimensions, W x D 19.25" x 34.75"
Overall Height 66-3/4"
NOTE: THE MACHINE DOES NOT HAVE AN ADJUSTABLE WORK TABLE.
PRICE: F.O.B. OUR WAREHOUSE
Drill capacity, steel & cast: 3/4"
Swing capacity, maximum: 20"
Swing to center of circle, maximum: 20"
Spindle travel, manual: 4-3/4"
Spindle to base: 43-3/8"
Base working surface, w x ll: 17.75" X 24"
(12) spindle speeds range, variable: 150 TO 4200 RPM
Spindle motor, horsepower/rpm: 1 HP
Electrical system: 120/1/60
Overall dimensions, w x d: 19.25" X 34.75"
Overall height: 66-3/4"
20" WESTWARD FLOOR TYPE SINGLE-SPINDLE DRILL
MODEL 1KEN7, SERIES "FLOOR-TYPE"
Imperial
| Swing | 20" |
| Capacity (Mild Steel) | 0.75" |
| Capacity (Cast Iron) | 0.75" |
| Power | 1 hp |
| RPM | 4,200 RPM |
| Dimensions | 19.25 x 34.75 x 66.75 |
20" WESTWARD FLOOR TYPE SINGLE-SPINDLE DRILL
MODEL 1KEN7, SERIES "FLOOR-TYPE"
EQUIPPED WITH:
BELT DRIVEN SPINDLE SPEEDS
ROUND-COLUMN DESIGN
MANUAL DOWN-FEED TO SPINDLE
3/4" Chuck
CATALOG SPECIFICATIONS:
Drill Capacity, Steel & Cast 3/4"
Swing Capacity, Maximum 20"
Swing to Center of Circle, Maximum 20"
Spindle Travel, Manual 4-3/4"
Spindle to Base 43-3/8"
Base Working Surface, W x L 17.75" x 24"
(12) Spindle Speeds Range, Variable 150 to 4200 RPM
Spindle Motor, Horsepower/RPM 1 HP
Electrical System 120/1/60
Overall Dimensions, W x D 19.25" x 34.75"
Overall Height 66-3/4"
NOTE: THE MACHINE DOES NOT HAVE AN ADJUSTABLE WORK TABLE.
PRICE: F.O.B. OUR WAREHOUSE
Drill capacity, steel & cast: 3/4"
Swing capacity, maximum: 20"
Swing to center of circle, maximum: 20"
Spindle travel, manual: 4-3/4"
Spindle to base: 43-3/8"
Base working surface, w x ll: 17.75" X 24"
(12) spindle speeds range, variable: 150 TO 4200 RPM
Spindle motor, horsepower/rpm: 1 HP
Electrical system: 120/1/60
Overall dimensions, w x d: 19.25" X 34.75"
Overall height: 66-3/4"
