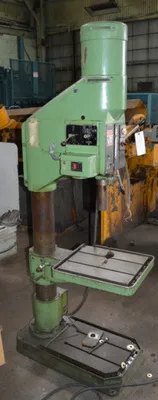

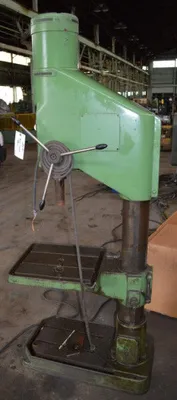

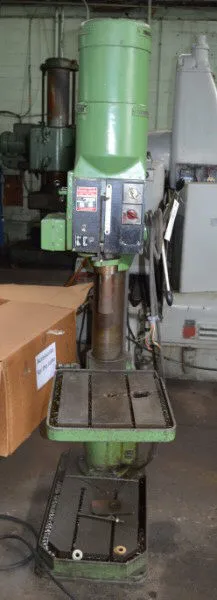

32" WILTON BOICE CRANE “32101” DIRECT DRIVE SINGLE-SPINDLE DRILL PRESS w/POWER DOWN FEED - AUTO TAPPING - #5 MT - 4 HP

Swing Diameter 32"

Drilling Capacity, Cast Iron 2"

Drilling Capacity, Steel 1.75"

Spindle Travel, Maximum 7.875"

Spindle-Nose to Table, Maximum 27"

Spindle-Nose to Table, Minimum 5"

Spindle-Nose to Base, Maximum 48"

Spindle-Center to Column 16"

Table Working Surface, W x L 19.5" x 22"

Spindle Taper #5 MT

Spindle Speeds, Range 85 to 1740 RPM

Spindle Feeds, Range .003 to .010 IPR

Spindle Motor Horsepower 4 HP

Overall Height 91"

Weight, Approximately 1158 LBS

PRICE: F.O.B. OUR WAREHOUSE
Swing diameter: 32"
Drilling capacity, cast iron: 2"
Drilling capacity, steel: 1.75"
Spindle travel, maximum: 7.875"
Spindle-nose to table, maximum: 27"
Spindle-nose to table, minimum: 5"
Spindle-nose to base, maximum: 48"
Spindle-center to column: 16"
Table working surface, w x l: 19.5" X 22"
Spindle taper: #5 MT
Spindle speeds, range: 85 TO 1740 RPM
Spindle feeds, range: .003 TO .010 IPR
Spindle motor horsepower: 4 HP
Overall height: 91"
Weight, approximately: 1158 LBS
