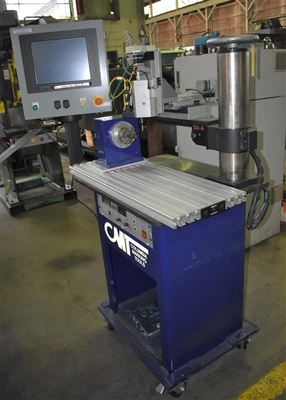

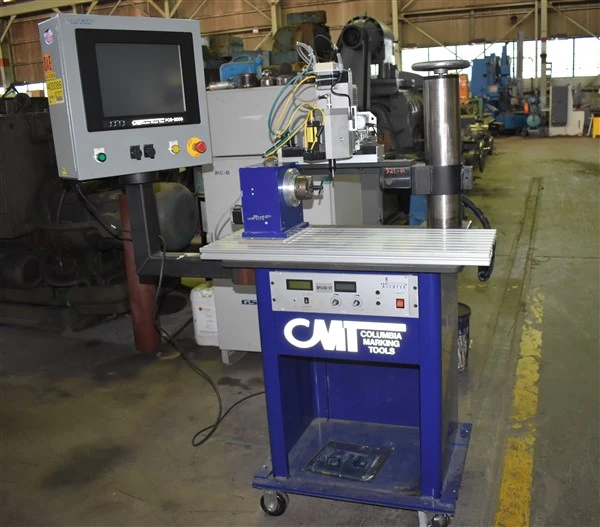

COLUMBIA MARKING TOOLS “DPS150-ST” CNC MARKING SYSTEM w/PCS2000 CNC PIVOT CONTROL - VERIFICATION - 80MM ROTATOR & ELECTRIC HEAD

#DPS150-ST COLUMBIA MARKING TOOLS CNC MARKING SYSTEM
New 2008, Serial Number AD2990M04-19, Model DPS150-ST

EQUIPPED WITH:
PCS2000 CNC Control w/Pivot
Cognex Series 5000 In-Sight Verification System
DPS 80MM Rotator (AD2990)
DPS150-ES-Electric Head
Heavy Duty Steel Base - Casters

CATALOG SPECIFICATIONS:
Work Table Dimensions, L x W 36" x 13.24"
Height Rotator Center to Table 6"
Z-Axis Column Rotation 360-DEGREES
Z-Axis Adjustment Travel, Manual 11"
Column Adjustment, Manually 7.27"
Overall Dimensions, L x D 60" x 23.5"
Overall Height 67.4"

NOTE: The DPS Marker Operates On A Combination Of Linear
Rails, Ball Screws, And Stepper/Servo Motors. This
Machine Can Mark Steel And Non-Ferrous Metals As
Well As Plastics And Composite Materials.
This Marking System Appears To Have Never Been Put
Into Service With A Replacement Price Of Approximately
$75,000.00.

PRICE: F.O.B. OUR WAREHOUSE
Work table dimensions, l x w: 36" X 13.24"
Height rotator center to table: 6"
Z-axis column rotation: 360-DEGREES
Z-axis adjustment travel, manual: 11"
Column adjustment, manually: 7.27"
Overall dimensions, l x d: 60" X 23.5"
Overall height: 67.4"
