8' CINCINNATI-INC 90-TON "90AFX6 AUTOFORM" CNC HYDRAULIC PRESS BRAKE w/ADAPTIVE AUTOFORM CNC BACK GAUGE - CROWNING

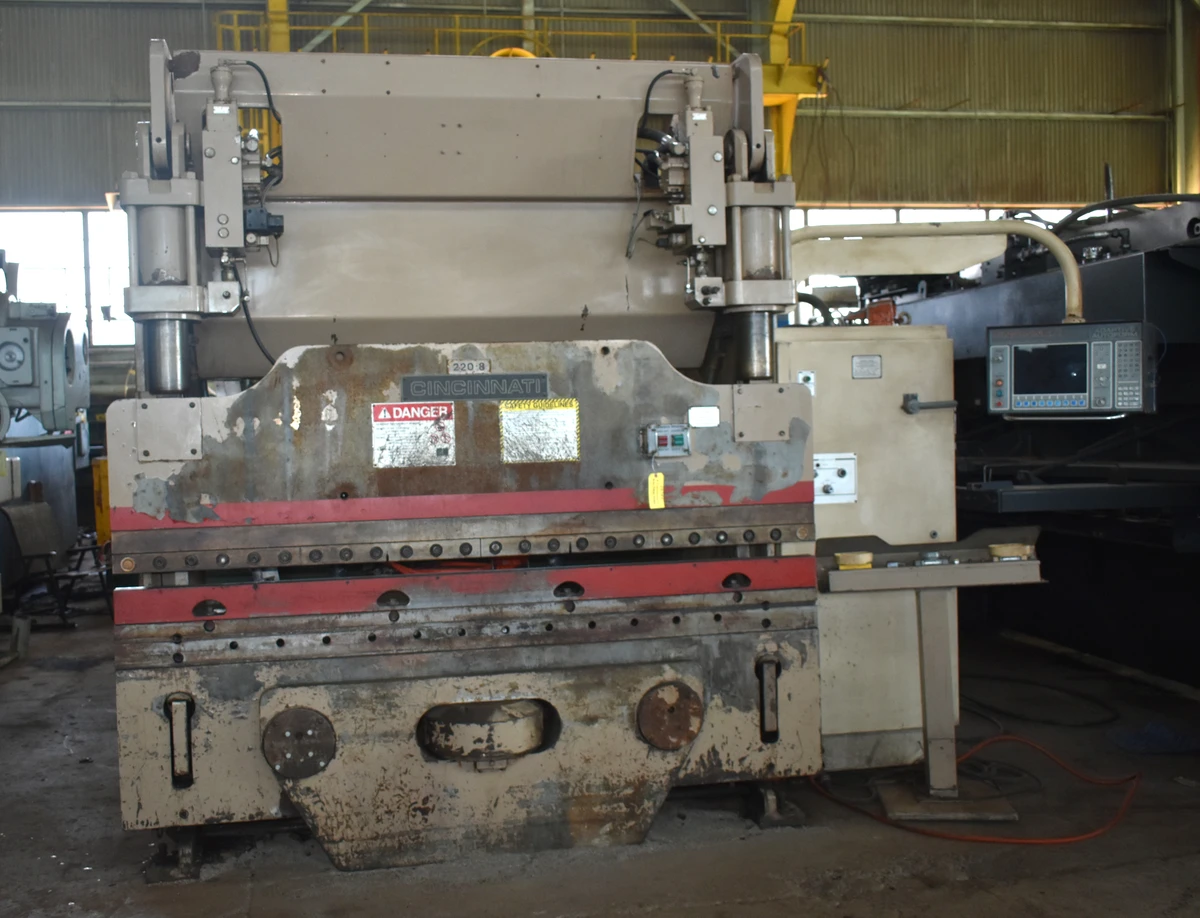

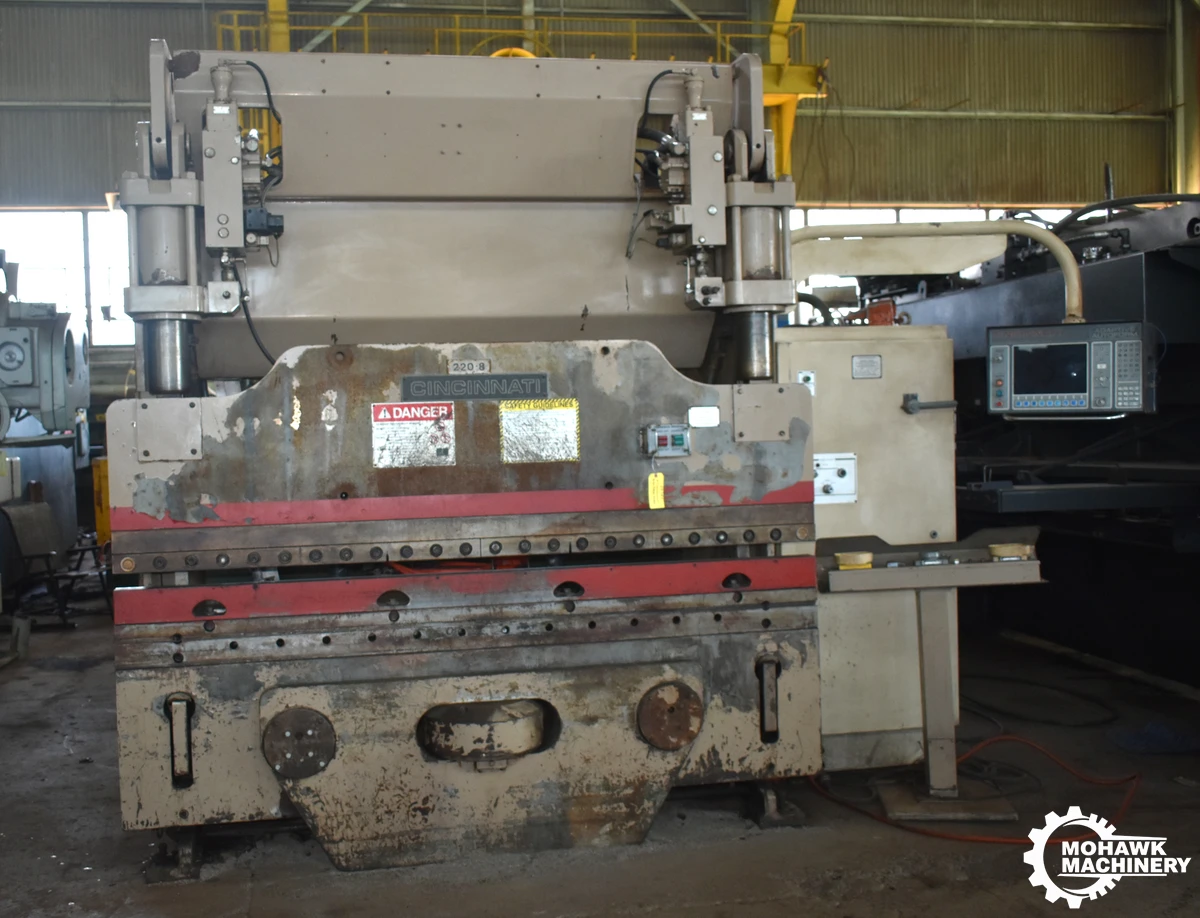

8' CINCINNATI-INC 90-TON "AUTOFORM" CNC HYDRAULIC PRESS BRAKE
NEW 1990, SERIAL NO 46073, MODEL 90AFX6'

EQUIPPED WITH:
ADAPTIVE AUTOFORM CNC BACK GAUGE
CROWNING CAPABILITIES
POWER TOOL CLAMPING (UPPER)
BED MACHINED FOR ANGLE PLATES

CATALOG SPECIFICATIONS:
Tonnage Capacity, Medium Or Low Speed 90 TON
Tonnage Capacity, High Speed 40 TON
Overall Length of Bed and Ram 8'
Distance Between Housings 6'6-1/2"
Bending Capacity 6'10' x 3/16"
Bending Capacity 5' x 1/4"
Stroke Length 8"
Open Height 15"
Closed Height 7"
Throat Depth 7"
Ram Speed, High 380 IPM
Ram Speed, Variable Forming 1 to 120 IPM
Ram Speed, Variable Return 1 to 405 IPM
Hydraulic Motor, Horsepower 25 HP
Overall Height 9'3"
Weight, Approximately 14300 LBS

PRICE: F.O.B. OUR WAREHOUSE
Tonnage capacity, medium or low speed: 90 TON
Tonnage capacity, high speed: 40 TON
Overall length of bed and ram: 8'
Distance between housings: 6'6-1/2"
Bending capacity: 5' X 1/4"
Stroke length: 8"
Open height: 15"
Closed height: 7"
Throat depth: 7"
Ram speed, high: 380 IPM
Ram speed, variable forming: 1 TO 120 IPM
Ram speed, variable return: 1 TO 405 IPM
Hydraulic motor, horsepower: 25 HP
Overall height: 9'3"
Weight, approximately: 14300 LBS
