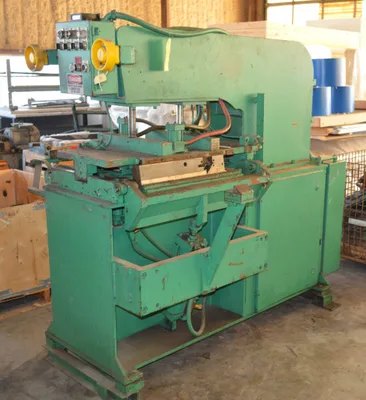

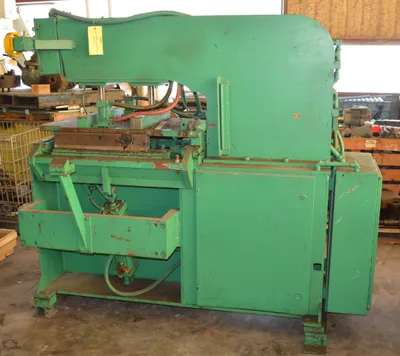

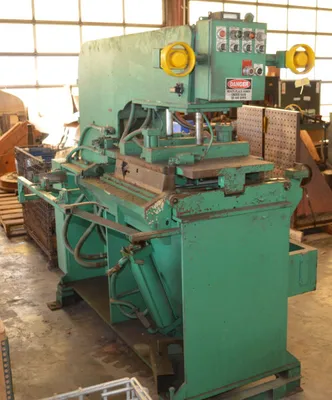

30" DREIS & KRUMP DOUBLE WING FOLDER BRAKE w/ALLEN BRADLEY 100 CONTROLS - 36” THROAT

ALLEN BRADLEY #100 CONTROLS

FIXED HEAD - OPEN THROAT DESIGN

AIR OPERATED TWO BOTTOM FOLD-UP SECTIONS

ALL STEEL CONSTRUCTION

NOTE: COMPLETE REBUILD JULY 1997 INCLUDES MEASURE,
TEST, AND BUILD NEW NYLON WEAR STRIP SLIDE RAILS,
TWO POSITIONING CYLINDER, AND HOLDBLOCKS REPAIR;
REPLACE ALL SOLENOIDS WITH QUICK CHANGE MANIFOLD
STYLE VALVES, REPLACE (8) SOLENOIDS WITH DUAL
SOLENOIDS; PROVIDE ALL NEW AIR LINES, FLOW CONTROLS,
AND PRESSURE GAUGES; CHECK SQUARENESS ON RAM AND
BEDPLATE, MACHINE AS NEEDED REBUILD CONTROL BOX
WITH ALLEN BRADLEY #100 CONTROLLER; REWIRE MACHINE,
PROVIDE NEW SEALTIGHT AND WIRING; DRAW NEW PRINTS
AND PROVIDE DOCUMENTED PLC PROGRAM; NO RETURN TO
HOME ON SINGLE STROKE, SLIDE STOPS ANYTIME THRU
CYCLE; PROVIDE NEW PUSHBUTTONS, PILOT LIGHTS, AND
ALL OPERATOR LEGENDS; REUSE (2) LITE TOUCH PALM
BUTTONS PROVIDED BY CUSTOMER; REPAIR UNIT, TEST,
AND OPERATE, CUSTOMER PROVIDES ONE FINISHED PART
AND (15) FLAT PIECES TO TEST RUN; REBUILT THE MAIN

PRICE: F.O.B. OUR WAREHOUSE
Width capacity, maximum: 30"
Throat depth: 32"
Top die length, presently on machine: 36"
Top die width, presently on machine: 20"
Top die stroke: 10"
Bottom fold section, left side: 4" X 32"
Bottom fold section, right side: 4" X 32"
