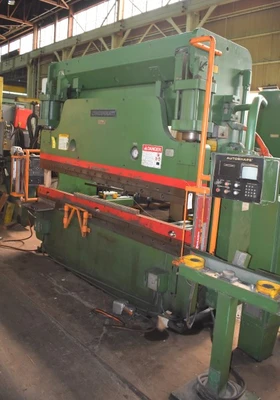

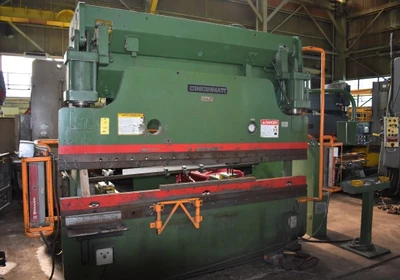

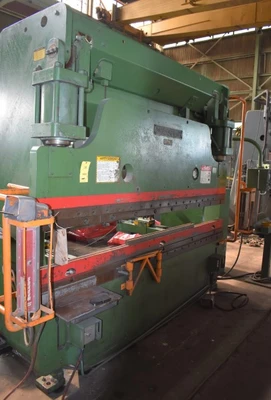

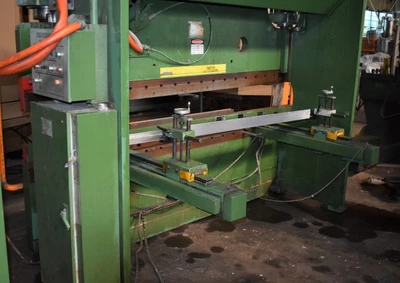

10' CINCINNATI-INC 135-TON "135ASX8 AUTOSHAPE" CNC HYDRAULIC PRESS BRAKE w/AUTOSHAPE BACK GAUGE - (2) FOOT SWITCHES

Tonnage Capacity, Medium Or Low Speed 135 TON

Tonnage Capacity, High Speed 60 TON

Overall Length of Bed and Ram 10'

Distance Between Housings 8'6"

Bending Capacity 10' x 3/16 GA

Bending Capacity 7'6" x 1/4"

Bending Capacity 4'8" x 1/2"

Stroke Length 8"

Open Height 15"

Closed Height 7"

Throat Depth 7"

Ram Speed, High 260 IPM

Ram Speed, Medium 73 IPM

Ram Speed, Low 16 IPM

Ram Speed, High Return 255 IPM

Ram Speed, Low Return 54 IPM

Hydraulic Motor, Horsepower 25 HP

Height 9'11"

Weight, Approximately 17300 LBS

F.O.B. OUR WAREHOUSE
Tonnage capacity, medium or low speed: 135 TON
Tonnage capacity, high speed: 60 TON
Overall length of bed and ram: 10'
Distance between housings: 8'6"
Bending capacity: 4'8" X 1/2"
Stroke length: 8"
Open height: 15"
Closed height: 7"
Throat depth: 7"
Ram speed, high: 260 IPM
Ram speed, medium: 73 IPM
Ram speed, low: 16 IPM
Ram speed, high return: 255 IPM
Ram speed, low return: 54 IPM
Hydraulic motor, horsepower: 25 HP
Height: 9'11"
Weight, approximately: 17300 LBS
