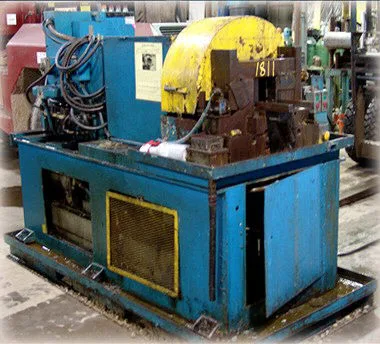

3-1/2 DICKEY & SON P.D. & B HYDRAULIC ROTARY TUBE END FORMER - 3/4” TO 3-1/2” TUBE CAPACITY - 15 HP MOTORS

Tube Diameter Capacity, Range 3/4" to 3-1/2"

Form Stroke Adjustable 1"

Clamp Stroke 3"

Main Spindle Speed 300 RPM

Clamping Pressure at 1000 PSI 28000 LBS

Form Pressure at 1000 PSI 19600 LBS

Floor Space Required, L x W 82" x 42"

Main Motor, Horsepower/RPM 15 HP/1750 RPM

Hydraulic Motor Horsepower/RPM 15 HP/1750 RPM

Overall Height 68"

Weight, Approximately 6700 LBS

PRICE: F.O.B. OHIO (PERRYSBURG)
Tube diameter capacity, range: 3/4" TO 3-1/2"
Form stroke adjustable: 1"
Clamp stroke: 3"
Main spindle speed: 300 RPM
Clamping pressure at 1000 psi: 28000 LBS
Form pressure at 1000 psi: 19600 LBS
Floor space required, l x w: 82" X 42"
Main motor, horsepower/rpm: 15 HP/1750 RPM
Hydraulic motor horsepower/rpm: 15 HP/1750 RPM
Overall height: 68"
Weight, approximately: 6700 LBS
