1350-DEGREE DESPATCH “FCH1-45” ELECTRIC CABINET TYPE HEAT-TREAT FURNACE w/TRAYS (18” X 24” X 18”)

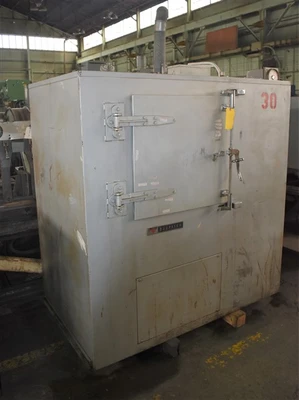

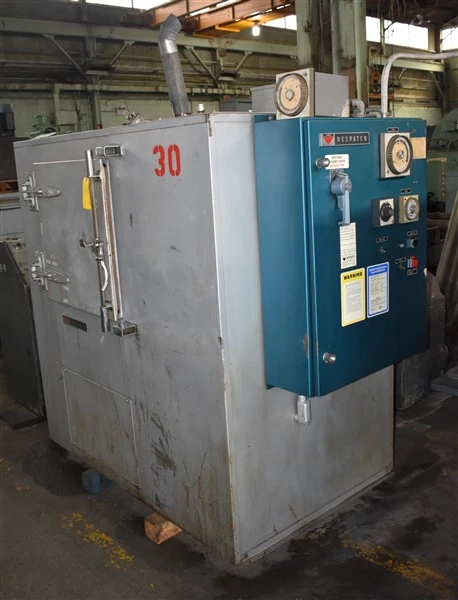

1350-DEGREE DESPATCH ELECTRIC CABINET TYPE HEAT-TREAT FURNACE

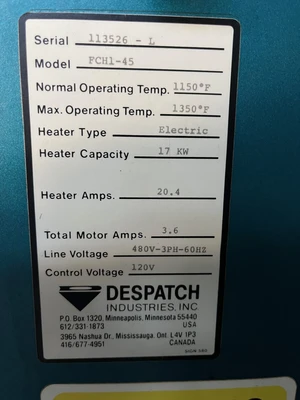

SERIAL NO 113526-L, MODEL FCH1-45

EQUIPPED WITH:
HORIZONTAL RECIRCULATING AIRFLOW
HEAVY STEEL EXTERIOR
STAINLESS STEEL INTERIOR
SWING TYPE DOOR W/HEAVY CAST STRAP HINGES AND
NO-SLAM TYPE LATCH
(2) Trays

CATALOG SPECIFICATIONS:
Operating Temperature Maximum, Fahrenheit 1350-DEGREES
Operating Temperature Norman, Fahrenheit 1150-DEGREES
CFM Rating 2000 CFM

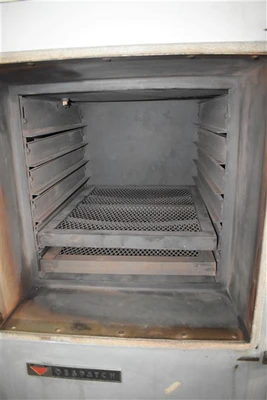

Internal Dimensions, Width 18"
Internal Dimensions, Depth 24"
Internal Dimensions, Height 18"
Motor Horsepower 2 HP
Overall Dimensions, W x D 75" x 42"
Overall Height 70"
Weight Approximately 3600 LBS

NOTE: FCH CABINET TYPE FURNACES ARE GREAT FOR SUCH PROCESSES
AS ALUMINUM SOLUTION HEAT TRETING, AGING, BRASS ANNEALING
AND FORGING, LOW TEMPERATURE PORCELAIN ENAMELING, STEEL
TEMPERING, WIRE ANNEALING AND STRESS RELIEVING AND OTHER
HEAT TREATING APPLICATIONS. IT IS IDEAL FOR PRODUCTION OF
SMALL LOT SIZES OR SMALLER PARTS PLACED IN TRAYS.

PRICE: F.O.B. OUR WAREHOUSE
Operating temperature maximum, fahrenheit: 1350-DEGREES
Operating temperature norman, fahrenheit: 1150-DEGREES
Cfm rating: 2000 CFM
Internal dimensions, width: 18"
Internal dimensions, depth: 24"
Internal dimensions, height: 18"
Motor horsepower: 2 HP
Overall dimensions, w x d: 75" X 42"
Overall height: 70"
Weight approximately: 3600 LBS
