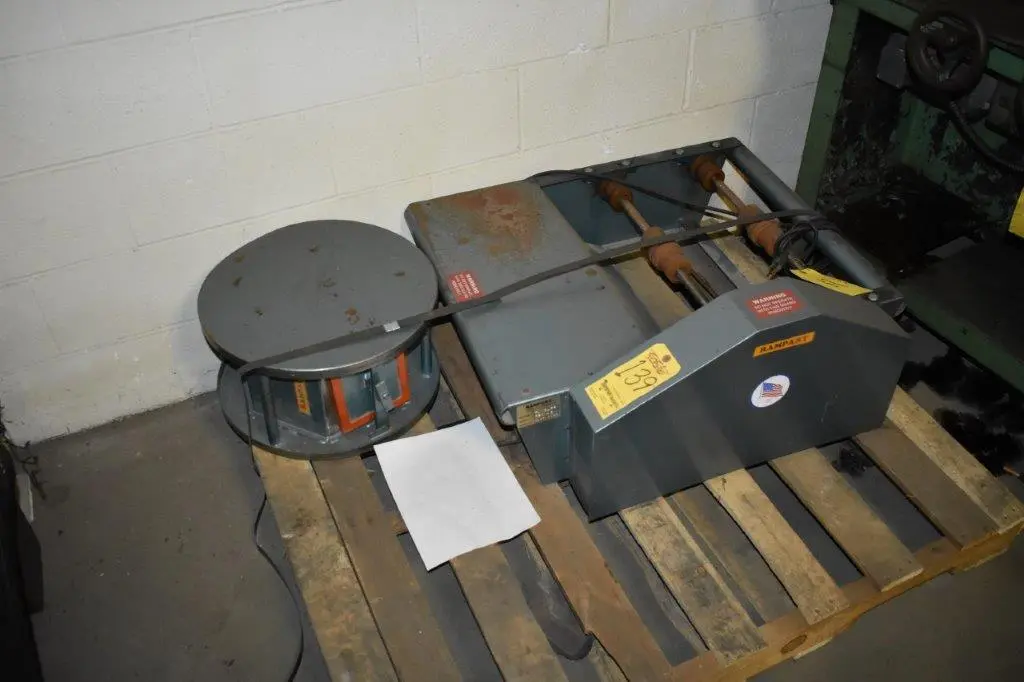

1/2 CU FT RAMPART “RBD-2” INDUSTRIAL-DUTY PORTABLE BENCH-TYPE BARREL FINISHING MACHINE w/VARI-SPEED DRIVE

1/2 CU FT RAMPART INDUSTRIAL-DUTY PORTABLE BENCH-TYPE BARREL FINISHING MACHINE
SERIAL NO 1160.0696, MODEL RBD-2

EQUIPPED WITH:
RB-2 RAMPART REMOVABLE BARREL
VARIABLE SPEED DRIVE
PORTABLE BENCH TYPE DESIGN
WELDED STEEL CONSTRUCTION
DUAL DRIVE SHAFTS

CATALOG SPECIFICATIONS:
Barrel Capacity 1/2 CU FT
Diameter Across Barrel Corner 13"
Barrel Width 9.125"
Drive Unit Speed, Range 22 to 54 RPM
Drive Unit Dimensions, W x D 29" x 32"
Drive Unit Height 14.5"
Drive Motor Horsepower 1/4 HP
Drive Unit Weight, Approximately 95 LBS

NOTE: THE MODEL RBD FEATURES A POSITIVE ROLLER DRIVE,
WITH POWER APPLIED BY FOUR URETHANE ROLLERS IN
DIRECT CONTACT WITH THE BARREL FLANGES. THE BARREL
IS EASILY REMOVABLE BY SIMPLY LIFTING IT FROM THE
DRIVE ROLLERS, THUS PERMITTING LOADING OF AN EXTRA
BARREL WHILE PROCESSING ANOTHER ON THE MACHINE.

PRICE: F.O.B. OUR WAREHOUSE
Barrel capacity: 1/2 CU FT
Diameter across barrel corner: 13"
Barrel width: 9.125"
Drive unit speed, range: 22 TO 54 RPM
Drive unit dimensions, w x d: 29" X 32"
Drive unit height: 14.5"
Drive motor horsepower: 1/4 HP
Drive unit weight, approximately: 95 LBS
