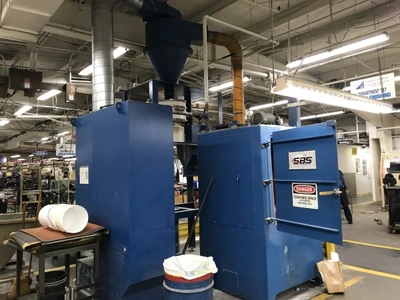

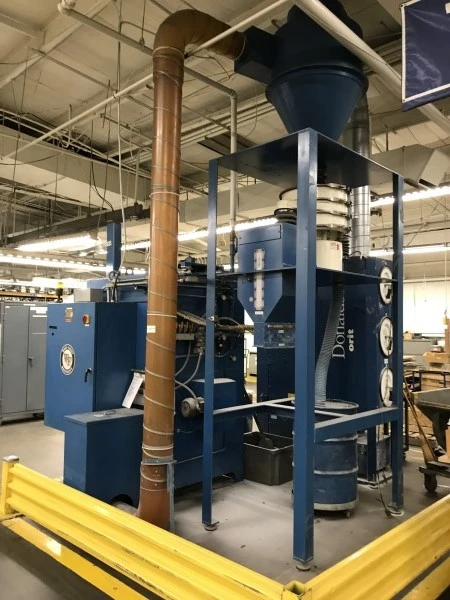

26" SURFACE BLAST SYSTEMS LLC ROTARY TABLE TYPE ABRASIVE BLAST SYSTEM w/RECLAIM SYSTEM W/28” CYCLONE - ROOF MOUNTED VARIABLE-SPEED NOZZLE MOVER - DFO3-3 DONALDSON TORIT DUST COLLECTOR - VIBRATORY SEPERATOR

ALLEN BRADLEY MICROLOGIX PLC CONTROLLER

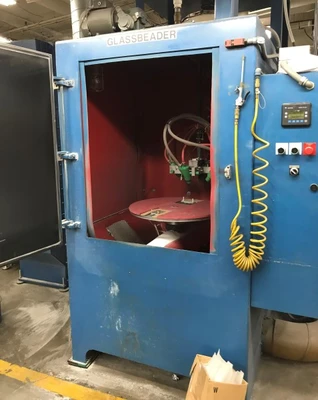

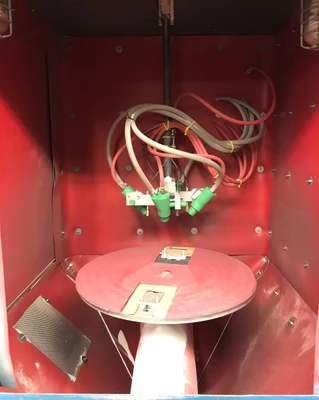

BLAST CABINET W/26" DIAMETER VARIABLE SPEED TURNTABLE
& W/HOPPER SHAPED FLOOR FOR MEDIA RECLAIM, FULLY
RUBBER LINED, AND BLOW OFF NOZZLES AND HOSE
VARIABLE SPEED BLAST NOZZLE MOVER (ROOF MOUNTED)

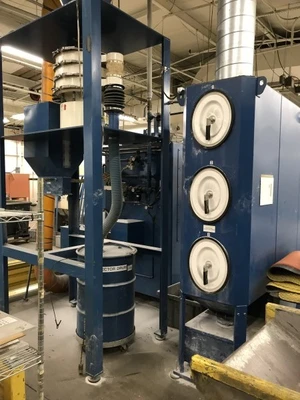

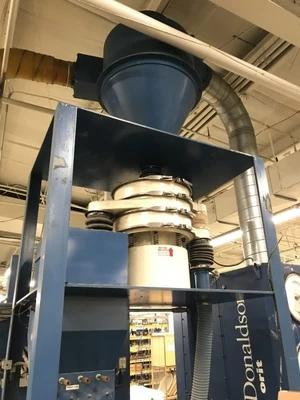

RECLAIM SYSTEM W/28" CYCLONE, VIBRATORY SEPERATOR

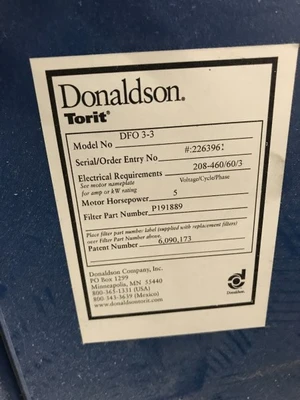

AND TORIT DFO 3-3 DOWNFLO DUST COLLECTOR
SUCTION BLAST SYSTEM W/2 CU FT SUCTION MEDIA HOPPER
LOW MEDIA, PRESSURE CONTROL REGULATOR,

DESCRIPTION: THIS MACHINE WAS INITIALLY DESIGNED TO
TEXTURE AIRCRAFT SEAT SUPPORTS PRIOR TO ANODIZING
HOWEVER ANY PART THAT WOULD FIT ON THE TURNTABLE
COULD BE BLASTED.

SPECIFICATIONS:

Turntable Diameter 26"

Turntable Load Capacity 200 LBS

Inside Cabinet Height Turntable To Top 42"

Inside Cabinet Dimensions, W x D 47" x 47"

Inside Cabinet Height 70"

Part Loading Door, W x H 34" x 43"

Access Door, W x H 34" x 43"

Nozzle Mover Horizontal Stroke 18"

NOTE: Machine Appears To Be In Very Good Condition As

Taken From Service In An Aerospace Facility.

Replacement Price Is Between $150,000.00 to $160,000.00.

PRICE: F.O.B. OUR WAREHOUSE
Turntable diameter: 26"
Turntable load capacity: 200 LBS
Inside cabinet height turntable to top: 42"
Inside cabinet dimensions, w x d: 47" X 47"
Inside cabinet height: 70"
Part loading door, w x h: 34" X 43"
Access door, w x h: 34" X 43"
Nozzle mover horizontal stroke: 18"
