12” GLEASON “300-CG” CNC SPIRAL BEVEL GEAR CUTTER SHARPENING MACHINE

Description

GLEASON #300-CG "CNC" SPIRAL BEVEL
GEAR CUTTER SHARPENING MACHINE
NEW 1999, SERIAL NO. 920301

SUITABLE FOR THE FACE SHARPENING OF SINGLE-SIDE
GLEASON "TRIPLEX-STYLE "FACE MILL CUTTERS" IN
ONE SET-UP,AS WELL AS FOR THE PROFILE SHARPENING
"RSR" AND "TRI-AC" CUTTERS OF ALL GEOMETRIES IN
ONE CHUCKING, WITH APPROPRIATE BLADE HOLDING
FIXTURES, UTILIZING DRESSABLE CBN GRINDING WHEELS.
(MACHINE EQUIPPED WITH AUTO LOADING SYSTEM )

EQUIPMENT / FEATURES:
TOTALLY ENCLOSED WORK AREA GUARDING WITH POWERED
SIDE ACCESS DOOR
AIR CONDITIONED CNC ENCLOSURE
WORK CHAMBER LIGHTING

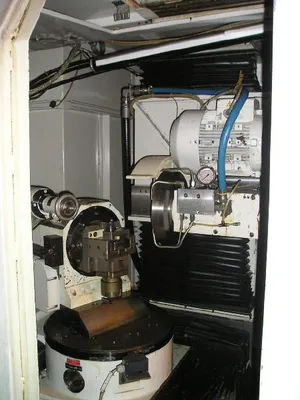

GRINDING WHEEL ADAPTER FOR PROFILE OR FACE SHARPENING

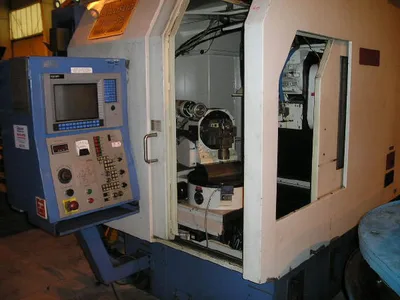

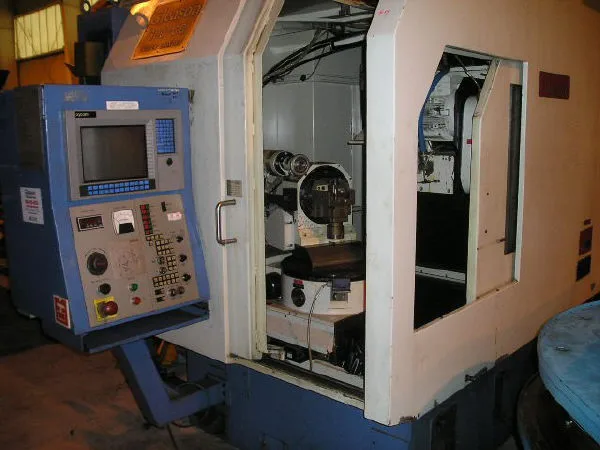

GE FANUC SERIES 15 CNC (COMPUTERIZED NUMERICAL CONTROL)
WITH CUTTER SHARPENING SOFTWARE AND OPERATOR'S
PENDANT LOCATED TO ALLOW MACHINE OPERATION FROM
THE FRONT OR SIDE ACCESS DOORS.
ROTARY DIAMOND WHEEL TRUING DEVICE
WORK-HOLDING EQUIPMENT FOR THE SINGLE BLADE
PROFILE SHARPENING OF TRI-AC CUTTER-BLADES

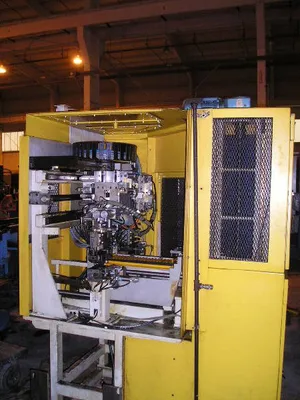

AUTOMATIC LOADER ARRANGED FOR TRAYS CARRYING RSR
AND TRI-AC BLADES
FULL COMPLEMENT OF ELECTRICS (MOTORS/CONTROLS)
MACHINE LEVELING SHOES

PRICE: F.O.B. truck, present plant $89,500.00

F.O.B. AS IS WHERE IS............$89,500

Monthly Payments Starting At:....$1792.68

Call Us at: 513-771-1952

Conditions of Sale
(NOMINAL DIA.) (26.95-147MM)
INSERTED BLADE,
FACE SHARPENED (NOM DIA.) (85.75-294MM)
PROFILE SHARPENING OF ALL RSR AND TRI-AC BLADES
(WITH OPTIONAL EQUIPMENT)
( SPEEDS )
( WORK SPINDLE )
( ELECTRICAL EQUIPMENT - MOTORS ) ( HP OR TOQUE )
( MISCELLANEOUS )
FLOOR SPACE
(INCLUSIVE OF BASE MACHINE & CONTROLS) (206X183 CM)
(INCLUSIVE OF BASE MACHINE, CONTROLS &
(INCLUSIVE OF BASE MACHINE, CONTROLS &
HEIGHT (WITH ITEM 26, LEVELING & VIBRATION
Solid, face sharpened (nominal dia.): 1.1"-6"
Face sharpened (nom dia.): 3.5"-12"
A axis - horizontal workspindle: 360° ROLLOVER
C axis - vertical rotating top plate: +20 - 190°
X axis - horiz workhead base: AC SERVO 6.7 NM 5 FT. LBS.
Y axis - horiz grinding wheel base: AC SERVO 6.7 NM 5 FT. LBS.
Z axis - vert grinding wheel head: AC SERVO 6.7 NM 5 FT. LBS.
A axis - horiz workspindle: AC SERVO 6.7 NM 5 FT. LBS.
C axis - vert rotating top plate: AC SERVO 6.7 NM 5 FT. LBS.
Diameter of taper hold at large end: (#39 TAPER)
- grinding wheel: AC INDUCTION 5 HP
(inclusive of base machine & controls): 81" X 72"
Coolant system): (368X224 CM)
Height (standard): 67" (170 CM)
Dampening device): 73" (185 CM)
Weight (approx.): 12,000 LBS (5,500 KGS)
