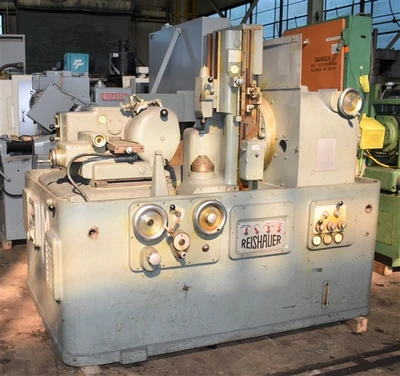

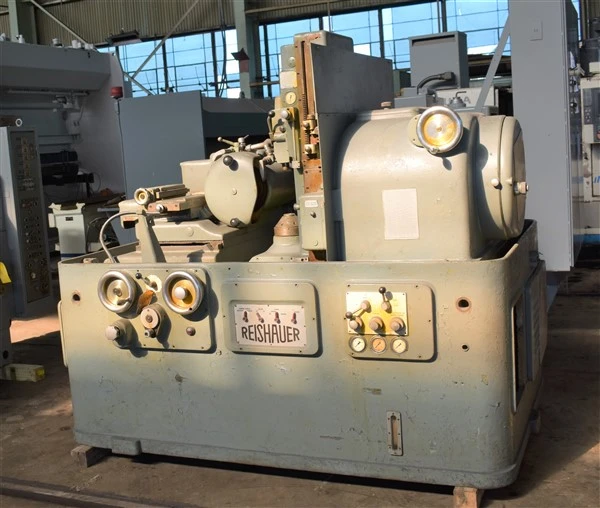

9.5” X 17.75” REISHAUER “ZA” SPUR & HELICAL GEAR GRINDER w/DRESSER

Work Diameter, Range 1/2" to 9-1/2"

Number Of Teeth Ground, Range 12 to 130

Diametral Pitch, Range 6 to 48 D.P.

Maximum Grinding Length, Face Width 6-3/4"

Maximum Stroke Of Work Slide 7-1/8"

Maximum Distance Between Centers 17-3/4"

Minimum Arbor Diameter 1/4"

Grinding Wheel Withdrawal, Auto 1/8"

Grinding Worm Speed 1500 RPM

Grinding Worm Speed, Profiling 50 to 80 RPM

Feed Rates Range, Inf. Variable .012 to .080 IPR

Grinding Wheel Feed Rate,

Auto Work Stroke 0 to .0032"

Grinding Worm Diameter, Maximum 12-3/4"

Grinding Worm Diameter, Minimum 10-5/8"

Grinding Worm Width 2-7/16"

Motor, Horsepower/RPM 10 HP/1800 RPM

Electrical System 440/3/60

Floor Space Required 7'7" x 7'7"

Weight, Approximately 9500 LBS.

PRICE: F.O.B. OUR WAREHOUSE
Work diameter, range: 1/2" TO 9-1/2"
Number of teeth ground, range: 12 TO 130
Maximum stroke of work slide: 7-1/8"
Maximum distance between centers: 17-3/4"
Minimum arbor diameter: 1/4"
Grinding wheel withdrawal, auto: 1/8"
Grinding worm speed: 1500 RPM
Grinding worm speed, profiling: 50 TO 80 RPM
Feed rates range, inf. variable: .012 TO .080 IPR
Auto work stroke: 0 TO .0032"
Grinding worm diameter, maximum: 12-3/4"
Grinding worm diameter, minimum: 10-5/8"
Grinding worm width: 2-7/16"
Motor, horsepower/rpm: 10 HP/1800 RPM
Electrical system: 440/3/60
Floor space required: 7'7" X 7'7"
Weight, approximately: 9500 LBS.
Diametral pitch, range: 6 TO 48 D.P.
Maximum grinding length, face width: 6-3/4"
