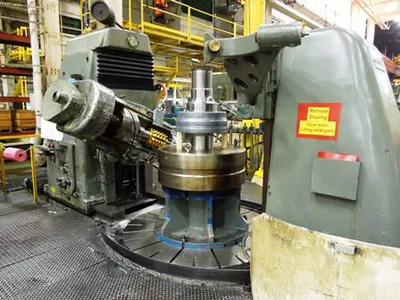

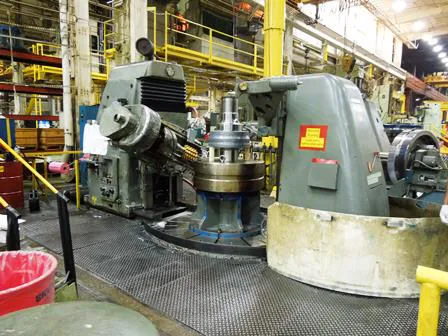

120” PFAUTER “P3000B” VERTICAL GEAR HOBBER w/UNIVERSAL HOB HEAD - AUTOMATIC HOB SHIFT - DIFFERENTIAL - OUTBOARD SUPPORT - CHANGE GEARS

Workpiece Diameter, Maximum 120"

Rated Pitch In Steel, Maximum 1 DP

Hob Diameter, Maximum 11.4"

Hob Length, Maximum 13"

Work Table Diameter 75"

Work Table Bore Diameter 20"

Axial Travel, Maximum 41.3"

Hob Shift, Maximum 12"

Distance Workpiece to Hob, Maximum 65"

Distance Workpiece to Hob, Minimum 11.8"

Number Of Teeth Cut, Minimum 16

Hob Speeds,Infinitely Variable 12 to 150 RPM

Axial Feeds Range, Infinitely Variable .014 to 283 IPR

Radial Feeds Range, Infinitely Variable .003 to .059 IPR

Main Motor Horsepower 20 HP

Floor Space Required, L x W 260" x 159"

Overall Height 151"

Weight Approximately 68000 LBS

PRICE: F.O.B. OUR WAREHOUSE
Workpiece diameter, maximum: 120"
Rated pitch in steel, maximum: 1 DP
Hob diameter, maximum: 11.4"
Hob length, maximum: 13"
Work table diameter: 75"
Work table bore diameter: 20"
Axial travel, maximum: 41.3"
Hob shift, maximum: 12"
Distance workpiece to hob, maximum: 65"
Distance workpiece to hob, minimum: 11.8"
Number of teeth cut, minimum: 16
Hob speeds,infinitely variable: 12 TO 150 RPM
Axial feeds range, infinitely variable: .014 TO 283 IPR
Radial feeds range, infinitely variable: .003 TO .059 IPR
Main motor horsepower: 20 HP
Floor space required, l x w: 260" X 159"
Overall height: 151"
Weight approximately: 68000 LBS
