8” GLEASON PHOENIX “2OOHG” HYPOID SPIRAL BEVEL GEAR GRINDER - 8” DIAMETER CAPACITY - 1.6” FACE WIDTH CAPACITY - GE FANUC 150 CNC CONTROL

Description

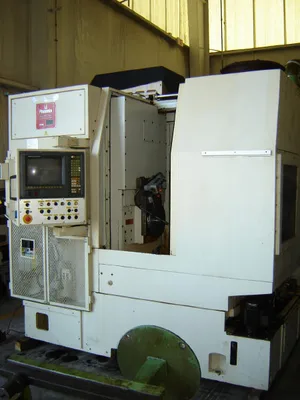

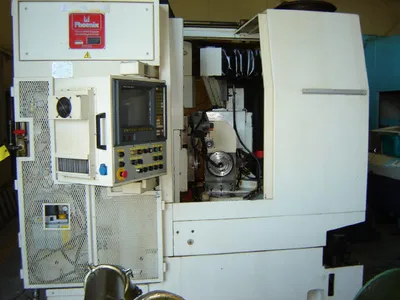

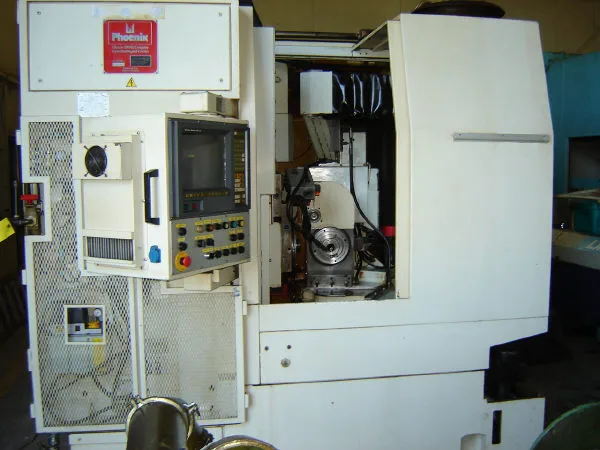

GLEASON PHOENIX #200HG CNC HYPOID SPIRAL BEVEL
GEAR GRINDING MACHINE
NEW 1992, SERIAL NO. 904905

SUITABLE FOR THE HARD FINISHING OF SPIRAL BEVEL, ZEROL
BEVEL,AND HYPOID GEARS AND PINIONS UP TO 8"
(215.90MM) PITCH DIAMETER AT 5:1 RATIO, 1.6"
(40.65MM) MAXIMUM FACE-WIDTH,UTILIZING NON-DRESSABLE
PLATED CBN WHEELS, OR DRESSABLE WHEELS SUCH AS
CONVENTIONAL ALUMINUM OXIDE, SG, AND/OR VITRIFIED
CBN type

FEATURES / EQUIPMENT:
- MACHINE FURNISHED WITH FREE STANDING, AIR
CONDITIONED ELECTRICAL ENCLOSURE, W/OPERATOR'S
CONTROLS LOCATED AT MACHINE FRONT, ADJACENT TO
ACCESS DOOR

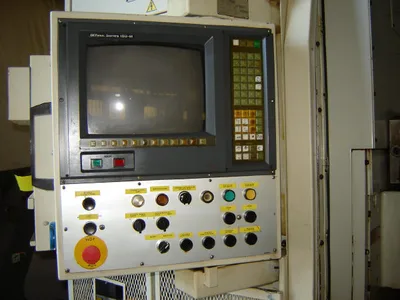

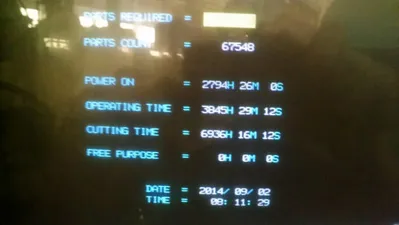

- GE-FANUC SERIES 150 COMPUTER CONTROL WITH GEAR
GRINDING SOFTWARE, 10.4" LCD FLAT COLOR DISPLAY,
STORAGE CAPACITY FOR 100 SUMMARIES, CYCLE FAULT
MONITORING, AND AUTOMATIC SETUP AND CONTROL OF 7
AXES: (A ) WORK SPINDLE, (B) SWINGING BASE,
(C) WHEEL SPINDLE, (D) DRESSER, (X) HORIZONTAL,
(Y) VERTICAL, (Z) SLIDING BASE
- MACHINE ARRANGEMENT AS 200HG GRINDER
- MANUAL STOCK DIVIDING SYSTEM
(MISSING MANUAL STOCK-DIVIDER & MOUNTING BRACKET)
- WHEEL DRESSING UNIT (DRESSING CYCLE VIA CNC)
- WORK-PIECE ADAPTOR ON WORK-SPINDLE
- TOTALLY ENCLOSED WORK-AREA GUARDING W/POWERED
ACCESS DOOR
- WORK CHAMBER LIGHTING

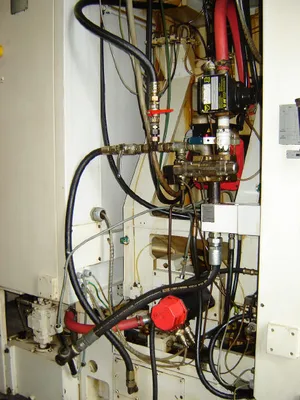

- HYDRAULIC WORK PIECE CHUCKING WITH DRAW-ROD
- FLOODED SUCTION-TYPE HYDRAULIC UNIT
- SMOKE AND MIST COLLECTOR/SYSTEM
- WHEEL LIFTING DEVICE
- GRINDING WHEEL LENGTH GAUGE
- DRESSING TOOL WEAR GAUGE
- ROUGH WHEEL DRESSING TOOLS
- FINISH WHEEL DRESSING TOOLS

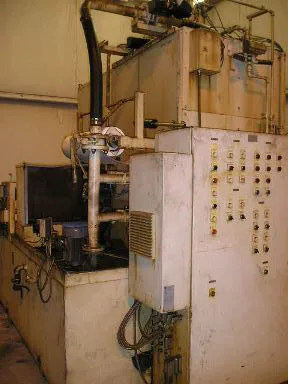

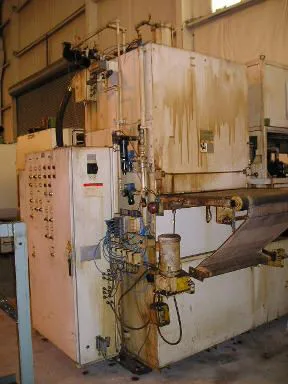

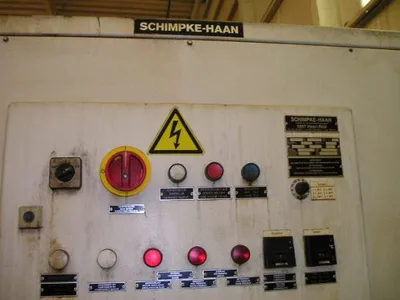

- COMPLETE COOLANT AND FILTRATION UNIT W/CHILLER FOR
GRINDING & HYDRAULIC OIL.
- ASSORTED WHEEL ADAPTORS AND MOUNTING EQUIPMENT
- BALANCE MEASURING DEVICE
- FULL COMPLEMENT OF ELECTRICS, (MOTORS/CONTROLS)
ELECTRICAL / HYDRAULIC CONTROLS TO EC
SPECIFICATIONS (400 VOLT, 50 HZ)
- GOOD ASSORTMENT OF ELECTRICAL SPARES & DRIVES FOR 150 CONTROL
- MISC. WRENCHES, SPANNERS, OPERATOR'S TOOLS
- MACHINE LEVELING SHOES

SPECIFICATIONS:

Workpiece Capacity

Extreme Ratio 10:1

Root Angle Range (B-Axis) -5 deg. To 90 deg.

Equivalent Root Angle Range -8 deg. To 90 deg.

(Equivalent refers to cradle type machine)

Full Depth (Maximum) .0.615" (16.00mm)

Face Width (Maximum) .1.600" (40.65mm)

Range of Tooth Numbers 5 to 200 inclusive

Maximum Gear Pitch Diameter of Typical

35° Spiral Angle Gear Using Maximum

Wheel Diameter 7.5" Diameter Wheel

At the Following Ratios: 1:1 6.75" (171.45mm)

2:1 8.50" (215.90mm)

5:1 8.50" (215.90mm)

Wheel Diameters 2.0" to 7.5"

Machine Specifications

X-Horizontal -6" to 4" (-152 to 102mm)

Y-Vertical -4" to 7" (-102 to 178mm)

Z-Sliding Base Travel 2" to 12" (51 to 304mm)

Machine Center to Work

Spindle Face 4.5" (114.30mm)

Axes Speeds

X-Horizontal 4.92"/Sec. (125mm/Sec.)

Y-Vertical 4.92"/Sec. (125mm/Sec.)

Z-Sliding Base 4.92"/Sec. (125mm/Sec.)

A-Workspindle RPM 0 to 30

B-Sliding Base 0 to 30 deg./sec.

C-Wheel Spindle 1000 to 6000 RPM

D-Dresser Spindle 1500 to 8000 RPM

Work-Spindle Dimensions

Diameter to Taper Hole - Large End 3-29/32"(#39 Taper)

Taper Per Foot 39/64"

Depth of Taper 3"

Electrical Equipment (Motors)

X-Horizontal Digital Servodrive FANUC 5s/3000 10k

Y- Vertical Dig Servodrive FANUC 5s/3000 10k w/brake

Z-Sliding Base Dig Servodrive FANUC 5s/3000 10k

A-Work Spindle Dig Servodrive FANUC 5s/3000 10k

B-Swinging Base Dig Servo FANUC 5s/3000 10k 2k sealed

C-Wheel Spdl Dig Servo FANUC 15p/1024 precision shaft

D-Dresser Digital Servodrive FANUC B0.3

Scavenger Pump AC 3Hp

Hydraulic Pump AC 3Hp

Chiller AC

Miscellaneous

Floor Space (Base Machine Only)L x W 95.75"x 63.5"

Floor Space (Base Machine Only)L x W 2432x1613mm

Height 90.75" (2305mm)

Weight (Approx.) 19,000 lbs.(10,140 kGs)

PRICE: F.O.B. OUR WAREHOUSE
