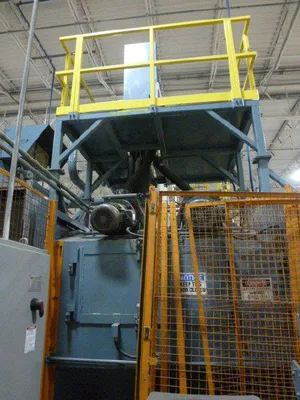

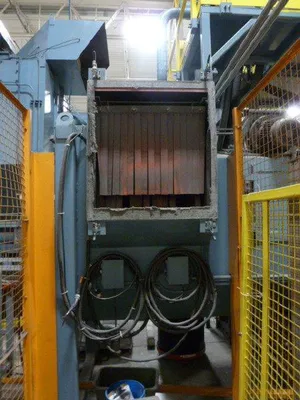

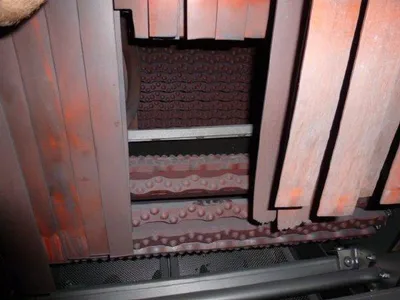

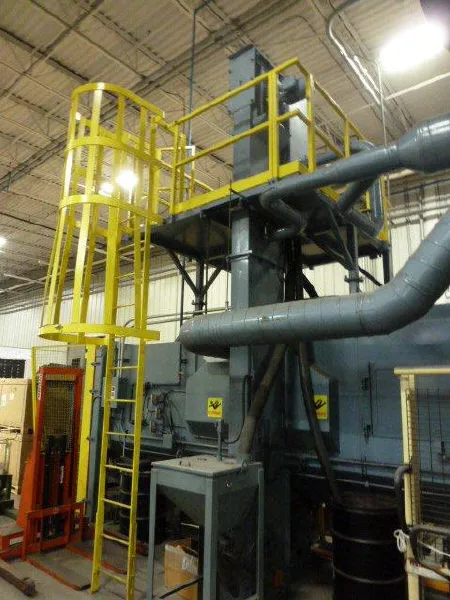

USF BCP/WHEELABRATOR TWO-WHEEL FLEX BELT "AUTO-BLAST"
CONTINUOS TUMBLAST FINISHING MACHINE
NEW 2001, SERIAL NO 2549, MODEL DE0001DE
(2) 15 HP AUTO BLAST WHEELS
ABRASIVE RECYCLING SYSTEM CONSISTING OF: 8" X 24"
ELEVATOR, 20" SEPERATOR, UPPER SCREW CONVEYOR
ROTARY SCREEN

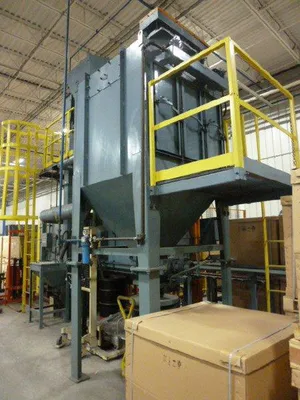

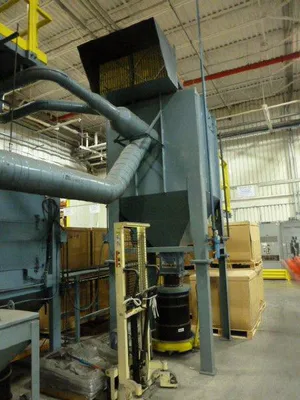

10 HP 3600 CFM JET PULSE SLIDE-IN CARTRIDGE TYPE
DUST COLLECTOR (MODEL JPSC)

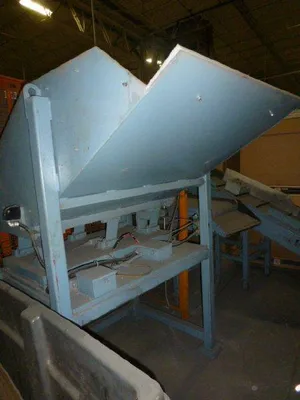

US FILTER TOTE DUMPER - ELECTRO-MAG VIBRATORY FEEDER

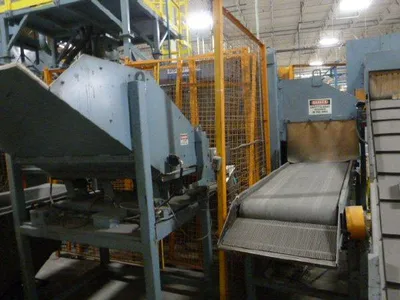

MILL ASSEMBLY - ENTRANCE & EXIT CONVEYOR
ABRASIVE ADDER (4 CU FT, 1100 LB)

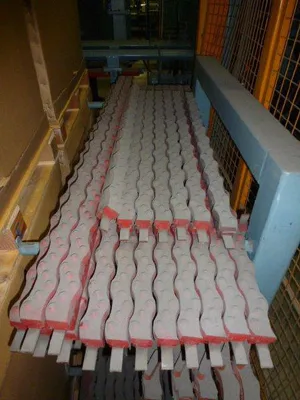

BRAND NEW SPARE PARTS INCLUDING: MOTORS, BELTS, ETC
Auto-Blast Wheel Diameters 13"
Auto-Blast Throwing Capacity Per Wheel 360 LB/MIN
Auto-Blast Throwing Capacity, Total 720 LB/MIN
Lower Screw Conveyor, Diameter 9"
Lower Screw Conveyor, Carrying Capacity 720 LB/MIN
Lower Screw Conveyor Speed, @ 18% Load 36 RPM

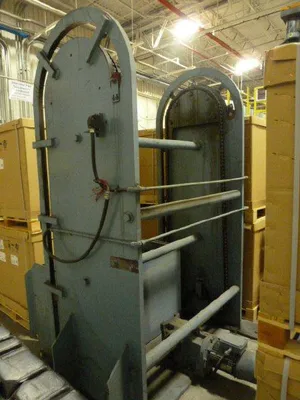

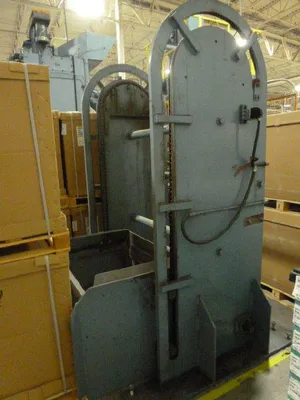

Tote Dumper, Load Capacity 3000 LBS
Tote Dumper, Line Speed 3 to 10 FPM
Tote Dumper, Speed 12 RPM
Elevator Bucket Spacing 7"
Elevator Capacity, Maximum 1500 LB/MIN
Elevator Speed 84 RPM
Mill Assembly, Line Speed 3 to 10 FPM
Mill Assembly, Speed 25 RPM

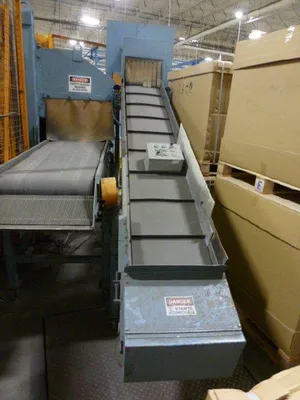

Entrance Conveyor, Width 16"
Entrance Conveyor, Length 10'
Entrance Conveyor, Line Speed 3 to 10 FPM

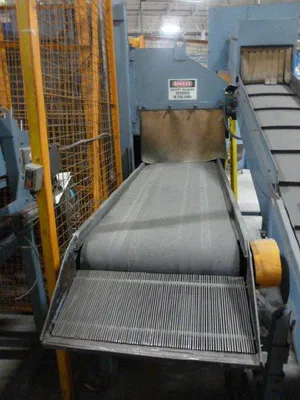

Exit Conveyor, Width 24"
Exit Conveyor, Length 8'
Exit Conveyor, Line Speed 3 to 10 FPM
(2) Auto-Blast Wheel Motors 15 HP EACH
Lower Screw Conveyor Motor 3/4 HP
Reclaim Shaker Motor 3 HP
Tote Dumper Motor 3 HP
Elevator Motor 1-1/2 HP
Mill Assembly Motor 1-1/2 HP
Entrance Conveyor Motor 3/4 HP
Exit Converyor Motor 3/4 HP
NOTE: THIS MACHINE APPEARS TO BE IN VERY GOOD
CONDITION WITH ONLY 1,833 ABRASIVE HOURS.
ORIGINAL APPLICATION WAS DESIGNED FOR MITSUBISHI
ELECTRIC AUTOMOTIVE TO REMOVE MEDIUM SCALE
FROM PLATE AND STRUCTURAL MEMBERS.
PRICE: F.O.B. OUR WAREHOUSE
Auto-blast wheel diameters: 13"
Auto-blast throwing capacity per wheel: 360 LB/MIN
Auto-blast throwing capacity, total: 720 LB/MIN
Lower screw conveyor, diameter: 9"
Lower screw conveyor, carrying capacity: 720 LB/MIN
Lower screw conveyor speed, @ 18%: LOAD 36 RPM
Tote dumper, load capacity: 3000 LBS
Tote dumper, line speed: 3 TO 10 FPM
Tote dumper, speed: 12 RPM
Elevator bucket spacing: 7"
Elevator capacity, maximum: 1500 LB/MIN
Elevator speed: 84 RPM
Mill assembly, line speed: 3 TO 10 FPM
Mill assembly, speed: 25 RPM
Entrance conveyor, width: 16"
Entrance conveyor, length: 10'
Entrance conveyor, line speed: 3 TO 10 FPM
Exit conveyor, width: 24"
Exit conveyor, length: 8'
Exit conveyor, line speed: 3 TO 10 FPM
(2) auto-blast wheel motors: 15 HP EACH
Lower screw conveyor motor: 3/4 HP
Reclaim shaker motor: 3 HP
Tote dumper motor: 3 HP
Elevator motor: 1-1/2 HP
Mill assembly motor: 1-1/2 HP
Entrance conveyor motor: 3/4 HP
Exit converyor motor: 3/4 HP
