34” GLEASON “463” HYPOID SPIRAL BEVEL GEAR GRINDER - 34” DIAMETER CAPACITY - 3” WIDTH CAPACTY - HYDRAULIC CHUCKING
Have one to sell?
$19,500.00 USD
ConditionUsed
1 available

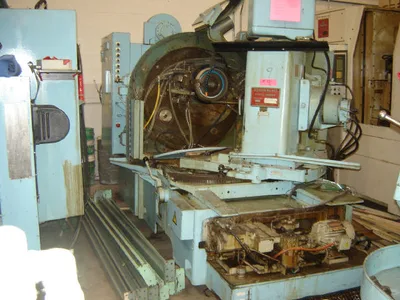

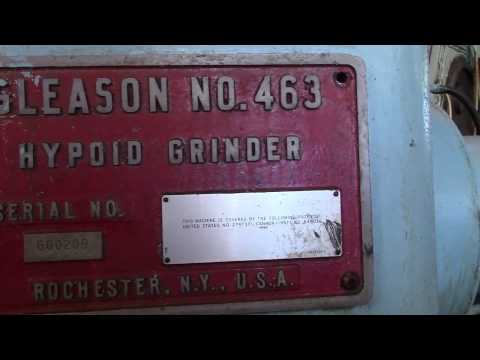

MODEL NO. 463 GLEASON HYPOID SPIRAL BEVEL GEAR GRINDING MACHINE
SERIAL NO. 660209, NEW 1967
SUITABLE FOR THE GRINDING OF SPIRAL BEVEL, ZEROL
BEVEL, AND HYPOID GEARS UP TO 34" (864MM) PITCH
DIAMETER AT 3:1 RATIO, 3" (76.2MM) FACE WIDTH
AND 2 DP (12.5-MODULE).
EQUIPMENT / FEATURES:

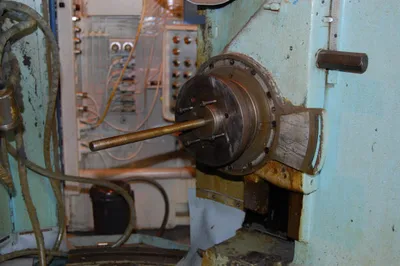

HYDRAULIC WORK CHUCKING MECHANISM
W/DRAW-IN BAR & NUT
LATER GENERATION WORK-HEAD BRAKE ASSEMBLY

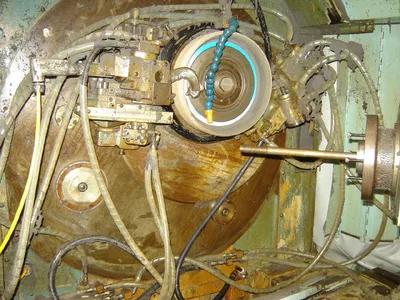

STANDARD END-DRESSER
STANDARD WHEEL SPINDLE AND STANDARD TAPER NOSE
(CAN BE CONFIGURED FROM 6" TO 18" WHEEL DEPENDING
ON DRESSER RING)

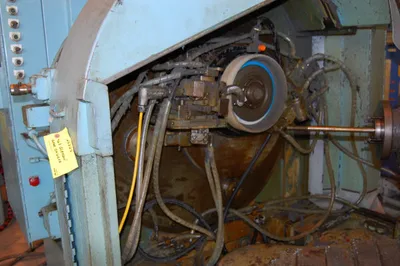

SIDE DRESSER BRACKET W/DRESSER-ARMS,
(W/40-DEGREE DRESSER-BLOCK)
STANDARD FEED CAM
ONE (1) GENERATING CAM
ONE (1) WHEEL MOUNT
ONE (1) WHEEL GUARD

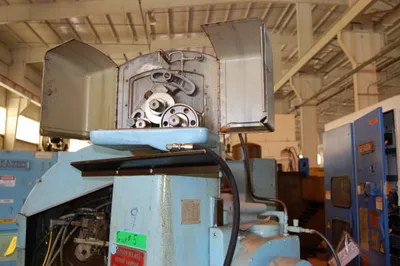

ONE SINGLE SET-UP OF FEED AND INDEX CHANGE GEARS,
FOR ONE WORKPIECE ONLY, AS LAST GROUND ON MACHINE

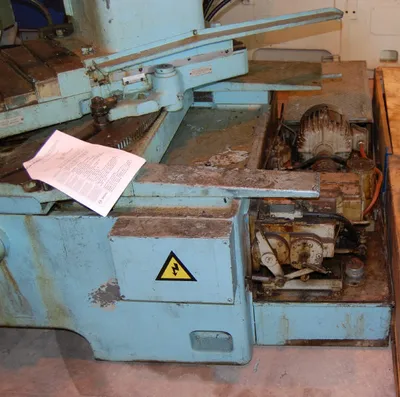

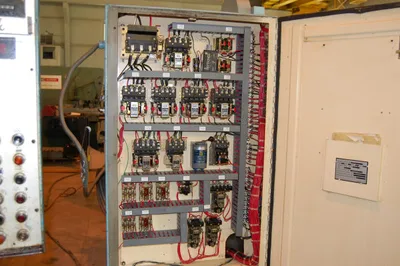

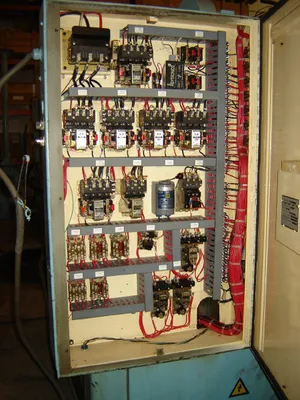

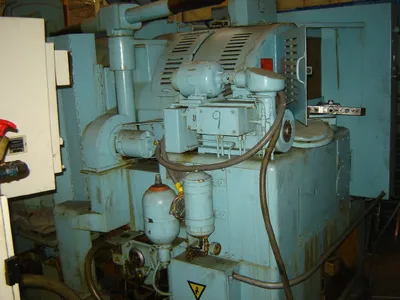

FULL COMPLEMENT OF ELECTRICS (MOTORS/CONTROLS)

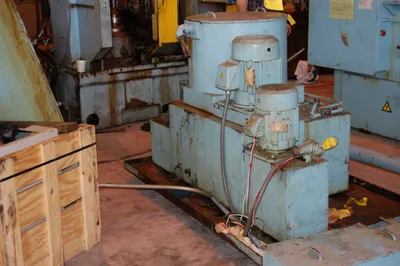

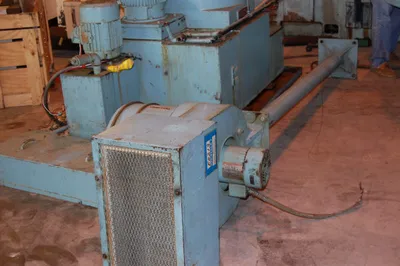

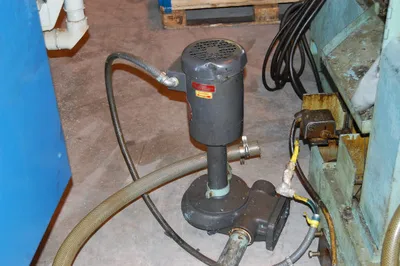

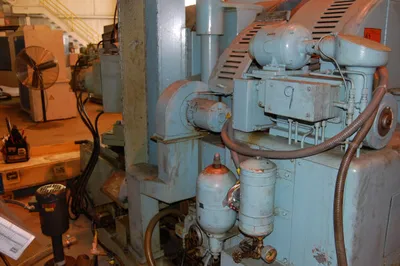

COMPLETE COOLANT PLANT, (PUMP TANK & PIPING,
INCLUDING CENTRIFUGAL FILTRATION UNIT
GUARDS, COVERS
Maximum cone distance (30-degree spiral
angle w/12" diameter wheel) 15" (381mm)
Maximum pitch angle, 90-degree shaft 70-degree, 34'
Minimum pitch angle, 90-degree shaft 5-degree, 42'
Maximum pitch diameter: (90-degree shafts):
0-degree spiral angle, 1:1 ratio 15.5" (393.7mm)
0-degree spiral angle, 3:1 ratio 23" (584.2mm)
30-degree spiral angle, 1:1 ratio 21" (533.4mm)
30-degree spiral angle, 3:1 ratio 31.5" (800.1mm)
40-degree spiral angle, 1:1 ratio 22.5" (571.5mm)
40-degree spiral angle, 3:1 ratio 34" 863.6mm)
Coarsest diametral pitch (module) 2 DP (12.7-module)
Maximum face width 3" (76.2mm)
Work spindle taper hole dia.(large end) 3-19/32"
Work spindle bore taper (per foot) 39/64"
Work spindle thru-hole diameter 6" (152mm)
Standard grinding wheel outside dia. 6"-8"(152-203mm)
Max. Workhead offset above/below center 4.5"(114.3mm)
Distance from machine center to
spindle nose 3"-20.5" (76-500mm)
Feed rate (seconds per tooth) 1.9 to 11.8 seconds
Approximate floor space 135" x 81"
Approximate floor space (3429x20574mm)
Approx. machine net weight 23,000 lbs(10,455kG)
