16-16 BARBER COLMAN HORIZONTAL GEAR HOBBER w/DOUBLE THREAD INDEX WORM
Have one to sell?
$12,500.00 USD
ConditionUsed
1 available

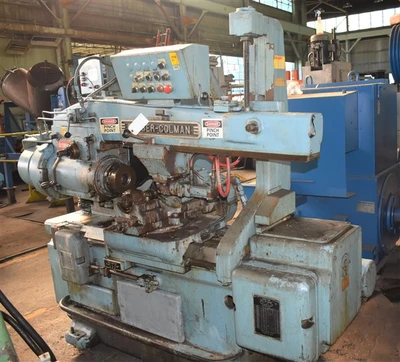

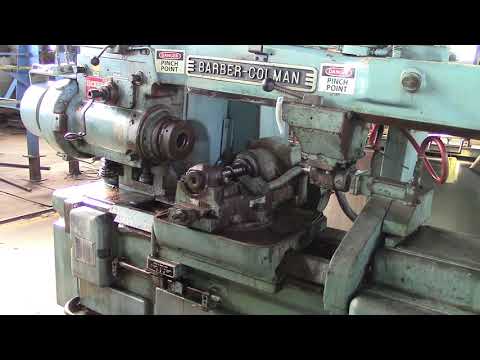

16-16 BARBER COLMAN HORIZONTAL GEAR HOBBER
NEW 1971, SERIAL NO. 4394, MODEL 16-16
SUITABLE FOR THE CUTTING OF SPUR/HELICAL GEARS, PINIONS, SPLINES,
AND OTHER WORKPIECES OF SIMILAR PROFILE UP TO 16" (400MM) PITCH DIAMETER,AND 16" (400MM) FACE WIDTH.
EQUIPMENT / FEATURES:
STANDARD HOBSLIDE (+/- 45 DEGREES SWIVEL)
ANTI-FRICTION HOB & WORK SPINDLE BEARINGS
ONE (1) HOB ARBOR
SINGLE SET-UP OF CHANGE GEARS
DOUBLE THREAD INDEX WORM
PNEUMATIC WORK CHUCKING
PNEUMATIC TAILSTOCK W/CENTER
SPECIAL TAPERED WEDGE INSERTED UNDER MAIN COLUMN
ENABLING A “FIXED” TAPER TO BE GENERATED ON GEARS/SPLINES
(CAN BE REMOVED FOR CONVERSION BACK TO STANDARD)
POWER RAPID TRAVERSE FOR HOB CARRIAGE
POWER FORCED LUBRICATION SYSTEM ( TRABON )
COMPLETE COOLANT SYSTEM, PUMP TANK & PIPING
FULL COMPLEMENT OF ELECTRICS (MOTORS/CONTROLS)
(PRESENTLY ARRANGED FOR 460 VOLT, 60 HZ OPERATON)
ASSORTED GUARDS/COVERS
Maximum rated diameteral pitch (nominal) 6 DP (4.2 module)
Maximum rated diameter of work 16" (406mm)
Maximum hob diameter 5" (27mm)
Maximum hob-slide travel 16" (406mm)
Maximum work slide travel 8" (203.2mm)
Maximum distance, work spindle centerline to
hob spindle centerline 8.75”(222mm)
Minimum distance, work spindle centerline to
Hob spindle centerline .75” (19.05mm)
Maximum distance work spindle face
to tailstock-center 44" (1117mm)
Work spindle thru-bore diameter 4.13" (105mm)
Hob speed range 59 to 425 rpm
Feed ranges .015 to .150 i.p.r.
Main drive motor 5 HP/1800 rpm
Rapid traverse 2 HP
Coolant pump 1/4 HP
Lubrication pump 1/20 HP
Floor space required 90”x 82" (2267x2082mm)
Machine overall height 84” (2134mm)
Machine net weight (approx) 7,600 lbs. (3628 kGs)
PRICE: F.O.B. OUR WAREHOUSE
Maximum rated diameteral pitch (nominal): 6 DP (4.2 MODULE)
Maximum rated diameter of work: 16" (406MM)
Maximum hob diameter: 5" (27MM)
Maximum hob-slide travel: 16" (406MM)
Maximum work slide travel: 8" (203.2MM)
Hob spindle centerline: .75” (19.05MM)
To tailstock-center: 44" (1117MM)
Work spindle thru-bore diameter: 4.13" (105MM)
Hob speed range: 59 TO 425 RPM
Feed ranges: .015 TO .150 I.P.R.
Main drive motor: 5 HP/1800 RPM
Rapid traverse: 2 HP
Coolant pump: 1/4 HP
Lubrication pump: 1/20 HP
Floor space required: 90”X 82" (2267X2082MM)
Machine overall height: 84” (2134MM)
Machine net weight (approx): 7,600 LBS. (3628 KGS)
