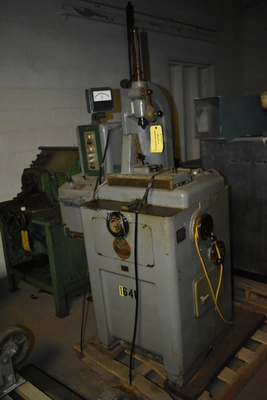

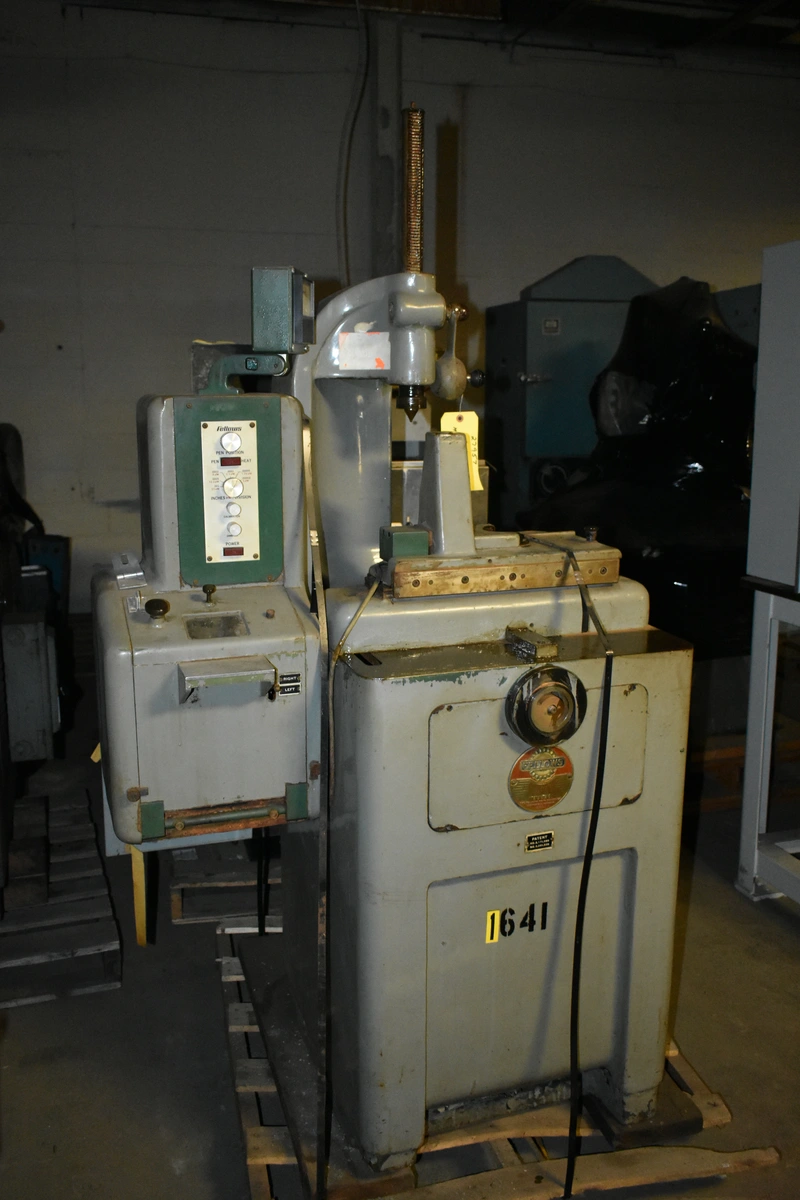

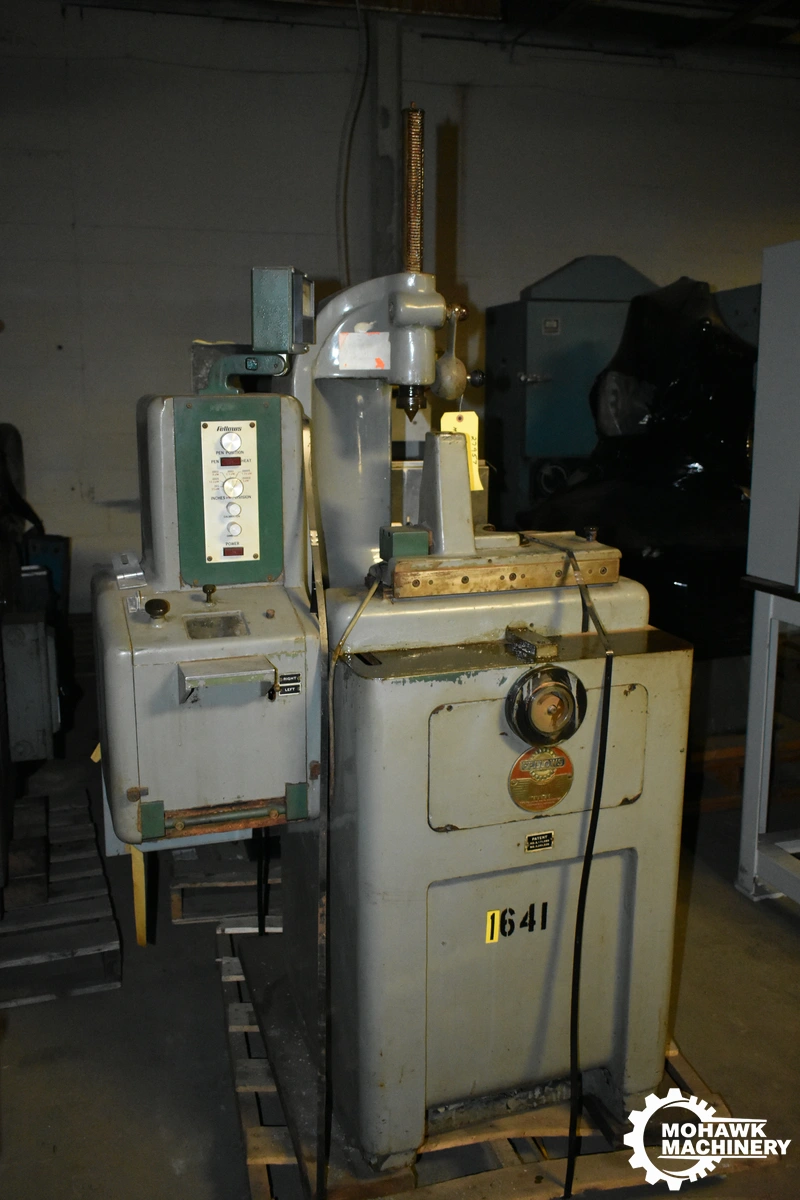

12M FELLOWS INVOLUTE GEAR INSPECTION MEASURING MACHINE w/HEATED PEN POSITIONING

Maximum Pitch Diameter 12"/(305mm)

Maximum Travel Pointer Holder 9.75"/(248mm)

Maximum Travel Work Spindle (Elevation) 4"/(102mm)

Maximum Tailstock Adjustment 26.5"/(762mm)

Maximum Workpiece Weight 350 LBS.

Maximum Workpiece Weight (159 kgs)

Machine Overall Length 38"/(965mm)

Machine Overall Width 36"/(914mm)

Machine Overall Height 82"/(2083mm)

Machine Net Weight 2,220 LBS./(1007kg)

NOTES: Suitable For The Checking/Recording Of

The Deviation In Gear Tooth Involute Profile

On Spur & Helical Gears, Both Internal & External

Up To 12" (304.8mm) Pitch Diameter.

F.O.B. OUR WAREHOUSE
