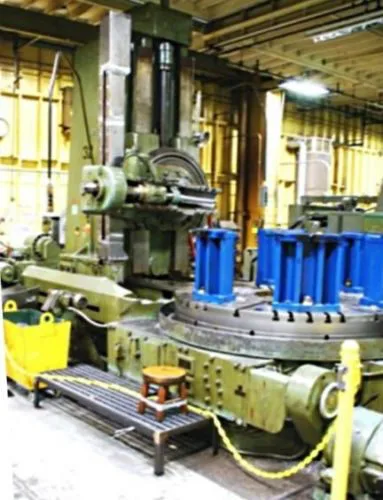

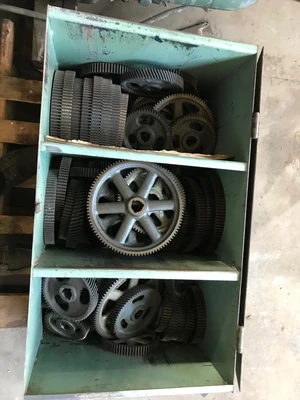

96H GOULD & EBERHARDT GEAR HOBBER w/OUTBOARD SUPPORT - CHANGE GEARS - CHIP CONVEYOR

Diametral Pitch Rating, Maximum 1.5 DP

Spur Gear Diameter Maximum Rating

w/Outboard Support In Place 96"

Spur Gear Diameter Maximum Rating

w/Outboard Support Removed 125"

Face Capacity, Spur Gears 42"

Table Load Capacity, Maximum 75000 LBS

Center Distance Work & Hob Arbor, Max 76"

Center Distance Work & Hob Arbor, Min 8"

Work Table, Diameter 78"

Hole Diameter In Table 26"

Hob Diameter, Range 1.875" to 7"

Index Worm Gear, Diameter 76"

Worm Shaft Speed, Maximum 400 RPM

(14) Hob Speeds, Range 6 to 100 RPM

Cutter Feeds, Range .45 to 8 IPM

Feeds, Range .003 to .020 IPR

Floor Space Required, L x W 26' x 9'

Overall Height 15'

Weight, Approximately 85000 LBS

CONDITION: MACHINE APPEARS TO BE IN EXCELLENT RUNNING
CONDITION FROM HIGH ACCURACY U.S. NAVAL FACILITY.

PRICE: F.O.B. OUR WAREHOUSE
Diametral pitch rating, maximum: 1.5 DP
W/outboard support in place: 96"
W/outboard support removed: 125"
Face capacity, spur gears: 42"
Table load capacity, maximum: 75000 LBS
Center distance work & hob arbor, max: 76"
Center distance work & hob arbor, min: 8"
Work table, diameter: 78"
Hole diameter in table: 26"
Hob diameter, range: 1.875" TO 7"
Index worm gear, diameter: 76"
Worm shaft speed, maximum: 400 RPM
(14) hob speeds, range: 6 TO 100 RPM
Cutter feeds, range: .45 TO 8 IPM
Feeds, range: .003 TO .020 IPR
Floor space required, l x w: 26' X 9'
Overall height: 15'
Weight, approximately: 85000 LBS
