13" GLEASON "13" ANGULAR BEVEL GEAR TESTER (COMPONENTS & PARTS)
Have one to sell?
ConditionUsed
1 available
$6,950.00 USD

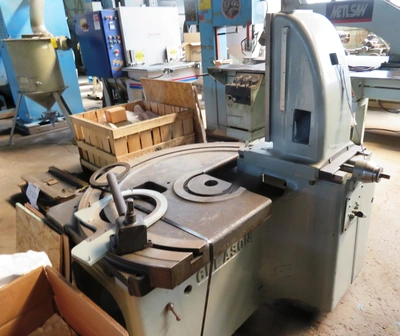

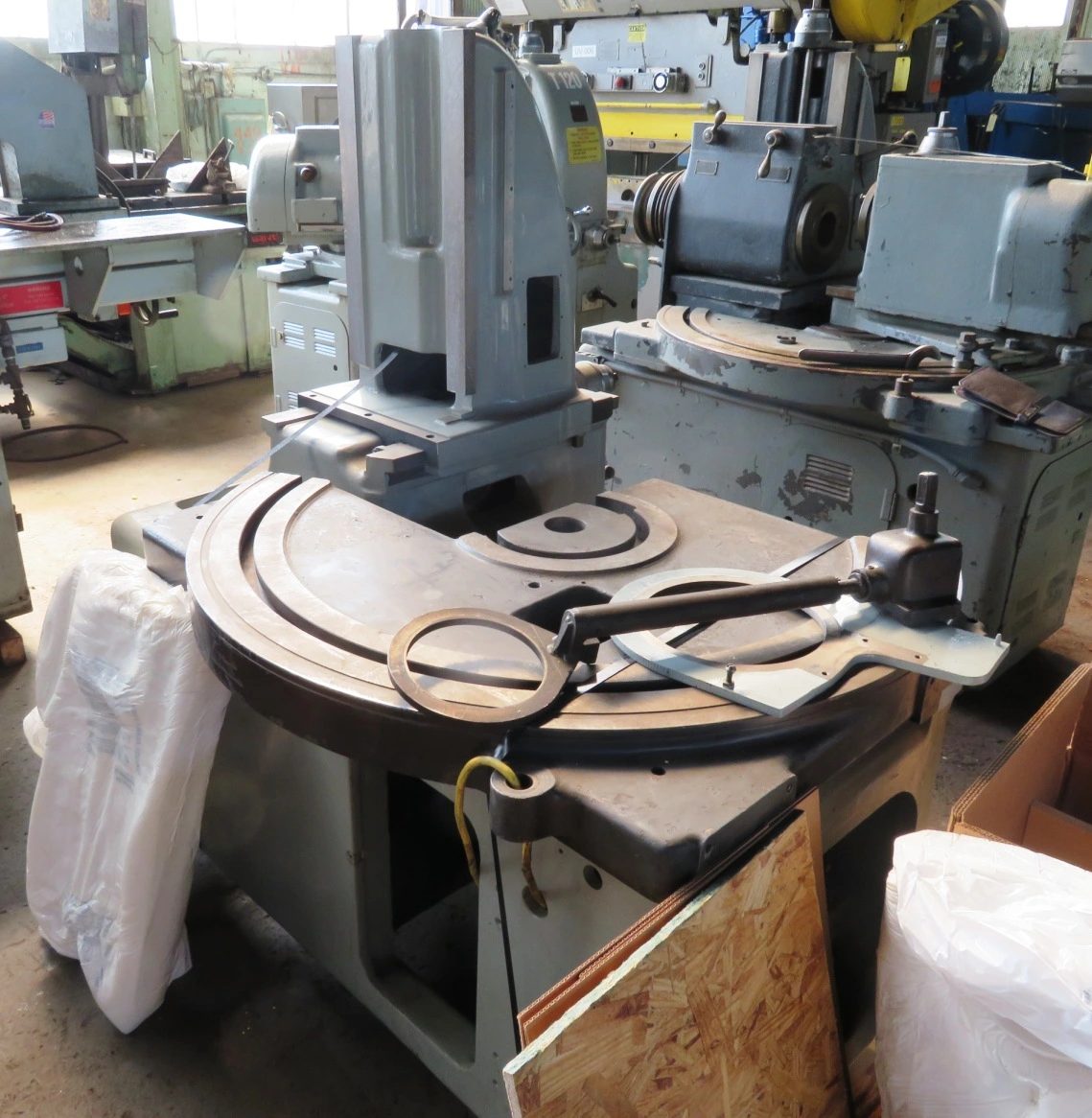

NO. 13 GLEASON AUGULAR BEVEL GEAR TESTER
SERIAL# 17709
Suitable for the running testing/checking for smoothness
and quietness of operation, and inspection of actual tooth contact,
under load, (tooth bearing), on a wide variety of straight and
curved tooth bevel gears of any shaft angle, including hypoid, spur,
helical, internal gears, as well as worm and worm-wheel combinations
up to 13” maximum diameter.

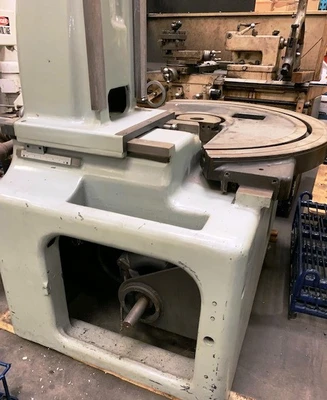

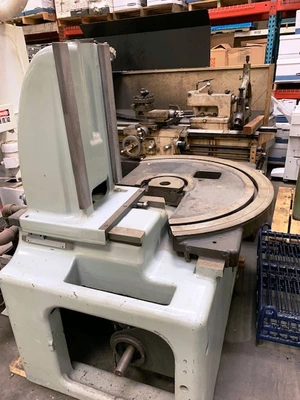

The machine remains completely dismantled, as it was being rebuilt by “in-house” technicians at the ARROW GEAR COMPANY, Downers Grove, IL. The machine has been 80% scraped-in, complete with all parts, but not yet re-assembled.
EQUIPMENT / FEATURES:
4‑speed Main drive motor w/drum switch speed selector
3 HP, 3phase, 60 cycles, 220 volts
2-step Drive pulley
Forward/reverse direction spindle rotation via push button
Manual spindle braking, with load meter
Full complement of electrics (motors/controls)

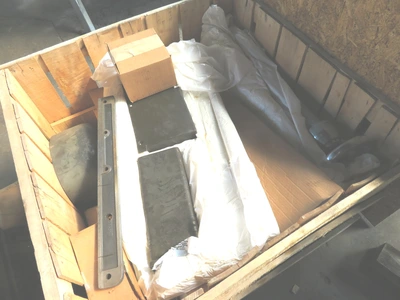

Hand-wheels, guards, covers
Operator's manual, parts list, wiring diagram
NO. 13 GLEASON AUGULAR BEVEL GEAR TESTER
SERIAL# 17709
Suitable for the running testing/checking for smoothness
and quietness of operation, and inspection of actual tooth contact,
under load, (tooth bearing), on a wide variety of straight and
curved tooth bevel gears of any shaft angle, including hypoid, spur,
helical, internal gears, as well as worm and worm-wheel combinations
up to 13” maximum diameter.
The machine remains completely dismantled, as it was being rebuilt by “in-house” technicians at the ARROW GEAR COMPANY, Downers Grove, IL. The machine has been 80% scraped-in, complete with all parts, but not yet re-assembled.
EQUIPMENT / FEATURES:
4‑speed Main drive motor w/drum switch speed selector
3 HP, 3phase, 60 cycles, 220 volts
2-step Drive pulley
Forward/reverse direction spindle rotation via push button
Manual spindle braking, with load meter
Full complement of electrics (motors/controls)
Hand-wheels, guards, covers
Operator's manual, parts list, wiring diagram
PRINCIPAL SPECIFICATIONS:
Maximum diameter gear (nominal) ................................ 13" (330.2mm)
Range of angles ............................................................. 0 to 180 degrees
Range of offset pinion spindle: Above center ................ 8" (203.2mm)
Below center ................................................................. 2" (50.8mm)
Max. center distance, (spurs, helicals and herringbones) 8" (203.2mm)
Drive spindle bore 39-Taper (diameter large end) .......... 3-29/32" (99.2mm)
Drive spindle bore, (taper per ft) ...............................….. 39/64" (15.478mm)
Brake spindle bore, 14-Taper (diameter large end) ....... 2 -19/64" (58.34mm)
Brake spindle bore, (taper per ft) ..............................…..1/2" (12.7mm)
Floor space .................................................................… 60.5" x 80.5" (1537x2045mm)
Approx. machine net weight ........................................... 5,200 lbs (2364 kGs)
PRICE: F.O.B. OUR WAREHOUSE ...... AS IS ...........
