15 GLEASON HYPOID BEVEL GEAR BLANK CHECKER TESTER - 2” TO 15” DIAMETER CAPACITY

Description

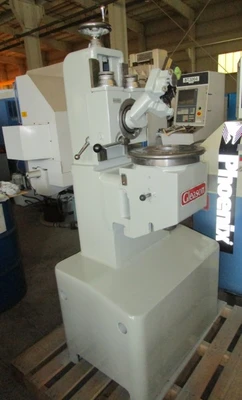

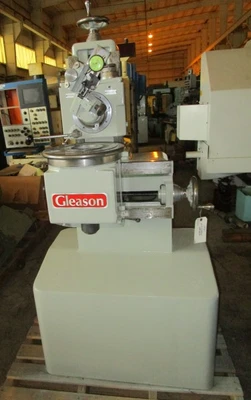

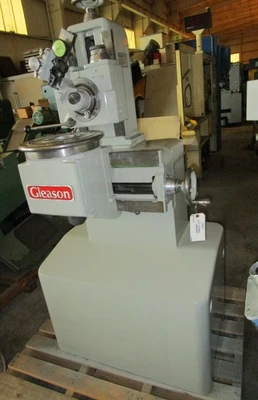

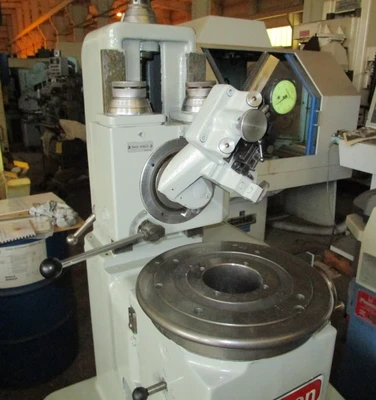

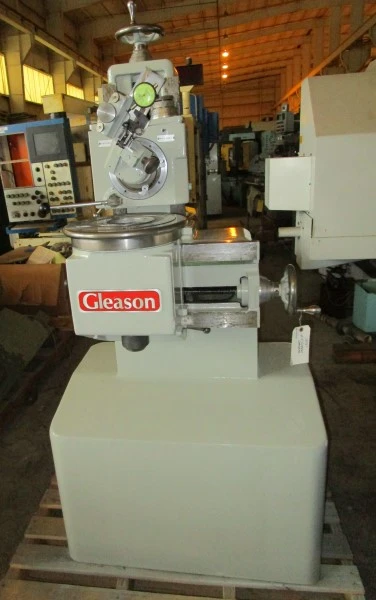

MODEL NO. 15 GLEASON BLANK CHECKING MACHINE
SERIAL NO.674704 ( NEW 1968 )

SUITABLE FOR CHECKING BEVEL AND HPOID GEAR BLANKS FROM
2" (50.8MM) TO 15" (381MM) DIAMETER

PRINCIPAL SPECIFCATIONS:

Diameter of gear blank maximum 15" (381mm)

Diameter of gear blank minimum 2" (51mm)

Spindle nose to Crown

(maximum for gears and pinions) 2" (51mm)

Spindle nose to Crown (minimum for pinions)

Back angle up to 70-degrees 4" (102mm)

Back angle 70-75 degrees 4.25” (108mm)

Back angle 75-80 degrees 4.5” (114mm)

Back angle 80-95 degrees 4.75” (121mm)

Back angle over 85-degrees 5” (127mm)

Travel of indicator (face angle) 0 - 90 degrees

Travel of indicator (back angle) 0 - 90 degrees

Maximum length between centers 17.75” (450mm)

Minimum length between centers 6.5” (165mm)

Diameter of work spindle bore (large end) 3-29/32" (99mm)

Spindle Taper per foot 39/64” (1:20)

Depth of spindle taper 6” (153mm)

Floor space 22"x 32-11/16" (560x830mm)

Approx. machine net weight 1,900 Lbs. (860 kGs)

PRICE: F.O.B. OUR WAREHOUSE
Diameter of gear blank maximum: 15" (381MM)
Diameter of gear blank minimum: 2" (51MM)
(maximum for gears and pinions): 2" (51MM)
Back angle up to 70-degrees: 4" (102MM)
Back angle 70-75 degrees: 4.25” (108MM)
Back angle 75-80 degrees: 4.5” (114MM)
Back angle 80-95 degrees: 4.75” (121MM)
Back angle over 85-degrees: 5” (127MM)
Travel of indicator (face angle): 0 - 90 DEGREES
Travel of indicator (back angle): 0 - 90 DEGREES
Maximum length between centers: 17.75” (450MM)
Minimum length between centers: 6.5” (165MM)
Diameter of work spindle bore (large end): 3-29/32" (99MM)
Depth of spindle taper: 6” (153MM)
Floor space: 22"X 32-11/16" (560X830MM)
Approx. machine net weight: 1,900 LBS. (860 KGS)
