18” GLEASON “D-15S” PEDESTAL MOUNTED CUTTER TRUING DEVICE FOR CHECKING & TRUING THE BLADES IN CUTTERS ON GLEASON CURVED-TOOTH BEVEL GEAR CUTTING MACHINES - CAPACITY CUTTER DIAMETER RANGE 3-1/2” TO 18”

Description

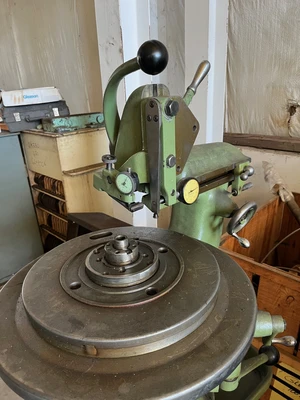

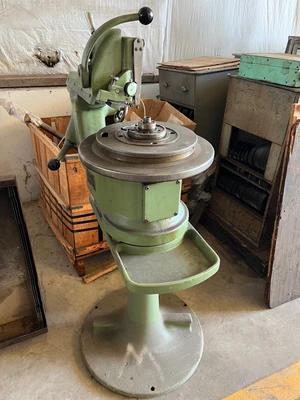

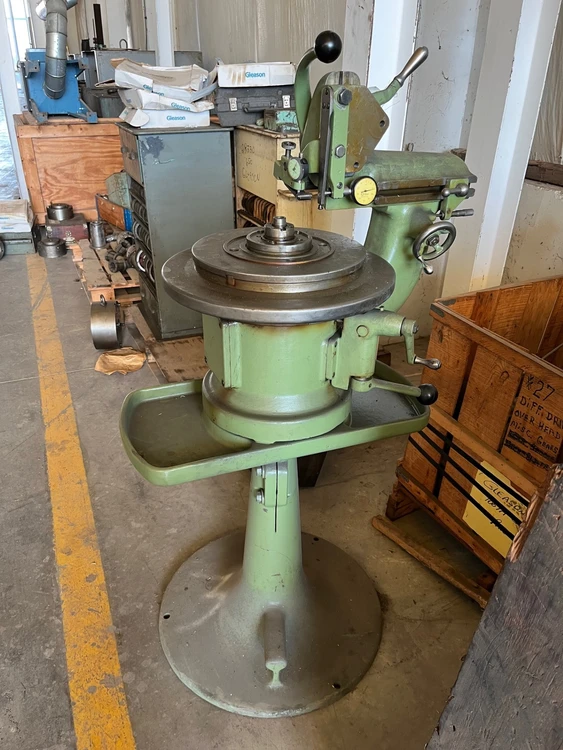

D-15S GLEASON PEDESTAL MOUNTED CUTTER TRUING DEVICE FOR CHECKING & TRUING THE BLADES IN CUTTERS ON GLEASON CURVED-TOOTH BEVEL GEAR CUTTING MACHINES

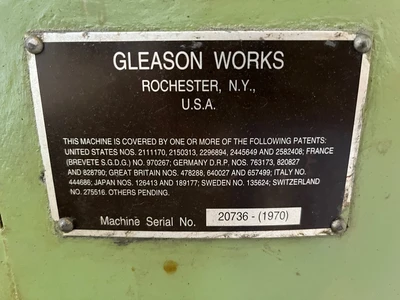

SERIAL NO. 20736

THE DEVICE IS CAPABLE OF HANDLING ALL TYPES OF ROUGHING AND/OR
FINISHING CUTTERS FROM 3.5” (80MM) TO 18” (450MM) DIAMETER

EQUIPMENT / FEATURES:
PEDESTAL STAND
DIAL INDICATOR(S)
DIAMETER MEASURING DEVICE

SPECIFICATIONS:

Capacity, diameter cutters 3.5”, 6”, 7.5”, 9”, 12” & 18”

Floor space 40” x 24” x 40”

Net weight 700 lbs.

Export Shipment 900 lbs.

PRICE: F.O.B. OUR WAREHOUSE
Capacity, diameter cutters: 3.5”, 6”, 7.5”, 9”, 12” & 18”
Floor space: 40” X 24” X 40”
Net weight: 700 LBS.
Export shipment: 900 LBS.
