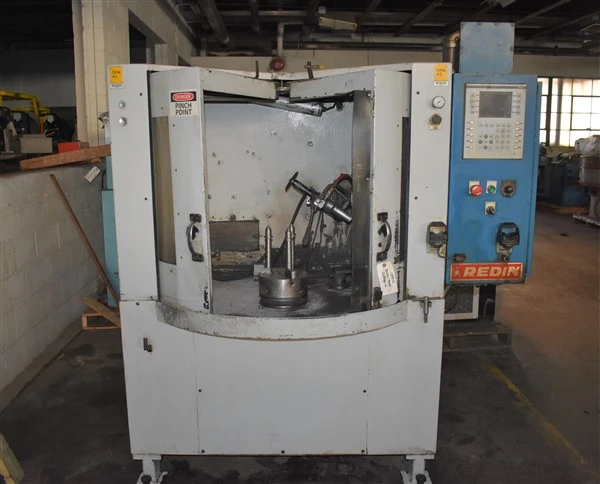

20” REDIN GEAR DEBURRER w/(1) GRINDING SPINDLE - 8” 3-JAW WORK CHUCK

REDIN GEAR DEBURRER
SERIAL NO 2000-9
SUITABLE FOR THE AUTOMATIC DEBURRING OF SPUR AND HELICAL
GEARS, STRAIGHT AND SPIRAL BEVEL GEARS, SPROCKETS,
WORM-GEARS, AND SIMILAR WORK-PIECES UP TO 20" (508MM) DIAMETER

EQUIPMENT / FEATURES:

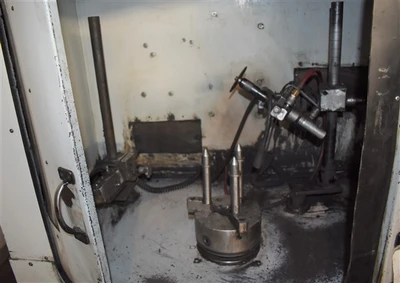

ONE (1) ADJUSTABLE GRINDING SPINDLE W/AIR-MOTOR
W/BRACKET AND TRAVEL-POST
ADDITIONAL GRINDING SPINDLE BRACKET AND POST (W/O AIR MOTOR SPINDLE)

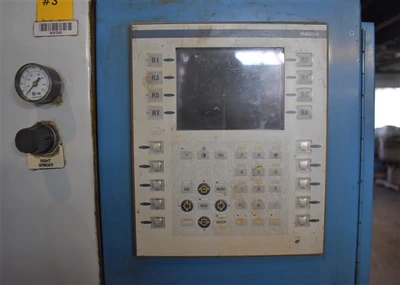

AUTOMATIC GRINDING/DEBURRING CYCLE(S) VIA MAGELIS PLC CONTROL WITH
MONITOR AND SCREEN, AND SQUARE-D VS-DO7 ADJUSTABLE SPEED DRIVE
3-JAW 8-INCH DIAMETER WORK SPINDLE CHUCK
CABINET BASE W/FULL WORK ENCLOSURE
FULL COMPLEMENT OF ELECTRICS (CONTROLS, PNEUMATICS)
MANUAL FOR ADJUSTABLE SPEED DRIVE

PRINCIPAL SPECIFICATIONS:
Maximum O.D 20" (508mm)
Minimum O.D. 0" (0mm)
Maximum I.D. 16" (406.4mm)
Minimum I.D. .75” (19.05mm)
Maximum face width 12" (304.8mm)
Minimum D.P. 20 DP (1.27 module)
Maximum workpiece weight 600 Lbs. (273 kGs)
Grinding wheel speed 13,500 rpm
Work spindle speed .23 to 9.4 rpm
Floor space 61”x 41” (1651x1041mm)
Approx net weight 1,375 Lbs.

NOTE: THIS GEAR DEBURRER WAS BUILT FOR A SPECIFIC JOB
FOR CATERPILLAR. YOU WILL PROBABLY HAVE TO DO SOME
MODIFICATIONS IN ORDER FOR MACHINE TO DO YOUR JOB.
WE ARE NOT GOING TO RUN THIS MACHINE.

PRICE: F.O.B. OUR WAREHOUSE
Maximum o.d: 20" (508MM)
Minimum o.d.: 0" (0MM)
Maximum i.d.: 16" (406.4MM)
Maximum face width: 12" (304.8MM)
Minimum d.p.: 20 DP (1.27 MODULE)
Maximum workpiece weight: 600 LBS. (273 KGS)
Grinding wheel speed: 13,500 RPM
Work spindle speed: .23 TO 9.4 RPM
Floor space: 61”X 41” (1651X1041MM)
Approx net weight: 1,375 LBS.
