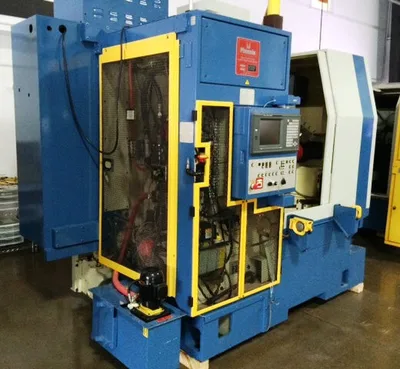

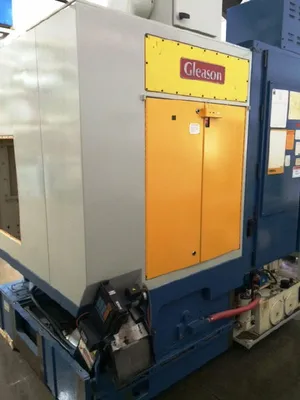

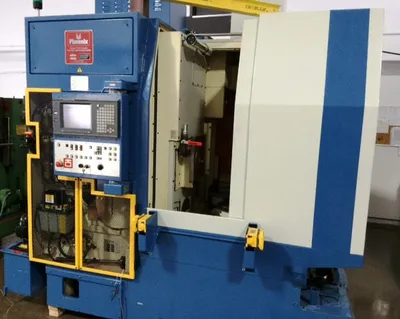

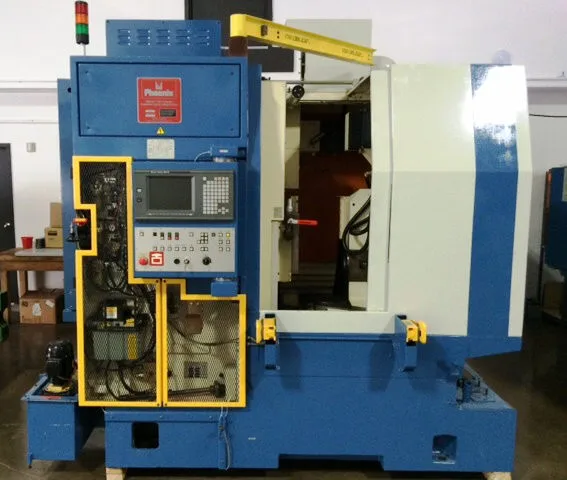

175HC GLEASON PHOENIX "CNC" SPIRAL BEVEL GEAR GENERATOR

Description

175HC GLEASON PHOENIX "CNC" SPIRAL BEVEL GEAR GENERATOR(S) - 4 AVAILABLE
SERIAL 948302, NEW 2001
SN 936206, SN 930703, NEW 1999
SN 926809, NEW 1997

SUITABLE FOR THE CUTTING OF SPIRAL BEVEL AND
HYPOID GEARS AND PINIONS UP TO 8.5" (216MM)
DIAMETER VIA "FACE-MILLING" AND 7.5" (190MM) VIA
"FACE-HOBBING" METHOD

EQUIPMENT / FEATURES: ( EACH MACHINE )
MACHINE FURNISHED WITH MACHINE MOUNTED,
AIR-CONDITIONED, ELECTRICAL ENCLOSURE, OPERATOR'S
CONTROLS LOCATED AT FRONT OF MACHINE, ADJACENT
TO POWERED ACCESS DOOR.
FANUC MODEL 160I COMPUTER CONTROL WITH SPIRAL
BEVEL GEAR CUTTING SOFTWARE AND AUTOMATIC SET-UP,
WITH 10.4" LCD FLAT COLOR DISPLAY.
WORK SPDL (A) SWINGING BASE (B) CUTTER SPDL (C)
HORIZONTAL (X) VERTICAL (Y) SLIDING BASE (Z)
SUMMARY STORAGE CAPACITY FOR 100 PARTS.
SECURITY KEY FOR CONTROL OF SET-UP.
CYCLE FAULT MONITORING
PRODUCTION AND SHARPEN - CUTTER COUNT DISPLAY

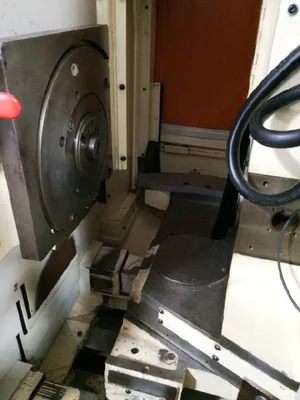

HYDRAULIC WORK-PIECE CHUCK (W/DRAW-ROD & NUT).
WORK SPINDLE BORE (3-29/32: (#39 TAPER).
TOTALLY ENCLOSED WORK AREA GUARDING WITH POWERED
ACCESS DOOR.
WORK CHAMBER LIGHTING
FOOT SWITCH FOR HYDRAULIC CHUCKING OF WORK-PIECE
POWER FORCED LUBRICATION SYSTEM TO ALL WORKING
elements
ARRANGEMENT FOR "DRY-CUTTING" WITH HIGH SPEED CUTTER
AND WORK SPINDLES, (W/OPTIONAL AIR-ASSIST CHIP
REMOVAL SYSTEM)
ELECTRICAL EQUIPMENT FOR 380 VOLT, 50 HZ, OR
460 VOLT, 60 HZ, 3-PHASE
INSTALLATION. CONTROL CIRCUIT IS 115 VAC WITH
24 VDC INPUT/OUTPUT.
ELECTRICS TO COMPLY WITH PHOENIX NFPA 79-1987

PRICE: PLANT LOCATION NEWINGTON CT $225,000.00
Root angle range (b axis): -5 ° TO 90 DEG.
Equivalent root angle range: -5 ° TO 90- DEG;
1: 1 6.750" (171.00MM)
2: 1 8.500" (216.00MM)
5: 1 8.500" (216.00MM)
Maximum full depth: 0.625" (16.00MM)
Maximum face width: 1.600" (40.65MM)
Maximum swinging base travel (b-axis): 5 ° TO 90°
Maximum vertical travel (y-axis): (-102MM TO178MM)
Max horizontal travel (x-axis): (-152MM TO 102MM)
Sliding base travel (z-axis): (51MM TO 304MM)
Machine center to work spdl face (fixed): (114.30MM)
Tooth number: 5 TO 200 INCLUSIVE
Fine pitch: (102MM TO 152MM)
Coarse pitch: (152MM ONLY)
B-axis - swinging base (degrees per second): 30°/SEC.
A-axis - work spindle (face milling) (rpm): 240-960
A-axis - work spindle (face hobbing) (rpm): 240-960
C-axis - cutter spindle (rpm): 380-910
X-axis - horizontal: 4.92"/SEC(125MM/SEC)
Y-axis - vertical: 4.92"/SEC(125MM/SEC)
Z-axis - sliding base: 4.92"/SEC(125MM/SEC)
(face mill), ds, hhr: FANUC 30S/3000 20K
(face hobb), ds, hhr: FANUC 30S/3000 20K
C-axis - cutter spindle dig spdl: FANUC 15P 1024
X-axis - horizontal, ds: FANUC 5S/3000 10K
Y-axis - vertical, ds w/brake: FANUC 5S/3000 10K
-coolant, ac induction: 3 HP
-hydraulic, ac induction: 3 HP
Floor space: (2432X1613MM)
Height (less mist collector: 90.75" (2305MM)
Weight (approx.): 18,000 LBS(8,200 KG)
