2200 ILLINOIS DOUBLE COLUMN, PARALLEL-AXIS GEAR ROLLING MACHINE

Description

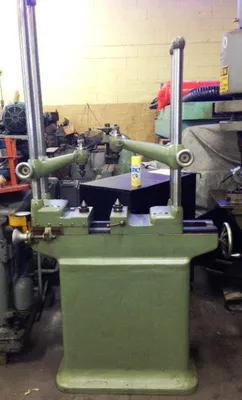

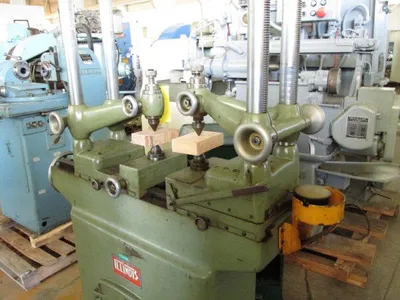

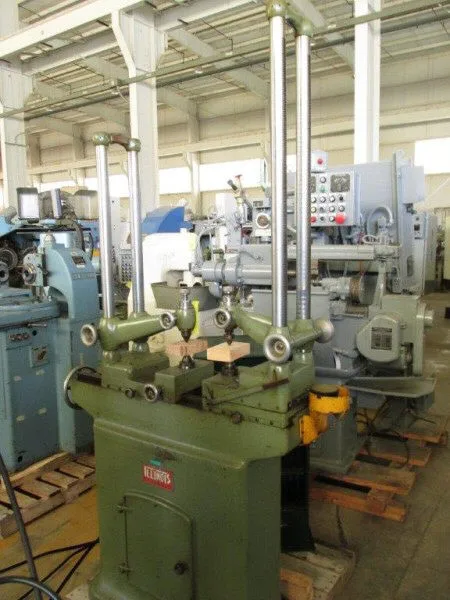

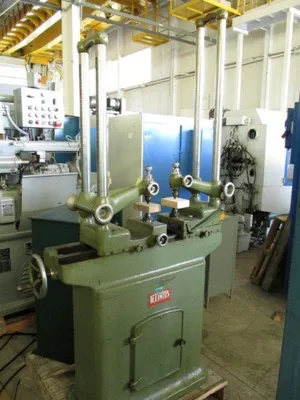

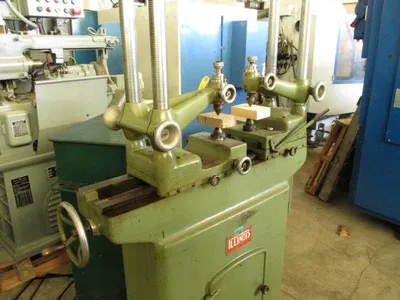

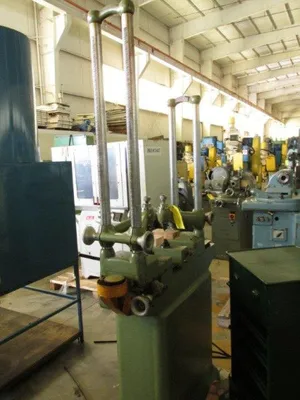

ILLINOIS DOUBLE COLUMN, PARALLEL-AXIS GEAR ROLLING MACHINE
SERIAL #7 (NEW MID-1960S), 2200 SERIES

SUITABLE FOR THE FUNCTIONAL CHECKING OF TOTAL COMPOSITE
ERROR OF SPUR AND HELICAL GEARS, AS WELL AS SHAFT
MOUNTED GEARS, PINIONS, AND SPLINES, WITH A
MAXIMUM NOMINAL WORK GEAR DIAMETER OF 18”
(457.2MM), WITH THE ADDED CAPABILITY OF MOUNTING
WORK-PIECES WITH SHAFT LENGTH(S) OF 25.5”/35.5”
(648/902MM) IN LENGTH ON THE RESPECTIVE TAILSTOCK COLUMN(S)

EQUIPMENT / FEATURES:
MACHINE WITH CAST PEDESTAL MAIN-BASE AND V-WAYS FOR WORK-GEAR
AND MASTER GEAR SLIDE(S) WITH MAIN-BASE STORAGE CLOSET & DOOR
WORK-GEAR (CAPACITY-SLIDE) WITH WORK-ARBOR POST/CENTER, POSITIONING
HAND-WHEEL, AND TAILSTOCK COLUMN WITH ADJUSTABLE HEIGHT TAILSTOCK
OVER-ARM, AND ADJUSTABLE CENTER
CLAMPING KNOB FOR WORK-GEAR (CAPACITY SLIDE)
FLOATING MASTER-GEAR SLIDE WITH MASTER GEAR ARBOR POST/CENTER,
1/10,000 DIAL INDICATOR, AND TAILSTOCK COLUMN WITH ADJUSTABLE
HEIGHT TAILSTOCK OVER-ARM, AND ADJUSTABLE CENTER
UN-LOADING LEVER FOR MASTER-GEAR SLIDE POST
SPRING TENSION ADJUSTMENT FOR FLOATING MASTER GEAR SLIDE
PRECISION GROUND GAUGING SURFACE BETWEEN MASTER-GEAR AND
WORK-GEAR SLIDE FACE FOR ACCUTATELY SETTING CENTER DISTANCE.

F.O.B. OUR WAREHOUSE
And master gear slide post/center: 3.5” (88.9MM)
Post/center and tailstock center: 35.5” (902MM)
And face of tailstock column: 9.5” (228.6MM)
Max.(nominal) shaft-mounted work gear diameter: 18” (457.2MM)
Maxmum movement of floating unit/slide: .150” (3.81MM)
Maximum disengagement movement: .75” (19.05MM)
Machine overall length: 35” (889MM)
Machine overall width: 16” (406.4MM)
Machine approx..net weight: 401 LBS. (182 KGS)
