641 GLEASON “G-PLETE” HYPOID SPIRAL BEVEL GEAR GENERATOR - 16” DIAMETER CAPACITY - 2.6” FACE WIDTH CAPACITY - HYDRAULIC CHUCKING
Have one to sell?
$39,500.00 USD
ConditionUsed
1 available

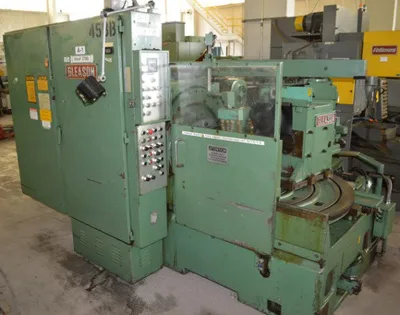

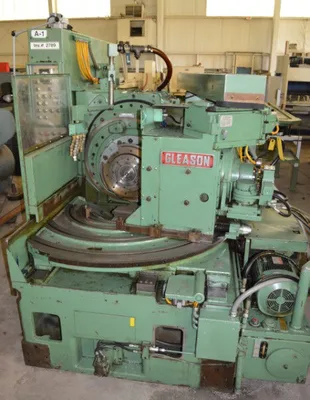

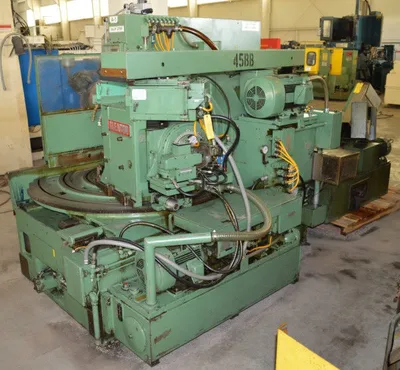

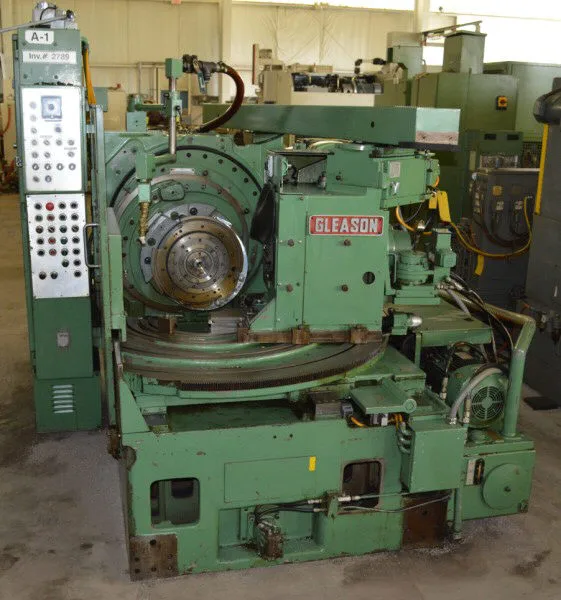

641 GLEASON “G-PLETE” HYPOID SPIRAL BEVEL GEAR GENERATING MACHINE
NEW 1980, SERIAL NO. 763305, MODEL 641, SERIES G-PLETE
SUITABLE FOR THE “COMPLETING” OF SPIRAL BEVEL,
HYPOID, AND ZEROL BEVEL GEARS AND PINIONS
UP TO 16” (406.4MM) DIAMETER, 2.6” (66MM)
FACE-WIDTH, WITH 2 DP (MODULE 12.7) CUTTING CAPABILITY
FEATURES / EQUIPMENT:
HYDRAULIC CHUCKING ATTACHMENT LESS/DRAW-ROD & NUT
ARRANGEMENT FOR FORMATE, INCLUDING CONTROLS FOR
COMPLETING, ROUGHING & FINISHING
PLUNGE FEED MECHANISM
VARIABLE RATE-OF-ROLL ARRANGEMENT
HELICAL MOTION FEATURE
DOUBLE-ROLL ARRANGEMENT
RATIO CONTROL MECHANISM
ONE SINGLE SET-UP OF CHANGE GEARS

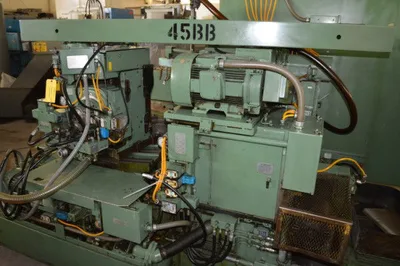

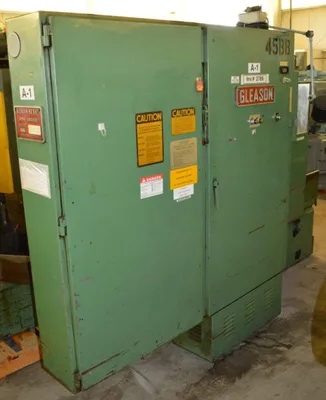

FULL COMPLEMENT OF ELECTRICS (MOTORS/CONTROLS)
COOLANT SYSTEM, PUMP TANK & PIPING

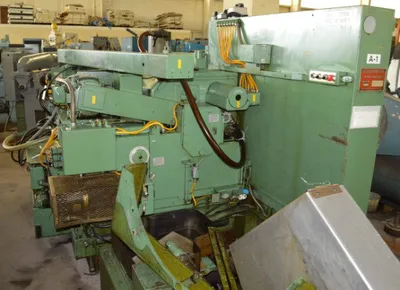

AUTOMATIC CHIP SEPARATOR, INCLUDING AUTOMATIC CHIP
WIPER SYSTEM AND AUGER-TYPE CHIP CONVEYOR
Extreme ratio 10:1
Root angle range -8° to 90°
Gear diameter – maximum 16.000" (406.40mm)
Examples of max. gear pitch diameters with 35"
gear spiral angle and max. cutter diameter (+)
at the following ratios : (using 12” cutters)
1 x 1 13.500" (342.90mm)
2 x 1 16.000" (406.40mm)
5 x 1 16.000" (406.40mm)
Maximum radial setting 6.983" (177.40mm)
Diametral pitch – coarsest 2.0 DP (12.70 MOD)
Full depth – maximum 1.000" (25.40mm)
Face width – maximum 2.600" (66.00mm)
Index range 5 to 10 inclusive
Work-spindle diameter of taper hole
at large end 3-29/32" (99.22mm)
Taper per foot 39/64” (15.48mm)
Depth of taper 6" (152.40mm)
Diameter of hole through spindle 3.0625" (77.79mm)
Cutter diameter(s) utilized 2.75", 3.75", 4.5", 6", 7.5", 9”,10.5”,12" (100,125,160,200,250,300mm)
Cutter speeds 15 – 250 rpm
Cycle time infinitely variable from 4.5 seconds/tooth – minimum
WORKHEAD SETTINGS
Offset above centre - maximum 2.25" (57.15mm)
Offset below centre – maximum 2.25" (57.15mm)
Machine centre to nose of spindle – maximum 14.50” (368.30mm)
ELECTRICAL EQUIPMENT 60 Hz (50 Hz)
Cutter drive motor (10/5 HP) 1800/900 rpm (1500/750 rpm)
Hydraulic motor (3 HP) (1200 rpm)
Hydraulic motor (5 HP) (1500 rpm)
Coolant motor (1.5 HP) (900 rpm)
Coolant motor (2 HP) (1000 rpm)
D.C. generating drive motor (6 HP) 1200 rpm
DIMENSIONS / WEIGHT:
Floor space (inclusive of hydraulic unit,
electrical panel & chip removal system) 131” x 85” (333 x 216cm)
Height 83” (211cm)
PRICE: F.O.B. OUR WAREHOUSE
Root angle range: -8° TO 90°
Gear diameter – maximum: 16.000" (406.40MM)
At the following ratios: (USING 12” CUTTERS)
1 x 1: 13.500" (342.90MM)
2 x 1: 16.000" (406.40MM)
5 x 1: 16.000" (406.40MM)
Maximum radial setting: 6.983" (177.40MM)
Diametral pitch – coarsest: 2.0 DP (12.70 MOD)
Full depth – maximum: 1.000" (25.40MM)
Face width – maximum: 2.600" (66.00MM)
Index range: 5 TO 10 INCLUSIVE
At large end: 3-29/32" (99.22MM)
Taper per foot: 39/64” (15.48MM)
Depth of taper: 6" (152.40MM)
Diameter of hole through spindle: 3.0625" (77.79MM)
Cycle time infinitely variable from: 4.5 SECONDS/TOOTH – MINIMUM
Offset above centre - maximum: 2.25" (57.15MM)
Machine centre to nose of spindle – maximum: 14.50” (368.30MM)
Electrical equipment: 60 HZ (50 HZ)
Cutter drive motor: (10/5 HP) 1800/900 RPM (1500/750 RPM)
Hydraulic motor: (5 HP) (1500 RPM)
Coolant motor: (2 HP) (1000 RPM)
D.c. generating drive motor: (6 HP) 1200 RPM
Electrical panel & chip removal system): 131” X 85” (333 X 216CM)
Height: 83” (211CM)
