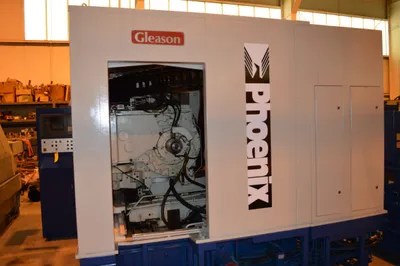

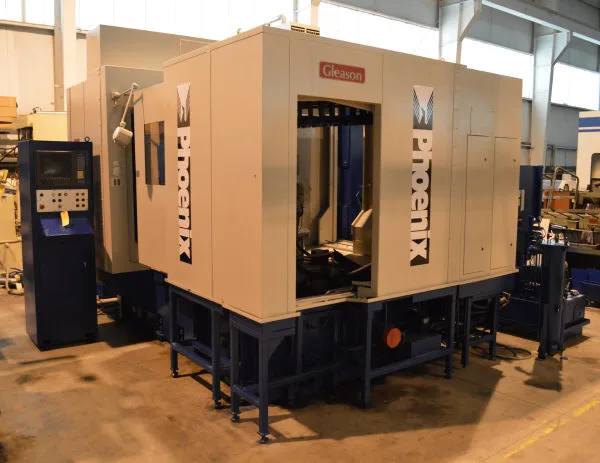

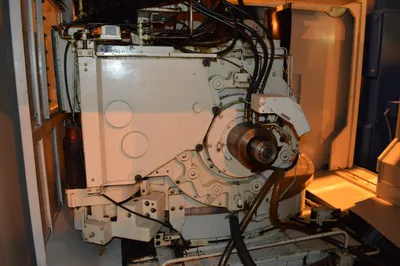

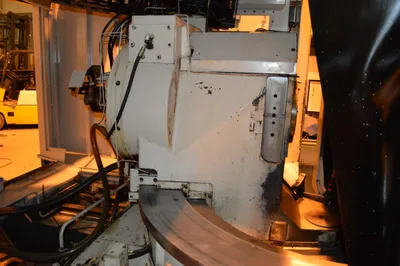

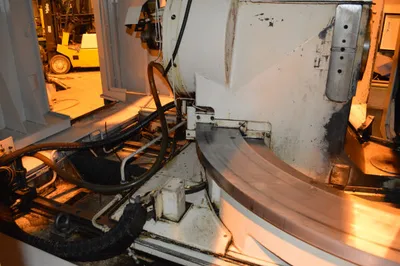

30” GLEASON PHOENIX “500HC” CNC SPIRAL BEVEL GEAR GENERATOR W/GE FANUC 150M CNC CONTROL - 30” DIAMETER CAPACITY FACE-MILLING - 22” DIAMETER CAPACITY FACE-HOBBING

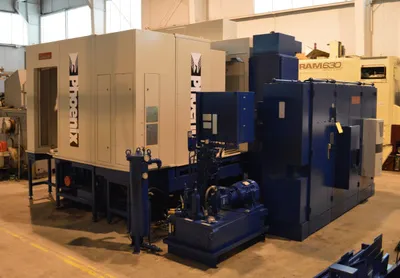

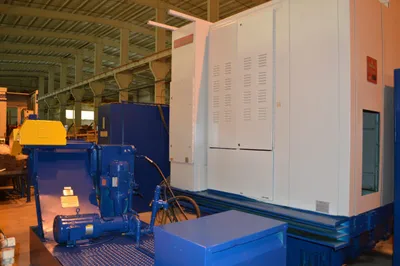

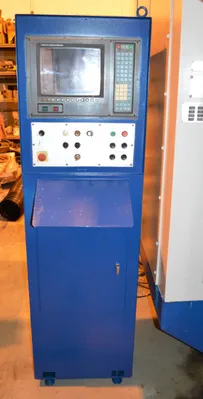

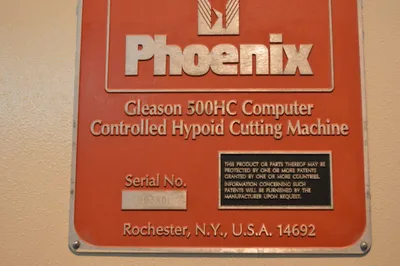

GLEASON "PHOENIX" #500 HC CNC SPIRAL BEVEL GEAR GENERATOR NEW 1995, SERIAL NO. 893801, MODEL NO. 500HC Suitable for the cutting of spiral bevel and hypoid gears and pinions up to 30” (762mm) diameter via “face-milling”, and 22” (558.8mm) via “face-hobbing” method utilizing the TRI-AC cutting system EQUIPMENT / FEATURES: GE-FANUC 150M Computer Control with spiral bevel gear cutting software, cycle fault monitoring, and memory capacity for 25 parts, with automatic setup and control of six (6) axes: Work Spindle Rotational Axis (A) Horizontal Linear Motion of Cutter Axis (X) Swinging Base of Work-spindle Axis (B) Vertical Linear Motion of Cutter Axis (Y) Cutter Spindle Rotational Axis (C) Sliding Base Linear Motion of Work-spindle Axis (Z) Machine furnished with freestanding, air conditioned electrical enclosure. Operator’s pendant located at front of machine adjacent to powered access door. The spiral bevel gear cutting software on the 500HC machine would be capable of performing the following cutting processes: FACE MILLING Complete generated and FORMATE gears Complete pinions of generated or FORMATE pairs Rough generated or FORMATE gears Rough pinions of generated or FORMATE pairs Rough slot and finish first side of pinions using any single side modified roll development method Finish generated or FORMATE (not single cycle) gears Finish pinions using and single side tilt or modified roll development method FACE HOBBING Complete generated or FORMATE gears Complete pinions or generated or FORMATE pairs EQUIPMENT Complete coolant plant, pump tank & piping with magnetic chip conveyor. Hydraulic workpiece chuck with draw-rod. Work-spindle bore 8” (#80 taper) with optional adapter to 6” (#60 taper). Complete set of work spindle ratio gears. Totally enclosed work-area guarding with powered access door. Work chamber and control box lighting. Production and sharpen-cutter count display Clamping and ejecting equipment for Gleason RSR-type spiral face milling cutters 9” through 18” diameter and Gleason TRI-AC spiral face hobbing cutters 176mm through 350mm diameter. Manual stock divider. FORMATE Single Cycle gear finishing arrangement. Smoke and mist collector. Chiller unit for coolant system. Work arbor clamp (for gears greater than 15” in diameter). Electrical equipment for 380 volt, 50 Hz, or 460 volt, 60 Hz, 3-phase installation. Control circuit is 110 VAC with 24 VDC input and 24 VAC output Transformer to convert line voltages of 200 to 240 volt, 50 or 60 Hz to 400 volt (for 50 Hz) or 460 volt (for 60 Hz). Full machine documentation for the machine and controller, replacement parts list, hydraulic and electrical diagrams SPECIFICATIONS: (face milling)(face hobbing) Extreme Ratio 10:1 10:1 Root Angle Range (B Axis) -5º to 90º-5º to 90º Examples of Max. Gear Pitch diameter with 35ºgear spiral angle and max cutter diameter (+) at the following ratios: 1x1 21.63”(549.40mm) 1X1 15.86”(402.84mm) 2x1 27.36”(694.94mm) 2X1 20.07”(509.78mm) 5x1 30.00”(762.00mm) 5X1 22.00”(558.80mm) Max Horiz Travel -12” to 12” Max Horiz Travel (-305mm to +305mm) Max Vert Travel (Y) -12” to 12” Max Vert Travel (Y) (-305mm to +305mm) Sliding Base Travel (Z) - 1” to 25” Sliding Base Travel (Z) (-51mm to +711mm) Machine Center to Work Spindle Face 9.00” (229mm) Full Depth (Maximum) 1.25”(31.75mm) Full Depth (Maximum) .93”(23.50mm) Face Width (Maximum) 4.60”(116.84mm) Face Width (Maximum) 3.00”(76.20mm) Tooth Number 5 to 200 inclusive Cutter Diameters 9”, 10.5” Cutter Diameters (200mm)(176,210mm) Cutter Diameters 12”, 14” Cutter Diameters (250,320mm)(250,300mm) Cutter Diameters 16”, 18” Cutter Diameters (400,500mm)(350mm) SPEEDS Work Spindle, A-Axis 0-67 RPM 0-333 RPM Swinging Base, B-Axis 0 to 30 deg/sec N/A Cutter, C-Axis 0 to 240 RPM Cutter, C-Axis 30 to 240 RPM X Horizontal, X-Axis 0 to 80mm/sec Y Vertical, Y-Axis 0 to 80mm/sec Z Sliding Base, Z-Axis 0 to 80mm/sec WORK-SPINDLE SPECIFICATIONS Diameter of Taper Hole at Large End 8” (#80 Taper) includes optional adapter Sleeve to 6” (#60 Taper) Taper Per Foot ¾” N.A. Depth of Taper 6” 152.40mm Diameter through spindle of hole 7.125” 180.98mm ELECTRICAL EQUIPMENT A-Axis Work Spindle AC Servo 50.0 66.0 B-Axis Swinging Base AC Servo 4.4 5.9 C-Axis Cutter Spindle AC Drive 226.7 307.3 X-Axis Horizontal AC Servo 8.7 11.8 Y-Axis Vertical AC Servo 8.7 11.8 Z-Axis Sliding Base AC Servo 8.7 11.8 Coolant AC Induction 5 HP Hydraulc AC Induction 5 HP Chiller AC Induction 3 HP Chip Conveyor ½ HP Floor Space (inclusive of hydraulic unit, electrical enclosure, chip removal system and operator’s pendant) Length x Width 219” x 227” Length x Width (557cm x 576cm) Height 127” (322cm) Weight (Approximately) 42,500 Lbs(19,318 kGs) PRICE: F.O.B. OUR WAREHOUSE Root angle range (b axis): -5º TO 90º-5º TO 90º Max horiz travel: (-305MM TO +305MM) Max vert travel (y): (-305MM TO +305MM) Sliding base travel (z): (-51MM TO +711MM) Machine center to work spindle face: 9.00” (229MM) Full depth (maximum): .93”(23.50MM) Face width (maximum): 3.00”(76.20MM) Tooth number: 5 TO 200 INCLUSIVE Cutter diameters: (400,500MM)(350MM) Work spindle, a-axis: 0-67 RPM 0-333 RPM Swinging base, b-axis: 0 TO 30 DEG/SEC N/A Cutter, c-axis: 30 TO 240 RPM X horizontal, x-axis: 0 TO 80MM/SEC Y vertical, y-axis: 0 TO 80MM/SEC Z sliding base, z-axis: 0 TO 80MM/SEC Diameter of taper hole at large end: 8” (#80 TAPER) Includes optional adapter sleeve to: 6” (#60 TAPER) Depth of taper 6”: 152.40MM A-axis work spindle ac servo: 50.0 66.0 B-axis swinging base ac servo: 4.4 5.9 C-axis cutter spindle ac drive: 226.7 307.3 X-axis horizontal ac servo: 8.7 11.8 Y-axis vertical ac servo: 8.7 11.8 Z-axis sliding base ac servo: 8.7 11.8 Coolant ac induction: 5 HP Hydraulc ac induction: 5 HP Chiller ac induction: 3 HP Chip conveyor: ½ HP Length x width: (557CM X 576CM) Height: 127” (322CM) Weight (approximately): 42,500 LBS(19,318 KGS)
