24” GLEASON “516” HYPOID SPIRAL BEVEL GEAR LAPPER - 24” MAXIMUM GEAR DIAMETER - 12” MAXIMUM PINION DIAMETER - HYDRAULIC CHUCKING
Have one to sell?
$29,500.00 USD
ConditionUsed
1 available

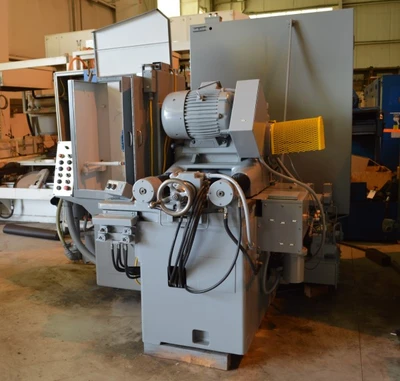

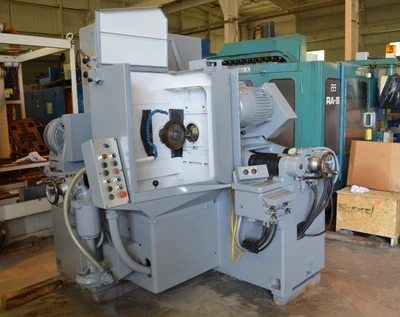

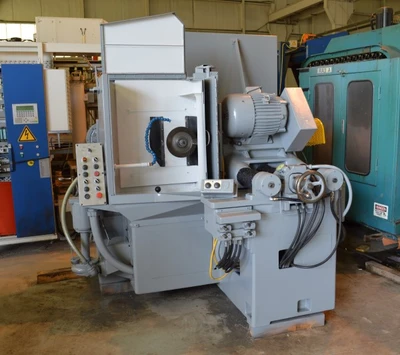

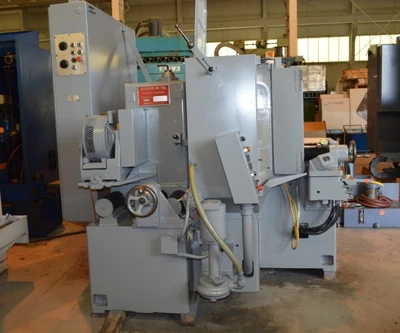

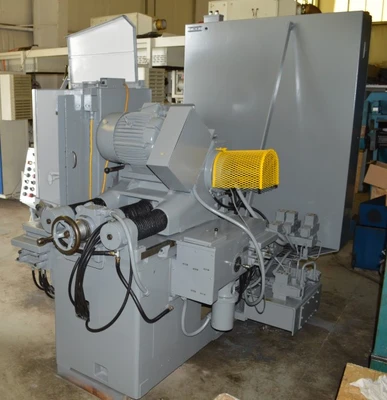

MODEL NO. 516 GLEASON HYPOID SPIRAL BEVEL GEAR LAPPING MACHINE
SERIAL NUMBER 649409
SUITABLE FOR LAPPING OF AUTOMOTIVE AND TRUCK
SPIRAL BEVEL AND HYPOID GEARS AND PINIONS
OPERATING AT A 90-DEGREE SHAFT ANGLE WITH
GEAR DIAMETERS UP TO 24" (609MM)
EQUIPMENT / FEATURES:
EDDY CURRENT BRAKE
HYDRAULIC POWER SUPPLY UNIT W/ACCUMULATOR
HYDRAULIC CHUCKING UNIT BOTH HEAD S(LESS DRAW-IN BARS)
POWER MOVEMENT OF DRIVE HEAD IN AND OUT
AUTOMATIC PRESET BACKLASH
DRIVE HEAD SPINDLE BORE 3-39/32" DIA. X 39/64" TAPER
BRAKE HEAD SPINDLE BORE 2-19/64" DIA. X .5" TAPER
SPECIAL LAPPING GUARDS FOR 24" DIAMETER
SPC (SWING-PINION-CONE) FEATURE, 3-WAY OSCILLATION
FOR PINION HEAD
FULL COMPLEMENT OF ELECTRICS (MOTORS/CONTROLS) FOR
50/60 CYCLE
( BASIC CAPACITIES )
Maximum gear diameter 24" (609mm)
Maximum pinion diameter 12" (304mm)
Offset of gear spindle above or below
center of pinion spindle (maximum) 6" (152mm)
( PINION SPINDLE )
Diam of taper hole at large end 3-29/32" (99.2mm)
Taper per foot 39/64" (15.478mm)
Depth of taper 3" (73.5mm)
Diameter of hole through spindle 3.740" (94.996mm)
( GEAR SPINDLE )
Diam of taper hole at large end 2-19/64" (58.34mm)
Taper per foot ½" (12.7mm)
Depth of taper 3" (76.2mm)
Diameter of hole through spindle 2.167" (55.04mm)
( ELECTRICAL EQUIPMENT) 60 CYCLE 50 CYCLE
Main Motor, 5 HP 1800 RPM 1500 RPM
Hydraulic Motor, ¾ HP 1800 RPM 1500 RPM
Lapping Compound Pump Motor,1 HP 1200 RPM 1000 RPM
Oscillating Drive Motor, ¼ HP 0 to 1725 RPM
( MISCELLANEOUS )
Floor Space 85"x82" 216cmx208cm
Height 82" 208cm
Net Weight (Approx) 11,200 lbs 5,080 kg
Price: F.O.B. OUR WAREHOUSE
Maximum gear diameter: 24" (609MM)
Maximum pinion diameter: 12" (304MM)
Center of pinion spindle (maximum): 6" (152MM)
Diam of taper hole at large end: 2-19/64" (58.34MM)
Taper per foot: ½" (12.7MM)
Depth of taper: 3" (76.2MM)
Diameter of hole through spindle: 2.167" (55.04MM)
( electrical equipment): 60 CYCLE 50 CYCLE
Main motor, 5 hp: 1800 RPM 1500 RPM
Hydraulic motor, ¾ hp: 1800 RPM 1500 RPM
Lapping compound pump motor,1 hp: 1200 RPM 1000 RPM
Floor space: 85"X82" 216CMX208CM
Height: 82" 208CM
Net weight (approx): 11,200 LBS 5,080 KG
