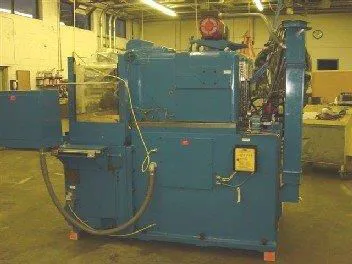

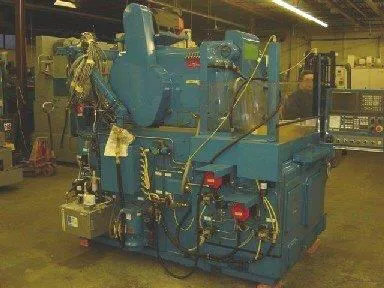

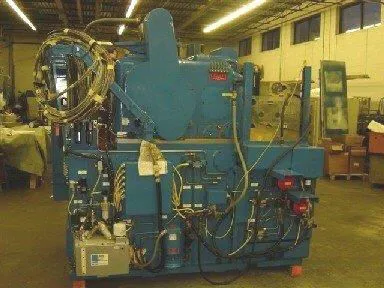

4B FELLOWS "CNC" VERTICAL STEERING GEAR SHAPER

Description

MODEL NO. 4-B FELLOWS "CNC" VERTICAL STEERING
SECTOR SHAPING MACHINE, SERIAL NO. 34326

SUITABLE FOR THE SHAPING OF VARIABLE PITCH AND/OR
RATIO STEERING SECTOR PART MEMBERS UP TO 3.5" (89MM)
PITCH RADIUS, 3 DP (8.5 MODULE), AND 1.75" (45MM)
MAXIMUM FACE-WIDTH

THE MACHINE WAS FULLY REMANUFACTURED/REBUILT AND
RETROFITTED WITH NEW CNC CONTROL IN 2004. THE
MACHINE WAS THEN DELIVERED TO A DIVISON OF
GENERAL MOTORS, AND NEVER PLACED INTO RUNNING SERVICE.
CONSEQUENTLY, THE MACHINE REMAINS IN FIRST CLASS
CONDITION THROUGHOUT, WITH "ZERO" HOURS OF USE,
AND SHOULD BE READY TO PLACE INTO IMMEDIATE,
TROUBLE-FREE SERVICE, ON A MULTI-SHIFT BASIS.

THE MACHINE WOULD CORRESPOND GENERALLY TO THE FACTORY
LITERATURE, WITH THE UNDERSTANDING THAT THE ORIGINAL
FEED, CUTTER STROKING, AND DIFFERENTIAL SLIDE
MECHANISM HAS BEEN REPLACED WITH SERVO-MOTORS, WITH
ALL AXES NOW CONTROLLED BY THE CNC, WITHOUT ANY
CHANGE GEARS.

EQUIPMENT / FEATURES:
10 HP VARIABLE-SPEED SPINDLE DRIVE MOTOR (GE-FANUC)

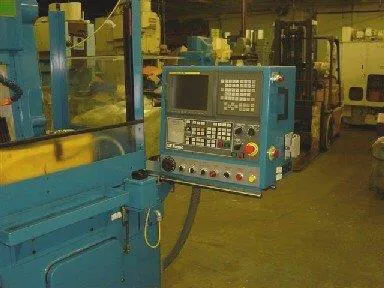

GE-FANUC 18I MA "CNC" CONTROL IN 4-AXIS EXECUTION,
MOTOR AND DRIVE PACKAGE WITH COLOR CRT, MOUNTED ON
PENDANT ARM
CONTROL WITH APPROPRIATE CUTTING SOFTWARE AND
OPERATOR'S DIALOGUE, ALONG WITH ELECTRONIC
HAND-WHEEL FOR POSITION OF CNC-CONTROLLED AXES
motions

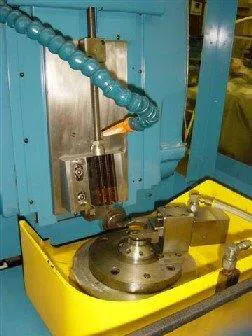

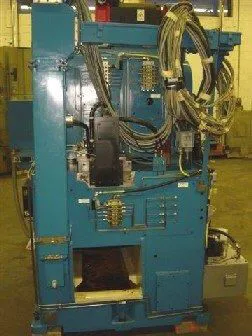

RECIPROCATING CUTTER SLIDE WITH MOUNTING FOR
RACK-TYPE CUTTERS
WORK-SPINDLE ARBOR INSERT AND STEADY SUPPORT BRACKET
POWER FORCED LUBRICATION SYSTEM
SELF CONTAINED COOLANT SYSTEM
MAGNETIC CHIP CONVEYOR

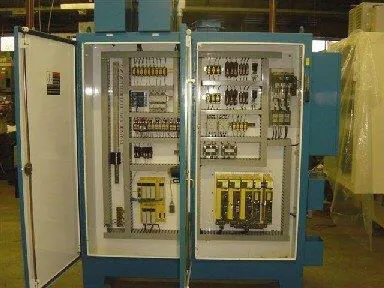

FULL COMPLEMENT OF ELECTRICS (MOTORS/CONTROLS)
(CURRENTLY 3-PHASE, 440 VOLT, 60HZ OPERATION)

PRICE: F.O.B. TRUCK BERLIN, CT $325,000.00

F.O.B. CONNECTICUT...............$325,000

Monthly Payments Starting At:....$6509.75

Call Us at: 513-771-1952

Conditions of Sale

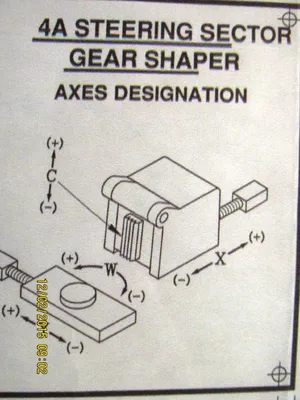

( WORK SPINDLE )
( CUTTER SLIDE )
POWER 10 HP VARIABLE SPEED GE-FANUC
( APPROX. DIMENSIONS / WEIGHT )
Maximum pitch radius: 3.5" (89MM)
Maximum nominal face-width: 1.75" (45MM)
Angle of teeth axis to shaft: 7.5 DEGREES
Maximum x-axes travel: 3.75" (95.25MM)
Max x-axes travel rate per min: 62.5" (180MM)
Max x-axis jog rate at 100% per min: 62.5" (180MM)
Max y-axis travel: 8" (203.2MM)
Max y-axis travel rate per min: 100" (2.5 M)
Max y-axis jog rate at 100% per min: 100" (2.5 M)
Maximum rotation: +/- 140 DEGREES
Maximum rotation rate: 3.33 RPM
Jog rate at 100%: 1.67 RPM
Work spindle bore diameter: 3.25" (82.55MM)
Maximum stroke length: 2" (50.8MM)
Maximum stroke rate: 520 SPM
Maximum overall length: 99" (2515MM)
Maximum overall width: 102" (2590MM)
Maximum overall height: 85" (2160MM)
Machine approx. net weight: 17,600 LB (7993 KGS)
