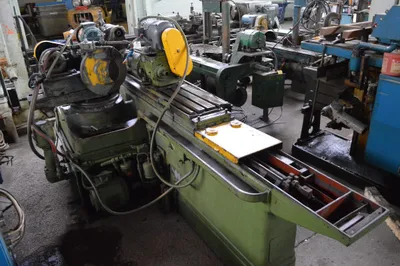

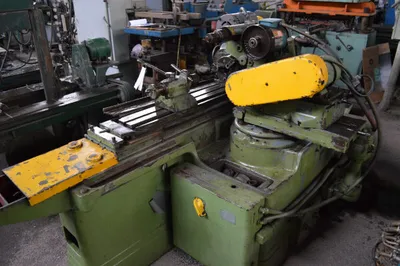

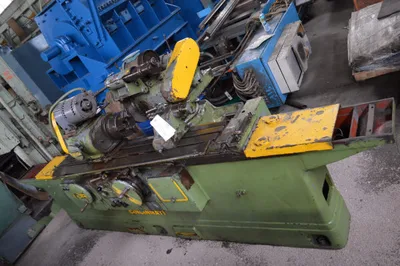

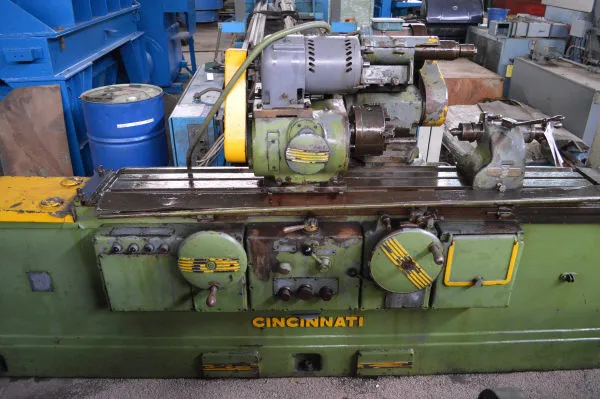

12" X 48" CINCINNATI-MILACRON “ER” UNIVERSAL CYLINDRICAL GRINDER w/INTERNAL GRINDING SPINDLE (SWING-DOWN) - 8” 3-JAW CHUCK

Swing Over Table, Maximum 12.9375"

Grinding Diameter w/14" Wheel 12.9375"

Distance Between Centers, Nominal 48"

Grinding Wheel Diameter, Standard 14"

Grinding Wheel Width, Standard 1.5"

Grinding Wheel Hole Diameter 5"

Table Swivel Taper Toward Wheelhead 3.5" TPF

Table Swivel Taper Away Wheelhead 1" TPF

Table Swivel Angle Toward Wheelhead 8.5-DEGREES

Table Swivel Angle Away Wheelhead 3-DEGREES

Lower Grinding Wheelhead Swivel Range 90-DEGREES

Upper Grinding Wheelhead Swivel Range 30-DEGREES

Workhead and Tailstock Center Tapers #9 B&S

Workhead Spindle Speeds, Range 50 to 500 RPM

Table Longitudinal Feeds, Infinite 3 to 240 IPM

Grinding Wheelhead Spindle Motor 2 HP

Overall Dimensions, L x W 15'4" x 5'2"

Weight, Approximately 6700 LBS

Note: This Machine Has Mechanical Issues. We Are Selling As Is.

PRICE: F.O.B. OUR WAREHOUSE
Swing over table, maximum: 12.9375"
Grinding diameter w/14" wheel: 12.9375"
Distance between centers, nominal: 48"
Grinding wheel diameter, standard: 14"
Grinding wheel width, standard: 1.5"
Grinding wheel hole diameter: 5"
Table swivel taper toward wheelhead: 3.5" TPF
Table swivel taper away wheelhead: 1" TPF
Table swivel angle toward wheelhead: 8.5-DEGREES
Table swivel angle away wheelhead: 3-DEGREES
Lower grinding wheelhead swivel range: 90-DEGREES
Upper grinding wheelhead swivel range: 30-DEGREES
Workhead and tailstock center tapers: #9 B&S
Workhead spindle speeds, range: 50 TO 500 RPM
Table longitudinal feeds, infinite: 3 TO 240 IPM
Grinding wheelhead spindle motor: 2 HP
Overall dimensions, l x w: 15'4" X 5'2"
Weight, approximately: 6700 LBS
