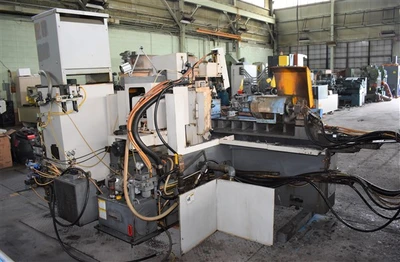

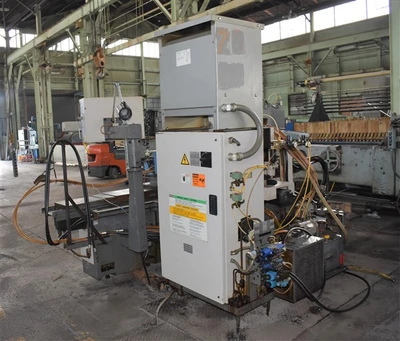

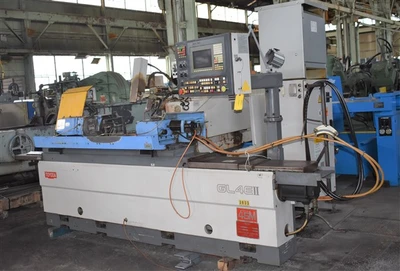

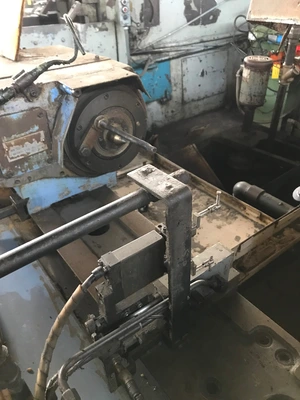

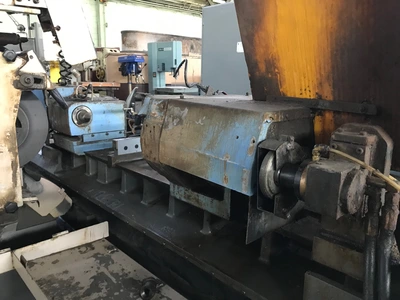

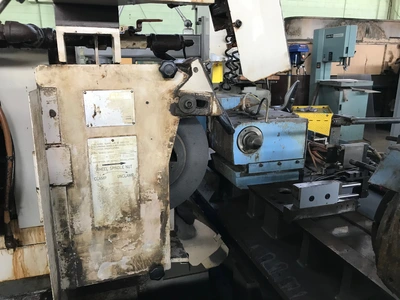

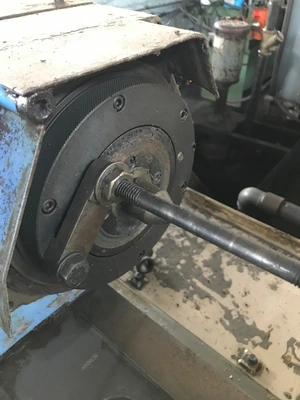

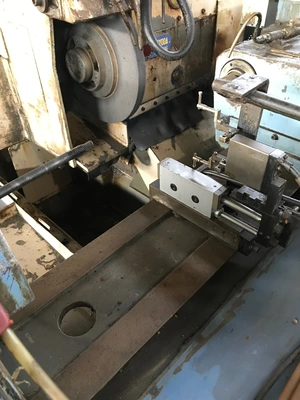

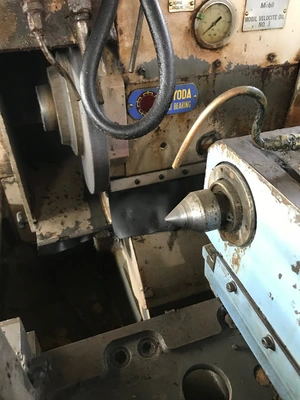

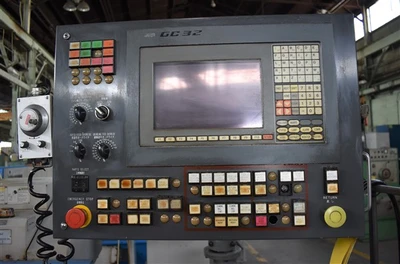

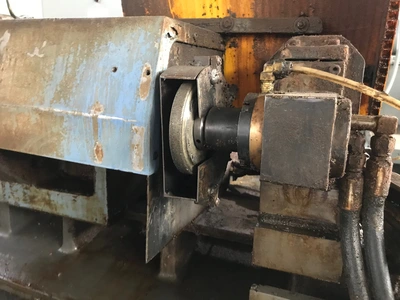

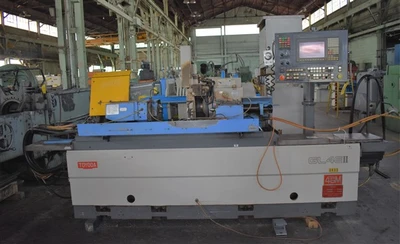

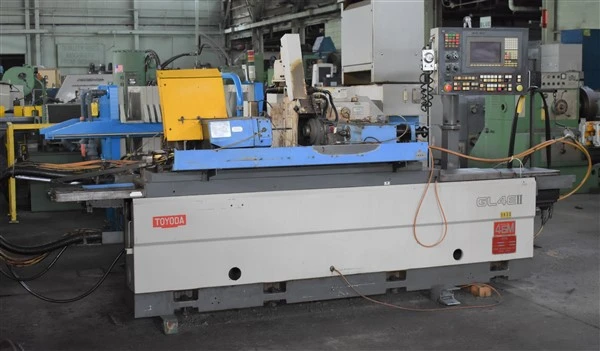

12.6" X 39.4" TOYODA “GL4P-100EII” CNC STRAIGHT-WHEELHEAD CYLINDRICAL GRINDER w/GAUGING - HAND HELD REMOTE - WHEEL DRESSER

Swing Over Table, Maximum 12.6"

Grinding Diameter, Maximum 11.8"

Distance Between Centers, Nominal 39.4"

Weight Capacity Between Centers 330 LBS

Grinding Wheel Diameter, Standard 16"

Grinding Wheel Width, Maximum 4"

Grinding Wheel Width, Standard 3"

Grinding Wheel Hole Diameter 5"

Table Swiveling Angle, CCW~CW 5~0 DEGREES

Wheelhead Feed Stroke, Total 9.76"

Workhead and Tailstock Center Tapers #4 MT

Grinding Wheel Speeds, Surface-Feet 8850 SFPM

Workhead Spindle Speeds, Infinite Range 10 to 500 RPM

Table & Wheelhead Rapid Feed Rate 591 IPM

Grinding Wheelhead Spindle Motor 7.5 HP

Floor Space, W x D 15' x 9'

Weight, Approximately 10800 LBS

PRICE: F.O.B. OUR WAREHOUSE
Swing over table, maximum: 12.6"
Grinding diameter, maximum: 11.8"
Distance between centers, nominal: 39.4"
Weight capacity between centers: 330 LBS
Grinding wheel diameter, standard: 16"
Grinding wheel width, maximum: 4"
Grinding wheel width, standard: 3"
Grinding wheel hole diameter: 5"
Table swiveling angle, ccw~cw: 5~0 DEGREES
Wheelhead feed stroke, total: 9.76"
Workhead and tailstock center tapers: #4 MT
Grinding wheel speeds, surface-feet: 8850 SFPM
Workhead spindle speeds, infinite range: 10 TO 500 RPM
Table & wheelhead rapid feed rate: 591 IPM
Grinding wheelhead spindle motor: 7.5 HP
Floor space, w x d: 15' X 9'
Weight, approximately: 10800 LBS
