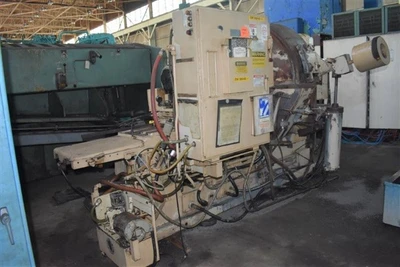

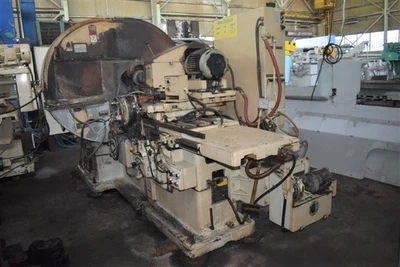

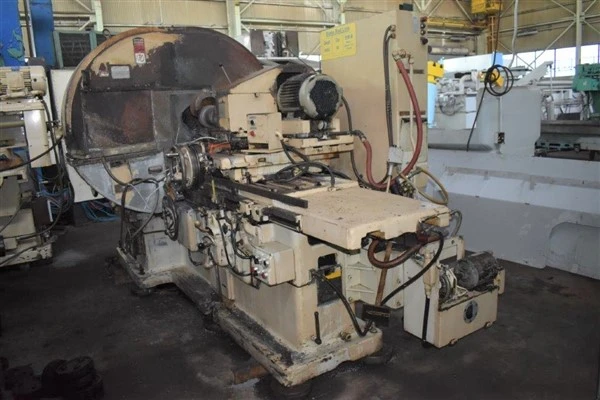

174 CINCINNATI-MILACRON/HEALD “PLAIN” ADJUSTABLE GAP-TYPE INTERNAL GRINDER w/RED-HEAD GRINDING SPINDLE - 42" FACE PLATE - WHEEL DRESSER - BARNES COOLANT SYSTEM

Swing Inside Coolant Splash Guard 42"

Diameter Hole Ground, Maximum 20"

Table Stroke, Maximum 22"

Grinding Stroke, Minimum 5/8"

Grinding Stroke, Maximum 13"

Gap Adjustment (Standard), Range 11.5" to 20"

Hole Thru Workhead Spindle, Diameter 1.68"

Workhead Spindle Flange, Diameter 12"

Workhead Spindle Speeds, Range 41 TO 123 RPM

Grinding Table Speeds, Infinite 0 TO 18 FPM

Wheelhead Spindle Motor, Horsepower 7.5 HP/7500 RPM

Workhead Chuck Motor, Horsepower 5 HP/1150 RPM

Electrical System 220-440/3/60

Floor Space Required, W x D 139" X 82"

Weight, Approximately 17000 LBS

NOTE: THIS HEAVY-DUTY MACHINE IS DESIGNED TO HANDLE
WORK REQUIRING LARGE SWING, AWKWARD WORKPIECES,
LONG BORES, ADJUSTABLE GAPS AND SWINGS

PRICE: F.O.B. OUR WAREHOUSE
Swing inside coolant splash guard: 42"
Diameter hole ground, maximum: 20"
Table stroke, maximum: 22"
Grinding stroke, minimum: 5/8"
Grinding stroke, maximum: 13"
Gap adjustment (standard), range: 11.5" TO 20"
Hole thru workhead spindle, diameter: 1.68"
Workhead spindle flange, diameter: 12"
Workhead spindle speeds, range: 41 TO 123 RPM
Grinding table speeds, infinite: 0 TO 18 FPM
Wheelhead spindle motor, horsepower: 7.5 HP/7500 RPM
Workhead chuck motor, horsepower: 5 HP/1150 RPM
Electrical system: 220-440/3/60
Floor space required, w x d: 139" X 82"
Weight, approximately: 17000 LBS
