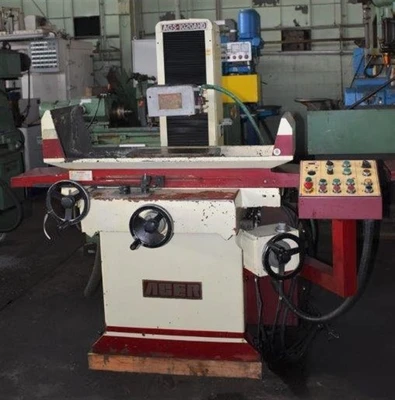

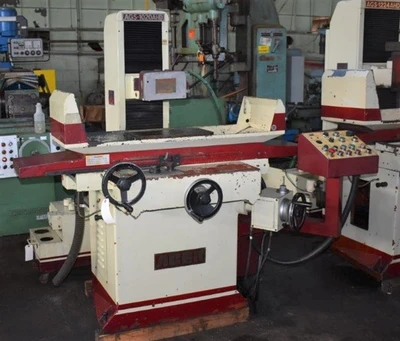

10" X 20" ACER “AGS-1020AHD” AUTOMATIC HYDRAULIC-FEED HORIZONTAL-SPINDLE SURFACE GRINDER w MAGNETIC CHUCK - INCREMENTAL POWER DOWN FEED - WHEEL DRESSER

Table Working Surface, W x L 9" x 20"

Grinding Width Capacity, Maximum 10"

Grinding Length Capacity, Maximum 20"

Height Spindle Center to Table, Maximum 19-1/2"

Table Load Capacity 1000 LBS

Table Longitudinal, Power 20-1/2"

Table Cross Travel 11"

Grinding Wheel Diameter, Standard 8"

Grinding Wheel Width, Standard 0.5"

Grinding Wheel Hole Diameter 1.25"

Grinding Spindle Speed 3580 RPM

Table Longitudinal Feeds, Range 16 to 80 FPM

Crossfeed Travel Feeds, Automatic 0 to 1"

Spindle Auto Downfeed , Range .0001 to .001 IPR

Spindle Horsepower 2 HP

Hydraulic Motor Horsepower 2 HP

Floor Space Required, 5'6" x 6'

Weight, Approximately 3580 LBS

PRICE: F.O.B. OUR WAREHOUSE
Table working surface, w x l: 9" X 20"
Grinding width capacity, maximum: 10"
Grinding length capacity, maximum: 20"
Height spindle center to table, maximum: 19-1/2"
Table load capacity: 1000 LBS
Table longitudinal, power: 20-1/2"
Table cross travel: 11"
Grinding wheel diameter, standard: 8"
Grinding wheel width, standard: 0.5"
Grinding wheel hole diameter: 1.25"
Grinding spindle speed: 3580 RPM
Table longitudinal feeds, range: 16 TO 80 FPM
Crossfeed travel feeds, automatic: 0 TO 1"
Spindle auto downfeed , range: .0001 TO .001 IPR
Spindle horsepower: 2 HP
Hydraulic motor horsepower: 2 HP
Floor space required,: 5'6" X 6'
Weight, approximately: 3580 LBS
