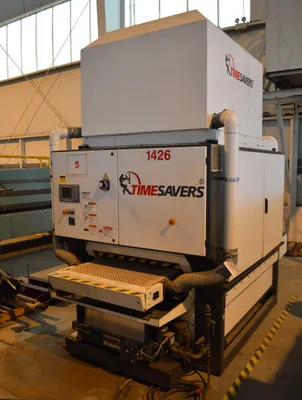

37" TIMESAVERS “4111-03-05” HEAVY-DUTY WET METAL ABRASIVE DISC DEBURRER AND FINISHING GRINDER w/MITSUBISHI CONTROL - 48” OSCILLATING DISC HEAD - MOTORIZED HEIGHT DJUSTMENT
Have one to sell?
$19,500.00 USD
ConditionUsed
1 available

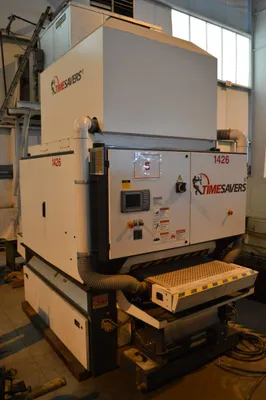

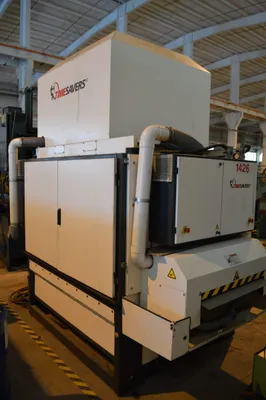

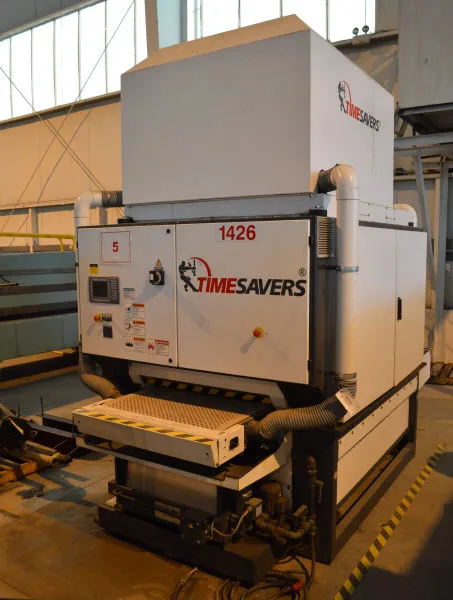

37" TIMESAVER HEAVY-DUTY WET METAL ABRASIVE DISC DEBURRING AND FINISHING GRINDER
NEW 2007, SERIAL NO. G234810, MODEL 4111-03-5

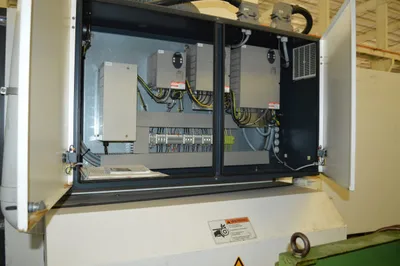

#E1070 MITSUBISHI CONTROL PANEL W/READ OUT

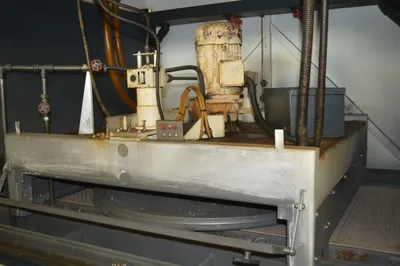

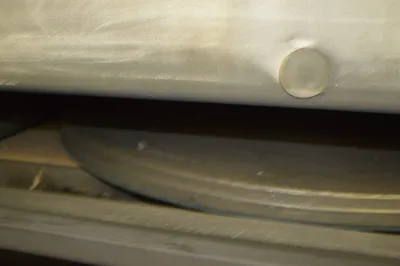

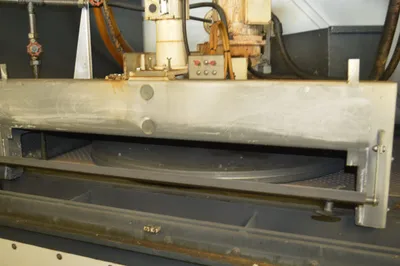

48" OSCILLATING DISK ROTARY TYPE GRINDING HEAD
W/MOTORIZED HEIGHT ADJUSTMENT
STAINLESS STEEL DOORS AND SHEET MATERIAL

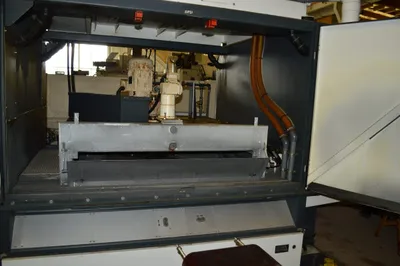

VACUUM CONVEYOR TABLE W/FEED KING CONVEYOR BELT
AND BELLY BRAKE AND MOTORIZED HEIGHT ADJUSTMENT
OF CONVEYOR BED
WET TYPE EXECUTION W/INTERGRATED FILTER, PAPER
FILTER CLOTH, COOLANT EMULSION TANK, SPRAY
NOZZLES, REFRACTOMETER (COOLANT EMULSION),
WATER SEPERATOR ON TOP, AND VACUUM PUMP
BOLT ON AIR KNIFE DRYER W/DOUBLE AIR KNIVES AND
SIX SQUEEZE ROLLERS
Disc Diameter 48"
Belt Width 37"
Belt Length 75"
Working Width, Maximum 35.43"
Work Piece Size, Minimum 3.15" x 3.15"
Thickness Opening, Maximum 0" to 3"
Conveyor Feed Speed, Variable 1 to 10 MPM
Grinding Head Speed, Range 10 to 22 MPS
Disc Drive Motor, Horsepower 6.9 KW
Conveyor Motor, Horsepower 1.3 KW
Weight Approximately 7725 LBS
NOTE: This Machine Appears To Be In Very Good
Condition As Taken From Aerospace Facility
With A Replacement Price On This Machine Of
Approximately $170,000.00.
PRICE: F.O.B. OUR WAREHOUSE
Disc diameter: 48"
Belt width: 37"
Belt length: 75"
Working width, maximum: 35.43"
Work piece size, minimum: 3.15" X 3.15"
Thickness opening, maximum: 0" TO 3"
Conveyor feed speed, variable: 1 TO 10 MPM
Grinding head speed, range: 10 TO 22 MPS
Disc drive motor, horsepower: 6.9 KW
Conveyor motor, horsepower: 1.3 KW
Weight approximately: 7725 LBS
