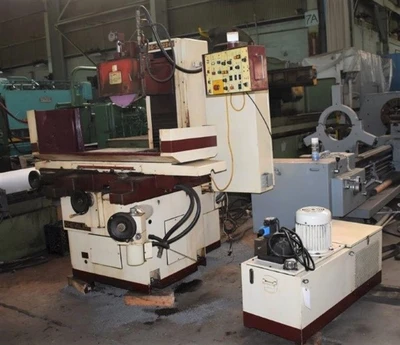

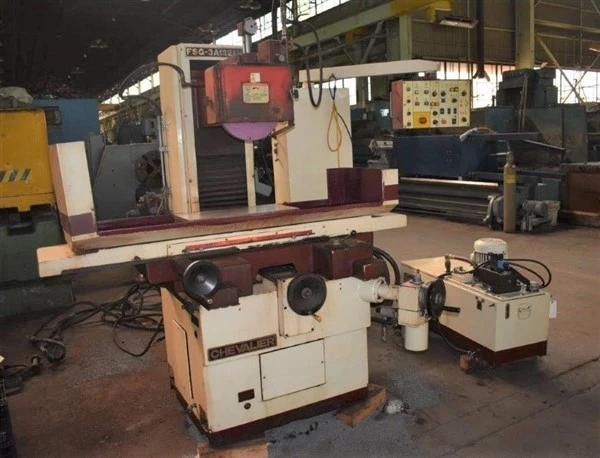

12" X 24" CHEVALIER “FSG-3A1224H” 3-AXIS HIGH-COLUMN AUTOMATIC HORIZONTAL-SPINDLE SURFACE GRINDER w/ELECTRO-MAGNETIC CHUCK - 5" EXTRA-HIGH COLUMN - COOLANT FILTRATION SYSTEM

Table Working Surface, W x L 12" x 24"

Grinding Width Capacity, Maximum 12"

Grinding Length Capacity, Maximum 24"

Height Spindle Centerline To Table, Maximum 24.75"

Grinding Wheel Diameter, Standard 14"

Grinding Wheel Width, Standard 2"

Grinding Wheel Hole Diameter 5"

Table Longitudinal Travel Hydraulic 25.37"

Table Longitudinal Travel Manual 27.5"

Table Cross Travel, Automatic 14.17"

Table Cross Travel, Manual 14.5"

Table Longitudinal Feeds, Range 16 to 82 FPM

Table Cross In-Feeds, Range .125 to 2 IPR

Spindle Vertical Feeds, Automatic .0001 to .002 IPR

Power Rapid Vertical Traverse 13 IPM

Grinding Wheel Spindle Motor 5 HP

Floor Space Required, L x D 106" x 66"

Overall Height 82"

Weight, Approximately 4630 LBS

PRICE: F.O.B. OUR WAREHOUSE
Table working surface, w x l: 12" X 24"
Grinding width capacity, maximum: 12"
Grinding length capacity, maximum: 24"
Height spindle centerline to table, maximum: 24.75"
Grinding wheel diameter, standard: 14"
Grinding wheel width, standard: 2"
Grinding wheel hole diameter: 5"
Table longitudinal travel hydraulic: 25.37"
Table longitudinal travel manual: 27.5"
Table cross travel, automatic: 14.17"
Table cross travel, manual: 14.5"
Table longitudinal feeds, range: 16 TO 82 FPM
Table cross in-feeds, range: .125 TO 2 IPR
Spindle vertical feeds, automatic: .0001 TO .002 IPR
Power rapid vertical traverse: 13 IPM
Grinding wheel spindle motor: 5 HP
Floor space required, l x d: 106" X 66"
Overall height: 82"
Weight, approximately: 4630 LBS
