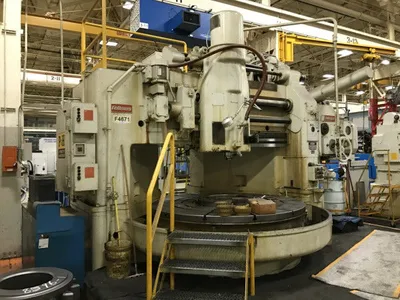

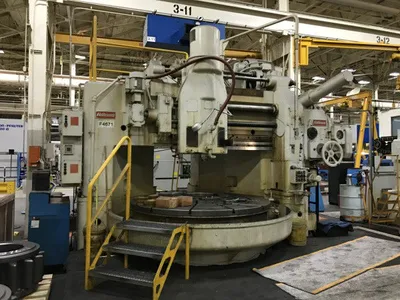

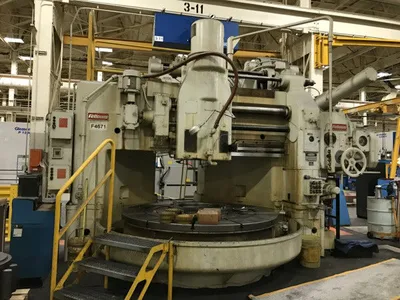

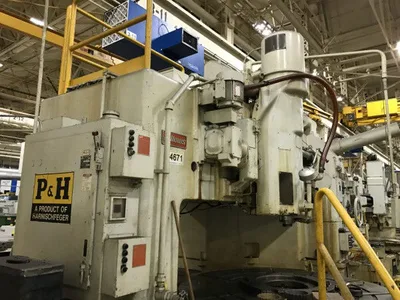

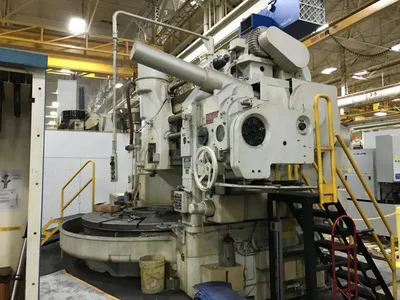

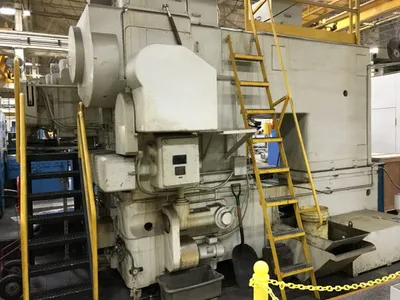

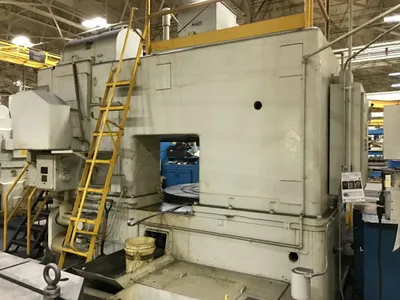

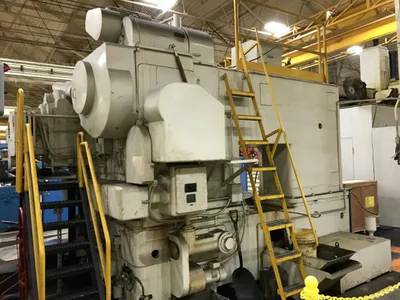

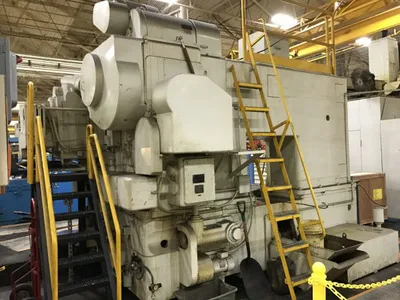

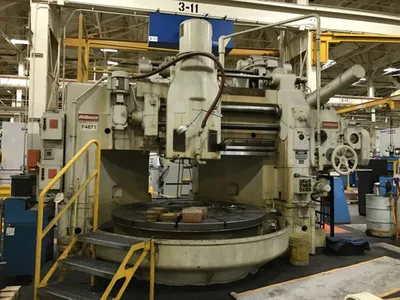

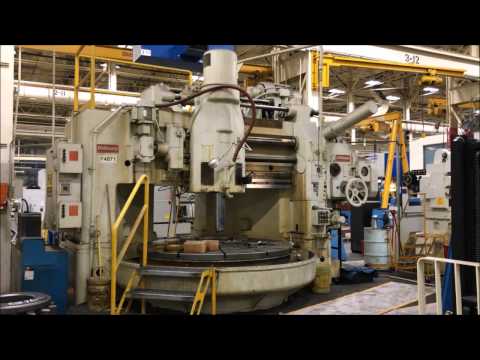

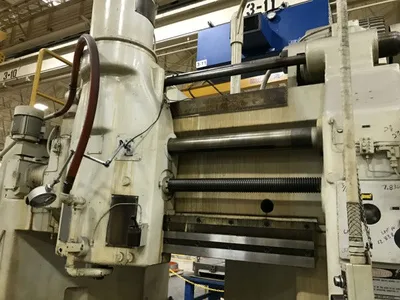

#70-15 FELLOWS HEAVY DUTY INTERNAL/EXTERNAL GEAR SHAPER
SERIAL NO 34679, MODEL 70-15
SUITABLE FOR THE MANUFACTURE OF EXTERNAL STRAIGHT
SPUR GEARS UP TO 70” (1778MM) PITCH DIAMETER,
AS WELL AS INTERNAL SPUR GEARS AND SPLINES WITHIN
A RANGE OF 0” TO 88” (2235MM) PITCH DIAMETER,
REGARDLESS OF SHAPER-CUTTER RADIUS.
THIS UNIQUE FEATURE, COMBINED WITH THE MACHINE’S
15” (381MM) FACE-WIDTH CAPACITY, AND 1.7 DP
(14.9 MODULE) CUTTING CAPABILITY IN STEEL,
PROVIDE A FORMIDABLE PLATFORM FOR PRODUCING A
WIDE RANGE OF LARGER GEARED PART MEMBERS.
EQUIPMENT / FEATURES:
MASSIVE MACHINE MAIN BASE WITH WORK-TABLE, UPPER
COLUMN, CUTTER RAM AND SLIDE OF “SUPER ROBUST”
CONSTRUCTION
MACHINE WITH “SADDLE BACKOFF” METHOD OF CUTTER
relieving

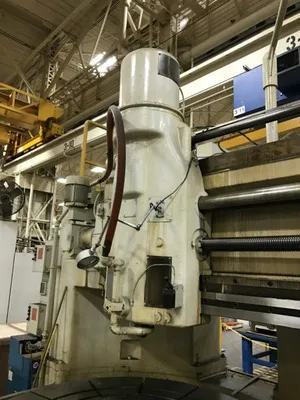

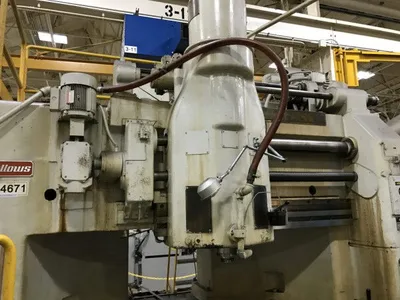

HEAVY DUTY CUTTER SPINDLE 6.25” (158.75MM)
DIAMETER WITH STANDARD STRAIGHT SPUR GUIDE
CUTTER POSITIONING VIA STROKE JOG-BUTTON
RAPID ROTATION OF WORK SPINDLE FOR TRUEING WORK-PIECE

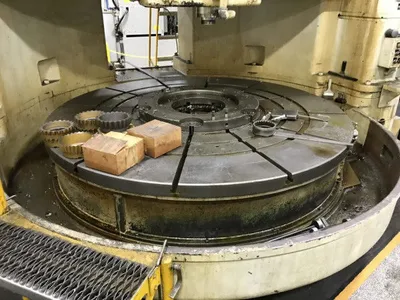

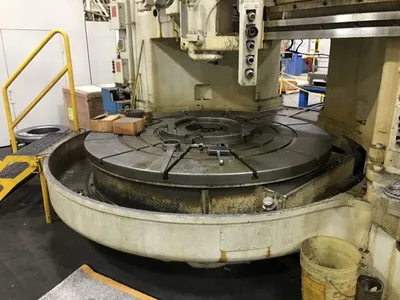

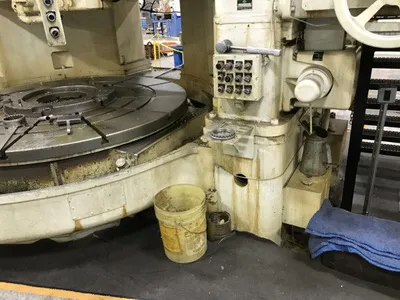

T-SLOTTED WORK TABLE WITH CENTER BEARING CAP (OR ???”
DIAMETER BORE)
RAPID SADDLE TRAVERSE FOR TRAVERSING SADDLE RELATIVE
TO WORK AUTOMATIC DEPTH FEED MECHANISM FOR ONE TO
FOUR CUTS, WITH 4-SPEED MOTOR PROVIDING SPEED
CHANGE ON FINISHING CUT
ASSORTED WORK AND FEED CHANGE GEARS
ASSORTED STROKE CHANGE GEARS
ONE (1) CUTTER ADAPTOR
RISER PLATE OF 2” (50.8MM) HEIGHT
MAIN DRIVE MOTOR 15 HP, 650/2200 RPM, 240
VOLT 60 HZ W/WESTINGHOUSE RECTIFIER UNIT FOR AC
POWER FORCED LUBRICATION TO ALL WORKING ELEMENTS
WITH “LUBRIQUIP MULTI-PURPOSE LUBRICATION
CONTROLLER”
COOLANT TANK, PUMP, AND PIPING, WITH CHIP PAN
FULL COMPLEMENT OF ELECTRICS, (MOTORS/CONTROLS)
ASSORTED GUARDS, COVERS
Maximum diameter external gear cut (nominal) 70” (1778mm)
Maximum diameter internal gear cut (nominal) 88” (2235mm)
Maximum diameter workpiece accommodated 104” (2642mm)

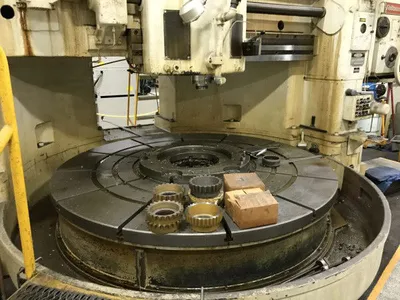

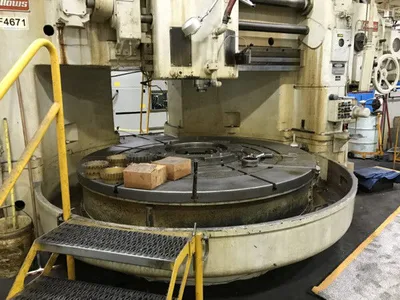

Worktable diameter 84” (2133.6mm)
Max permissible weight of workpiece & fixture 36,000 Lbs(16,500 kGs)
Maximum distance, workspindle centerline to centerline
of cutter spindle 35” (889mm)
Minimum distance, workspindle centerline to centerline
of cutter spindle 0” (0mm)
Maximum work & fixture clearance height w/cutter spindle in
uppermost position 28” (711.2mm)
Maximum diametral pitch (full length teeth) 2 DP (12.5 module)
Maximum diametral pitch (stub teeth) .75 DP (24.5 module)
Maximum diameter pitch (30°P.A. splines) 2-5/5 DP (11 module)
Diameter of cutter spindle 6.25” (158.75mm)
Maximum stroke length 19.118” (485.6mm)
Maximum face-width (nominal) 15” (381mm)
Stroking speeds (infinitely variable) 5 to 122 S.P.M.
Maximum infeed of cutter ram .0020 inch/min (.0509mm/min)
Minimum infeed of cutter ram .0005 inch/min (.0127mm/min)
Max rotary feed per stroke (per 1" of cutter diameter) .0068 inch/min. (.1727mm.min.)
Min rotary feed per stroke (per 1" of cutter diameter) .0006 inch/min. (.0152mm.min.)
Machine overall length 192” (4877mm)
Machine overall depth 144” (3657mm)
Machine overall height 150" (3810mm)
Machine net weight (approximate) 95,000 Lbs.(43,182 kGs)
PRICE: F.O.B. OUR WAREHOUSE
Maximum diameter external gear cut (nominal): 70” (1778MM)
Maximum diameter internal gear cut (nominal): 88” (2235MM)
Maximum diameter workpiece accommodated: 104” (2642MM)
Worktable diameter: 84” (2133.6MM)
Max permissible weight of workpiece & fixture: 36,000 LBS(16,500 KGS)
Of cutter spindle: 0” (0MM)
Uppermost position: 28” (711.2MM)
Maximum diametral pitch (full length teeth): 2 DP (12.5 MODULE)
Maximum diametral pitch (stub teeth): .75 DP (24.5 MODULE)
Maximum diameter pitch (30°p.a. splines): 2-5/5 DP (11 MODULE)
Diameter of cutter spindle: 6.25” (158.75MM)
Maximum stroke length: 19.118” (485.6MM)
Maximum face-width (nominal): 15” (381MM)
Stroking speeds (infinitely variable): 5 TO 122 S.P.M.
Maximum infeed of cutter ram: .0020 INCH/MIN (.0509MM/MIN)
Minimum infeed of cutter ram: .0005 INCH/MIN (.0127MM/MIN)
Max rotary feed per stroke (per 1" of cutter diameter): .0068 INCH/MIN. (.1727MM.MIN.)
Min rotary feed per stroke (per 1" of cutter diameter): .0006 INCH/MIN. (.0152MM.MIN.)
Machine overall length: 192” (4877MM)
Machine overall depth: 144” (3657MM)
Machine overall height: 150" (3810MM)
Machine net weight (approximate): 95,000 LBS.(43,182 KGS)
