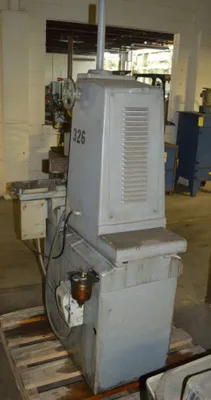

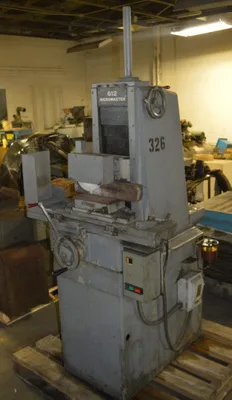

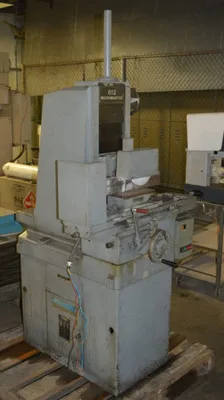

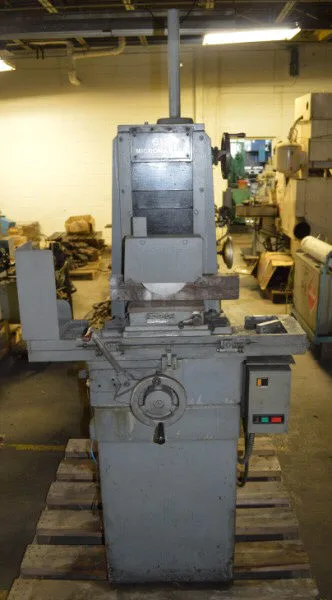

6" X 12" BROWN & SHARPE "612 MICROMASTER" HAND-FEED HORIZONTAL-SPINDLE SURFACE GRINDER w/MAGNETIC CHUCK
Have one to sell?
$1,950.00 USD
ConditionUsed
1 available
6" X 12" BROWN & SHARPE "MICROMASTER" HAND-FEED
HORIZONTAL-SPINDLE SURFACE GRINDER
SERIAL NO 523-612-557, MODEL 612,
SERIES "MICROMASTER"
6" X 10 BROWN & SHARPE PERMANENT MAGNETIC CHUCK
ANTI-FRICTION TABLE WAYS
LEVER-OPERATED LONGITUDINAL TABLE TRAVEL
Table Working Surface, W x L 6" x 12"
Grinding Width Capacity, Maximum 6"
Grinding Length Capacity, Maximum 12"
Height Under 7" Grinding Wheel 12.5"
Height Under 8" Grinding Wheel 12"
Table Longitudinal Travel 14"
Table Longitudinal Travel by Lever 11"
Wheelhead Cross Travel 7"
Grinding Head Vertical Travel 12.5"
Grinding Wheel Diameter, Standard 8"
Grinding Wheel Width, Standard 0.5"
Grinding Wheel Hole Diameter 1.25"
Grinding Spindle Speed, Maximum 2860 RPM
Grinding Wheel Spindle Motor 1 HP
Overall Dimensions, L x D 38" x 35"
Overall Height 84"
Weight, Approximately 1450 LBS
PRICE: F.O.B. OUR WAREHOUSE
Table working surface, w x l: 6" X 12"
Grinding width capacity, maximum: 6"
Grinding length capacity, maximum: 12"
Height under 7" grinding wheel: 12.5"
Height under 8" grinding wheel: 12"
Table longitudinal travel: 14"
Table longitudinal travel by lever: 11"
Wheelhead cross travel: 7"
Grinding head vertical travel: 12.5"
Grinding wheel diameter, standard: 8"
Grinding wheel width, standard: 0.5"
Grinding wheel hole diameter: 1.25"
Grinding spindle speed, maximum: 2860 RPM
Grinding wheel spindle motor: 1 HP
Overall dimensions, l x d: 38" X 35"
Overall height: 84"
Weight, approximately: 1450 LBS
