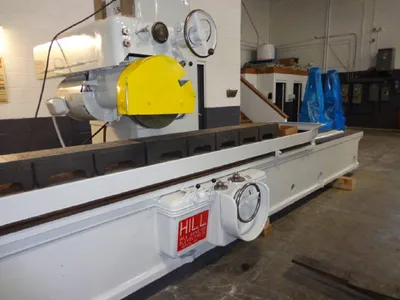

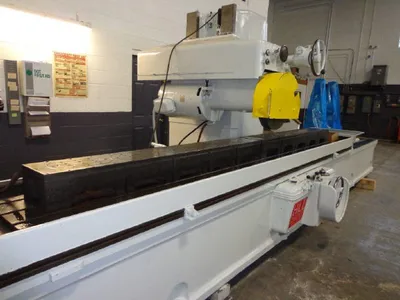

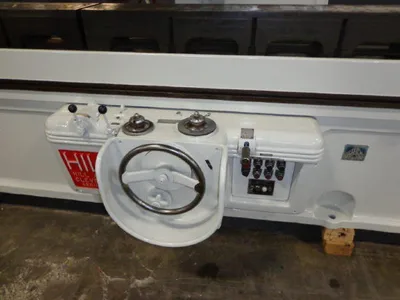

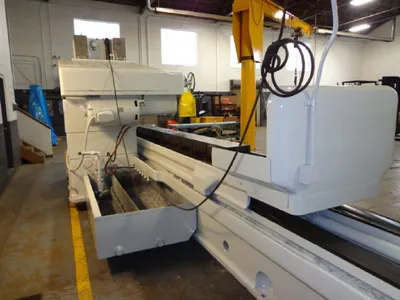

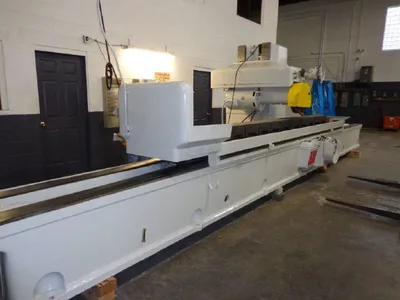

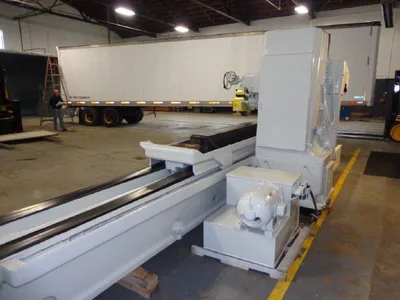

18" X 18" X 168" HILL-ACME HYDRAULIC-FEED HORIZONTAL-SPINDLE SURFACE GRINDER w/ELECTRO-MAGNETIC CHUCKS

Table Working Surface, W x L 18" x 168"

Grinding Width Capacity, Maximum 18"

Grinding Length Capacity, Maximum 168"

Height Under 20" Grinding Wheel 18"

Grinding Wheel Diameter, Standard 20"

Grinding Wheel Width, Standard 3"

Table Longitudinal Feeds, Range 0 to 100 FPM

Automatic Downfeed, Range .00025" to .003"

Grinding Wheel Motor 25 HP

Hydraulic System Motor 10 HP

Power Rapid Traverse Motor 1 HP

Lube Motor 1/3 HP

Floor Space Required, L x D 32' x 7'6"

Overall Height 8'6"

Weight, Approximately 50000 LBS

PRICE: F.O.B. OUR WAREHOUSE
Table working surface, w x l: 18" X 168"
Grinding width capacity, maximum: 18"
Grinding length capacity, maximum: 168"
Height under 20" grinding wheel: 18"
Grinding wheel diameter, standard: 20"
Grinding wheel width, standard: 3"
Table longitudinal feeds, range: 0 TO 100 FPM
Automatic downfeed, range: .00025" TO .003"
Grinding wheel motor: 25 HP
Hydraulic system motor: 10 HP
Power rapid traverse motor: 1 HP
Lube motor: 1/3 HP
Floor space required, l x d: 32' X 7'6"
Overall height: 8'6"
Weight, approximately: 50000 LBS
