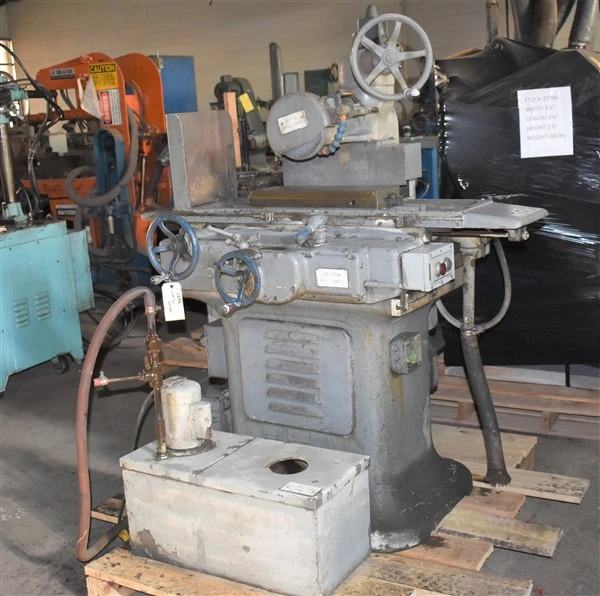

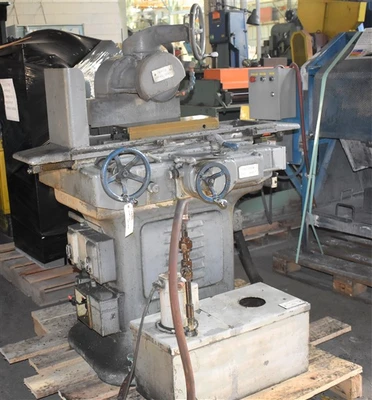

6" X 18" NORTON HYDRAULIC-FEED HORIZONTAL-SPINDLE SURFACE GRINDER w/MAGNETIC CHUCK - COOLANT

6" X 18" NORTON HYDRAULIC-FEED HORIZONTAL-SPINDLE SURFACE GRINDER
,Serial No H4537

EQUIPPED WITH:
6" X 18" FINE LINE PERMANENT-MAGNETIC CHUCK
MANUAL DOWN FEED
COOLANT TANK & PUMP

CATALOGUE SPECIFICATIONS:
Table Working Surface, W X L 6" X 18"
Grinding Width Capacity, Maximum 6"
Grinding Length Capacity, Maximum 18"
Height Under 8" Grinding Wheel 10-1/4"
Vertical Wheelhead, Movement 10-3/4"
Grinding Wheel Diameter, Standard 8"
Grinding Wheel Width, Range 1/2" to 3/4"
Grinding Wheel Hole Diameter 1-1/4"
Table Longitudinal Feeds, Range 0 TO 36 FPM
Grinding Wheel Spindle Motor 1-1/2 HP
Floor Space Required, L X D 6'1" X 4'3"
Weight, Approximately 2000 LBS

PRICE: F.O.B. OUR WAREHOUSE
Table working surface, w x l: 6" X 18"
Grinding width capacity, maximum: 6"
Grinding length capacity, maximum: 18"
Height under 8" grinding wheel: 10-1/4"
Vertical wheelhead, movement: 10-3/4"
Grinding wheel diameter, standard: 8"
Grinding wheel width, range: 1/2" TO 3/4"
Grinding wheel hole diameter: 1-1/4"
Table longitudinal feeds, range: 0 TO 36 FPM
Grinding wheel spindle motor: 1-1/2 HP
Floor space required, l x d: 6'1" X 4'3"
Weight, approximately: 2000 LBS
