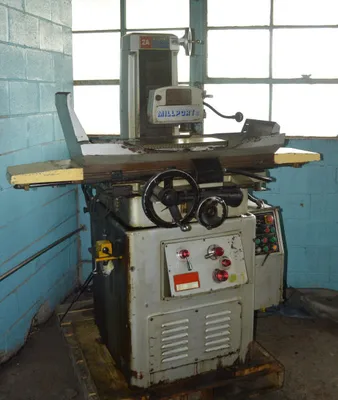

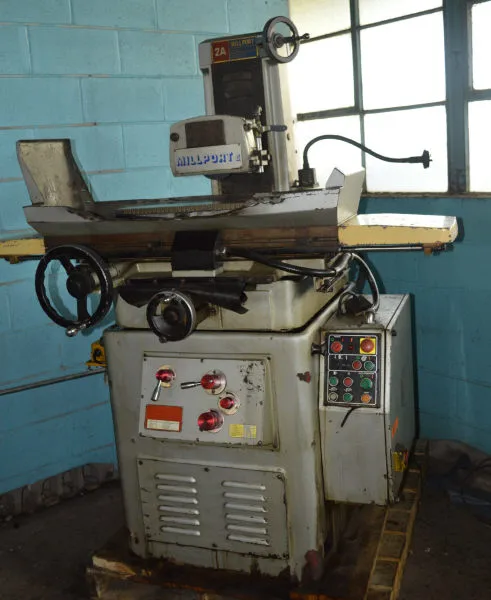

8" X 18" MILLPORT “2A20” HYDRAULIC-FEED HORIZONTAL-SPINDLE SURFACE GRINDER w/MAGNETIC CHUCK

8" X 18" MILLPORT HYDRAULIC-FEED
HORIZONTAL-SPINDLE SURFACE GRINDER
MODEL 2A20,

EQUIPPED WITH:
HYDRAULIC TABLE AND SADDLE MOVEMENT
8" X 18" KANETSU PERMANENT-MAGNETIC CHUCK

CATALOGUE SPECIFICATIONS:
Table Working Surface, W x L 8" x 18"
Grinding Width Capacity, Maximum 8"
Grinding Length Capacity, Maximum 18"
Height Under 7" Grinding Wheel 13.375"
Table Longitudinal Travel 21"
Table Cross Travel 9"
Grinding Wheel Diameter, Standard 7"
Grinding Wheel Width, Maximum 1"
Grinding Wheel Width, Standard 0.5"
Grinding Wheel Hole Diameter 1.25"
Table Longitudinal Feeds, Range 0 to 70 FPM
Table Cross In-Feeds, Range 0 to .375 IPM
Grinding Wheel Spindle Motor 1.5 HP
Hydraulic Pump Motor 2 HP
Electrical System 220-440/3/60
Floor Space Required, L x D 6' x 4'2"
Overall Height 5'10"

PRICE: F.O.B. OUR WAREHOUSE
Table working surface, w x l: 8" X 18"
Grinding width capacity, maximum: 8"
Grinding length capacity, maximum: 18"
Height under 7" grinding wheel: 13.375"
Table longitudinal travel: 21"
Table cross travel: 9"
Grinding wheel diameter, standard: 7"
Grinding wheel width, maximum: 1"
Grinding wheel width, standard: 0.5"
Grinding wheel hole diameter: 1.25"
Table longitudinal feeds, range: 0 TO 70 FPM
Table cross in-feeds, range: 0 TO .375 IPM
Grinding wheel spindle motor: 1.5 HP
Hydraulic pump motor: 2 HP
Electrical system: 220-440/3/60
Floor space required, l x d: 6' X 4'2"
Overall height: 5'10"
