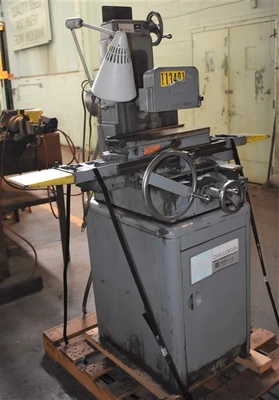

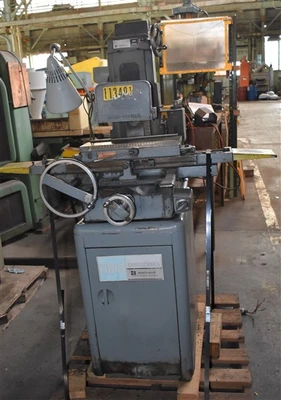

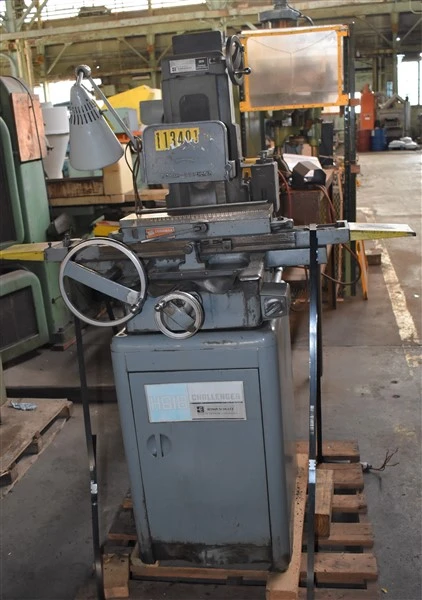

6" X 18" BOYAR SCHULTZ "H618 CHALLENGER" HAND-FEED HORIZONTAL-SPINDLE SURFACE GRINDER w/MAGNETIC CHUCK

6" X 18" BOYAR SCHULTZ "CHALLENGER" HAND-FEED
HORIZONTAL-SPINDLE SURFACE GRINDER
SERIAL NO. C-2009, MODEL H618, SERIES CHALLENGER

EQUIPPED WITH:
6" X 18" CERAMAX PERMANENT MAGNETIC CHUCK
1 HP DIRECT DRIVE SPINDLE MOTOR

CATALOG SPECIFICATIONS:
Table Working Surface, W x L 5-5/8" x 18"
Height Under 7" Grinding Wheel:
To Table 12-1/8"
To Chuck 9-1/2"
Grinding Wheel, Maximum Diameter 7"
Grinding Wheel, Minimum Diameter 6"
Grinding Wheel, Widths 3/16" to 5/8"
Grinding Wheel, Hole Diameter 1-1/4"
Longitudinal Table Travel 19-7/8"
Cross Table Travel 6-13/16"
Handwheel Graduations, Downfeed .0005"
Handwheel Graduations, Crossfeed .001"
Grinding Wheel Spindle Motor 1 HP/3450 RPM
Electrical System 208-220-440/3/60
Overall Dimensions, L x D 56" x 38"
Overall Height 62"
Weight, Approximately 775 LBS.

PRICE: F.O.B. OUR WAREHOUSE
Table working surface, w x l: 5-5/8" X 18"
To table: 12-1/8"
To chuck: 9-1/2"
Grinding wheel, maximum diameter: 7"
Grinding wheel, minimum diameter: 6"
Grinding wheel, widths: 3/16" TO 5/8"
Grinding wheel, hole diameter: 1-1/4"
Longitudinal table travel: 19-7/8"
Cross table travel: 6-13/16"
Handwheel graduations, downfeed: .0005"
Handwheel graduations, crossfeed: .001"
Grinding wheel spindle motor: 1 HP/3450 RPM
Electrical system: 208-220-440/3/60
Overall dimensions, l x d: 56" X 38"
Overall height: 62"
Weight, approximately: 775 LBS.
