20" X 240" THOMPSON "CH" HEAVY-DUTY HYDRAULIC HORIZONTAL-SPINDLE SURFACE GRINDER w/ELECTRO-MAGNETIC CHUCKS & IDF
Have one to sell?
$12,500.00 USD
ConditionUsed
1 available

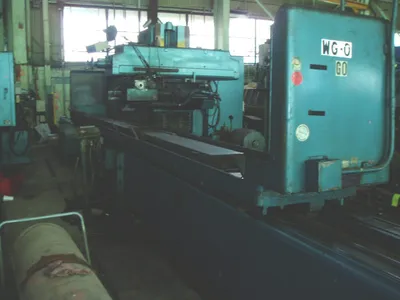

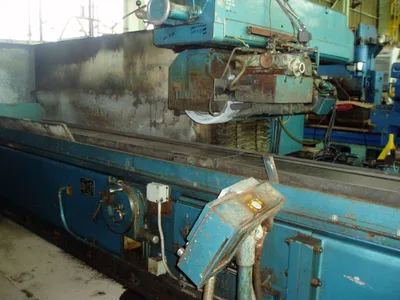

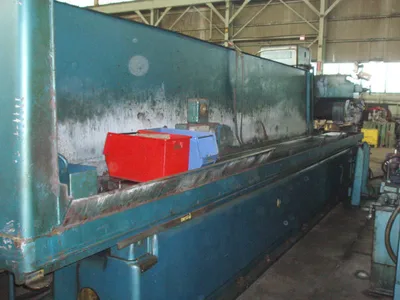

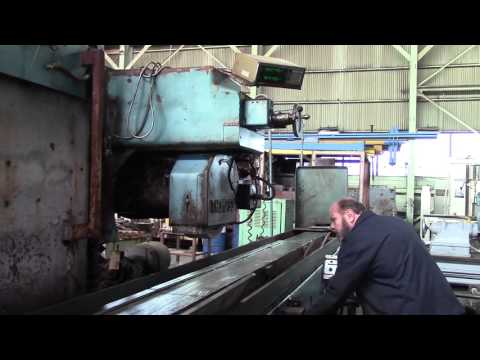

20" X 240" THOMPSON "CH" HEAVY-DUTY HYDRAULIC HORIZONTAL-SPINDLE SURFACE GRINDER
NEW 1966, SERIAL NO. 20CH667243, MODEL CH
(4) 12" X 60" (240") ELECTRO-MAGNETIC CHUCKS
W/NEUTROFIER
TRAVATROL ELECTONIC CROSS FEED REVERSAL
INCREMENTAL POWER DOWN FEED W/MICOMETER BACK-UP STOP
HEAVIEST SQUARE TYPE SADDLE CONSTRUCTION
HYDRAULIC HEAD-MOUNTED WHEEL DRESSER
Table Working Surface, W x L 20" x 240"
Height Under 20" Grinding Wheel 28"
Longitudinal Table Travel, Maximum 268"
Grinding Wheel, Maximum Diameter 20"
Grinding Wheel, Widths 6"
Grinding, Hole Diameter 12"
Grinding Wheel Speed, Feet Per Minute 6000 FPM
Incremental Down Feeds, Range .0002 to .004 IPR
Longitudinal Table Feeds, Range 10 to 100 FPM
Power Rapid Table Traverse 240 IPM
Grinding Wheel Spindle Motor 30 HP
Overall Dimensions, L x D 44' x 8'8"
Weight, Approximately 65000 LBS.
PRICE: F.O.B. OUR WAREHOUSE
Table working surface, w x l: 20" X 240"
Height under 20" grinding wheel: 28"
Longitudinal table travel, maximum: 268"
Grinding wheel, maximum diameter: 20"
Grinding wheel, widths: 6"
Grinding, hole diameter: 12"
Grinding wheel speed, feet per minute: 6000 FPM
Incremental down feeds, range: .0002 TO .004 IPR
Longitudinal table feeds, range: 10 TO 100 FPM
Power rapid table traverse: 240 IPM
Grinding wheel spindle motor: 30 HP
Overall dimensions, l x d: 44' X 8'8"
Weight, approximately: 65000 LBS.
