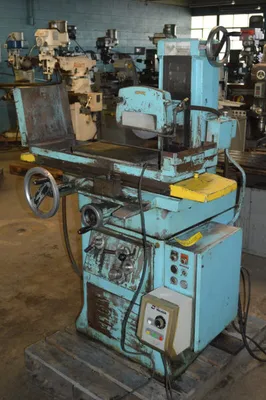

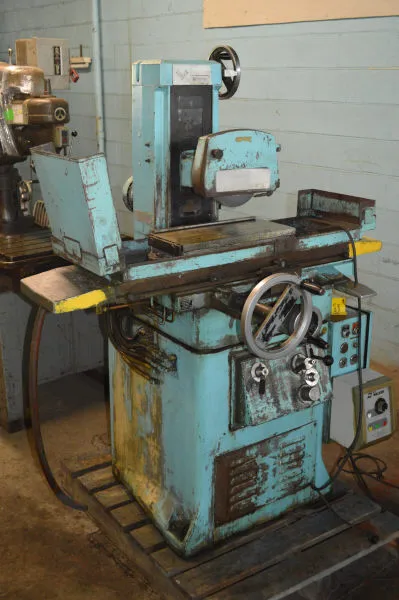

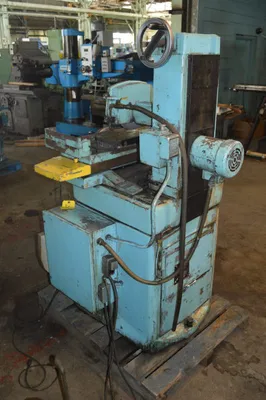

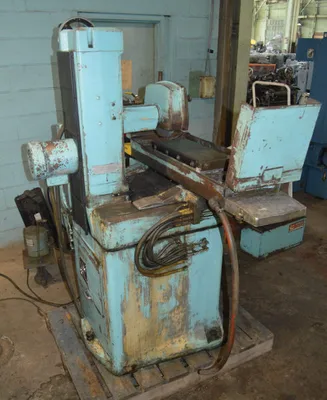

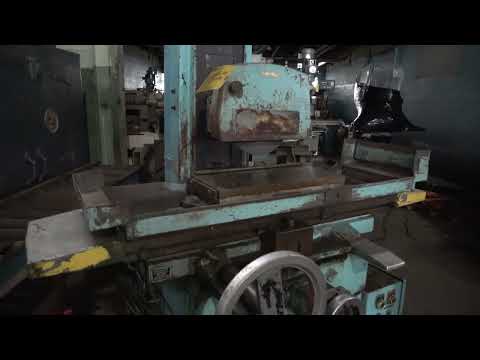

8" X 18" BOYAR-SCHULTZ "2A818 HUSK-E-LINE" AUTOMATIC HYDRAULIC HORIZONTAL SPINDLE SURFACE GRINDER w/WALKER ELECTRO-MAGNETIC CHUCK

Table Working Surface, W x L 8" x 18"

Grinding Width Capacity, Maximum 8"

Grinding Length Capacity, Maximum 18"

Height Under 7" Grinding Wheel To Table 13.5"

Table Longitudinal Travel 21"

Table Cross Travel 9.25"

Table Longitudinal Feeds, Range 0 to 70 FPM

Table Crossfeeds, Range 0 to 3/8 IPR

Grinding Wheel Diameter, Standard 7"

Grinding Wheel Width, Standard 0.625"

Grinding Wheel Hole Diameter 3"

Downfeed Handwheel Graduations .00001"

Crossfeed Handwheel Graduations .001"

Grinding Wheel Spindle Motor 1 HP/3450 RPM

Electrical System 208-220-440/3/60

Floor Space Required, W x D 6' x 4'2"

Weight, Approximately 2300 LBS

PRICE: F.O.B. OUR WAREHOUSE
Table working surface, w x l: 8" X 18"
Grinding width capacity, maximum: 8"
Grinding length capacity, maximum: 18"
Height under 7" grinding wheel to table: 13.5"
Table longitudinal travel: 21"
Table cross travel: 9.25"
Table longitudinal feeds, range: 0 TO 70 FPM
Table crossfeeds, range: 0 TO 3/8 IPR
Grinding wheel diameter, standard: 7"
Grinding wheel width, standard: 0.625"
Grinding wheel hole diameter: 3"
Downfeed handwheel graduations: .00001"
Crossfeed handwheel graduations: .001"
Grinding wheel spindle motor: 1 HP/3450 RPM
Electrical system: 208-220-440/3/60
Floor space required, w x d: 6' X 4'2"
Weight, approximately: 2300 LBS
